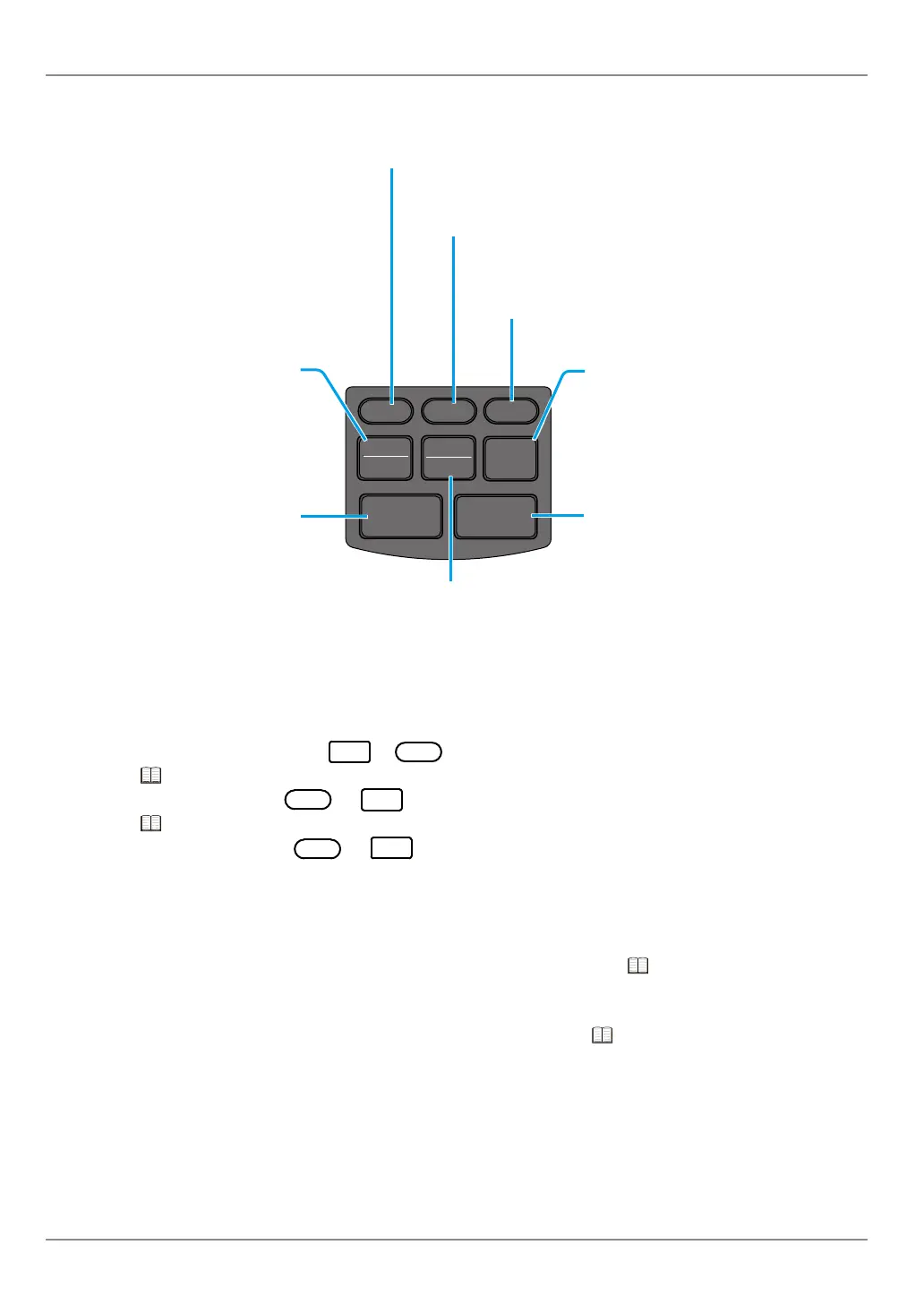

1.3.2 Names and Functions of Operation Key
[POWER] key
Press when switching on/off the power.
Press when deleting all the measurement data.
Press when switching on/off the printing
function of measurement data and log data.
[CANCEL] key
[DATA] key
Press to cancel the latest input mea-
surement data.
Hold down for more than 10 seconds
to delete the measurement data/log
data and initialize the date and time by
hardware reset.
Press to input the data from the
measuring instrument.
[STAT. | OUT LOG] key
Press to perform the statistical calculation based on all the
input measurement data, print the calculation results and
generate the histogram.
Hold down to print the log data and output it to USB.
[FEED] key
While being pressed
the printer paper is
fed.
[TOL. | REC/STOP] key
Press to enter or exit the setting
mode for the limit data (upper/
lower specication limit value).
Hold down to start/stop the data
logging.
POWER
TOL.
REC/STOP
PRINTER
CLEAR
STAT.
OUT LOG
CANCEL
DATA
FEED
[PRINTER] key
[CLEAR] key
z
When two key operations are required
y Parameter Setup Mode:
DATA
+
POWER
(effective only when turning on the power)
( "5.2 Various Parameter Settings and Setting Items" on page 63)
y Timer Input Mode:
PRINTER
+
FEED
( "3.6.1 Timer Input of the Measurement Data" on page 43)
y Print date and time:
PRINTER
+
DATA
Tips
The operation will differ from the explanations above when the state falls under the items below.
• When entering in parameter setup mode
For further details on the key operation in parameter setup mode, refer to "5.2 Various Pa-
rameter Settings and Setting Items" on page 63.
• When WORK MODE is selected to "MODE 3" in parameter setup mode
For further details on the key operation with MODE3 setting, refer to
"3.3 Printing the Data
for Xbar-R Control Chart (MODE3)" on page 31.
