Mitutoyo DP-1VA LOGGER User Manual

14
2 Basic Operations
No. 99MAM029A
2.1.5 Connection of a Measuring Instrument with Digimatic
Output
Connect the Digimatic connection cable (option) to the product according to the following
procedure.
1
Prepare.
Prepare the measuring instrument with Digimatic output to connect and the Digimatic
connection cable.
For further details on the Digimatic connection cable, refer to "7.4.1 Digimatic Con-
nection Cable List" on page 79.
2
Check the power.
Check whether the power of the product is off.
3
Connect the Digimatic connection cable.

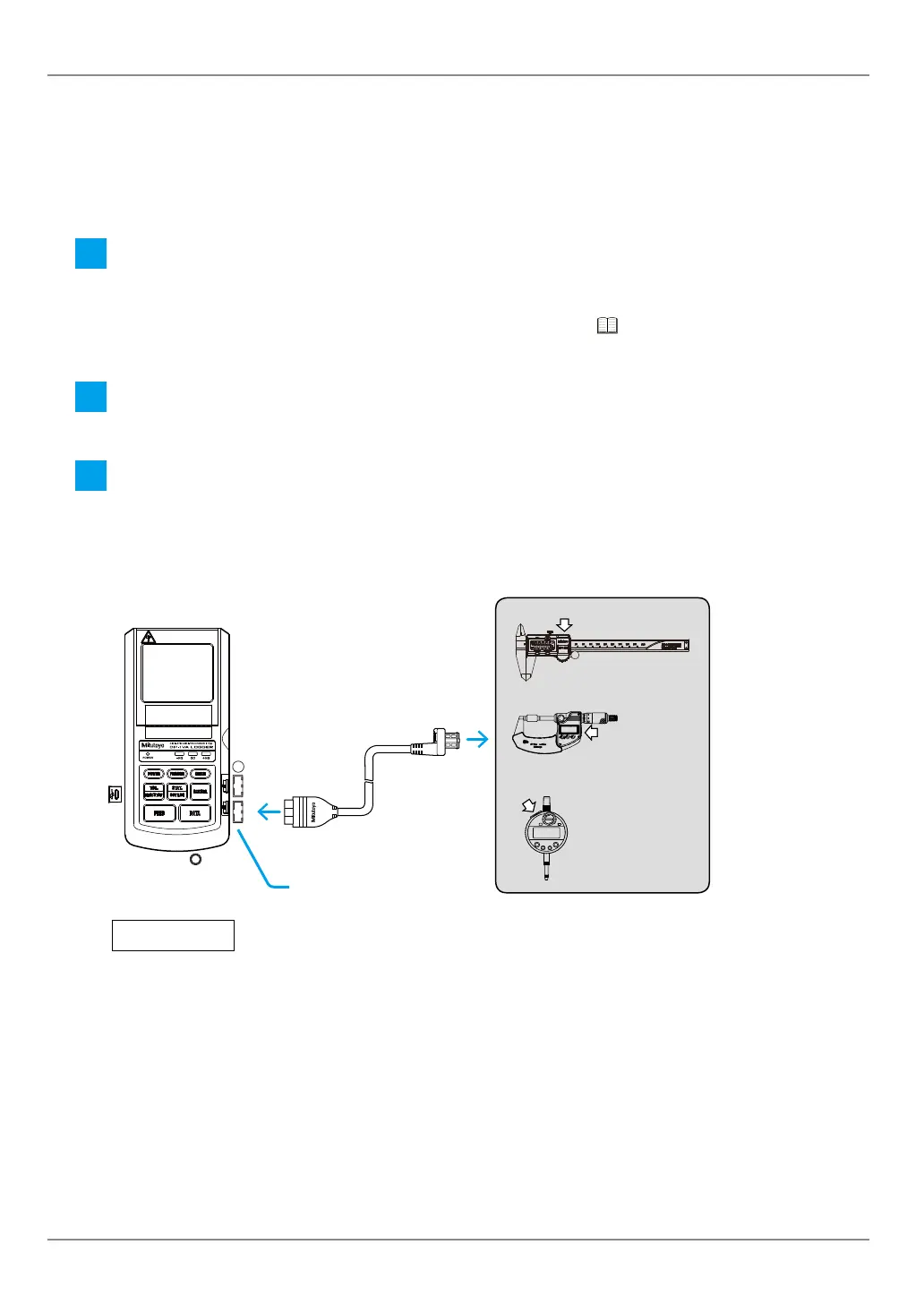

Connect one of the connectors of the Digimatic connection cable to the input connector
(INPUT) on the right side of the product, and connect another one to the output connec-
tor of the measuring instrument with the Digimatic output side.
INPUT
OUTPUT
DATA
IN OUT
Input connector (INPUT)
Digimatic connection cable
(option)
Digimatic Caliper
Digimatic Micrometer
Digimatic Indicator
Measuring instrument with Digimatic output
NOTICE
Do not use the product in a dusty place. If used in a dusty place, it may cause failure due to dust
penetrating into the product.
Tips
• Pay attention to the connector directions when inserting. DP-1VA LOGGER side of the connec-
tion cable shall be connected to ensure that the Mitutoyo logo mark on the connector is facing
up.
• The connector shall be removed/inserted straight in the connector to avoid excessive burden to
the product connector portion
.
