7.4
Options

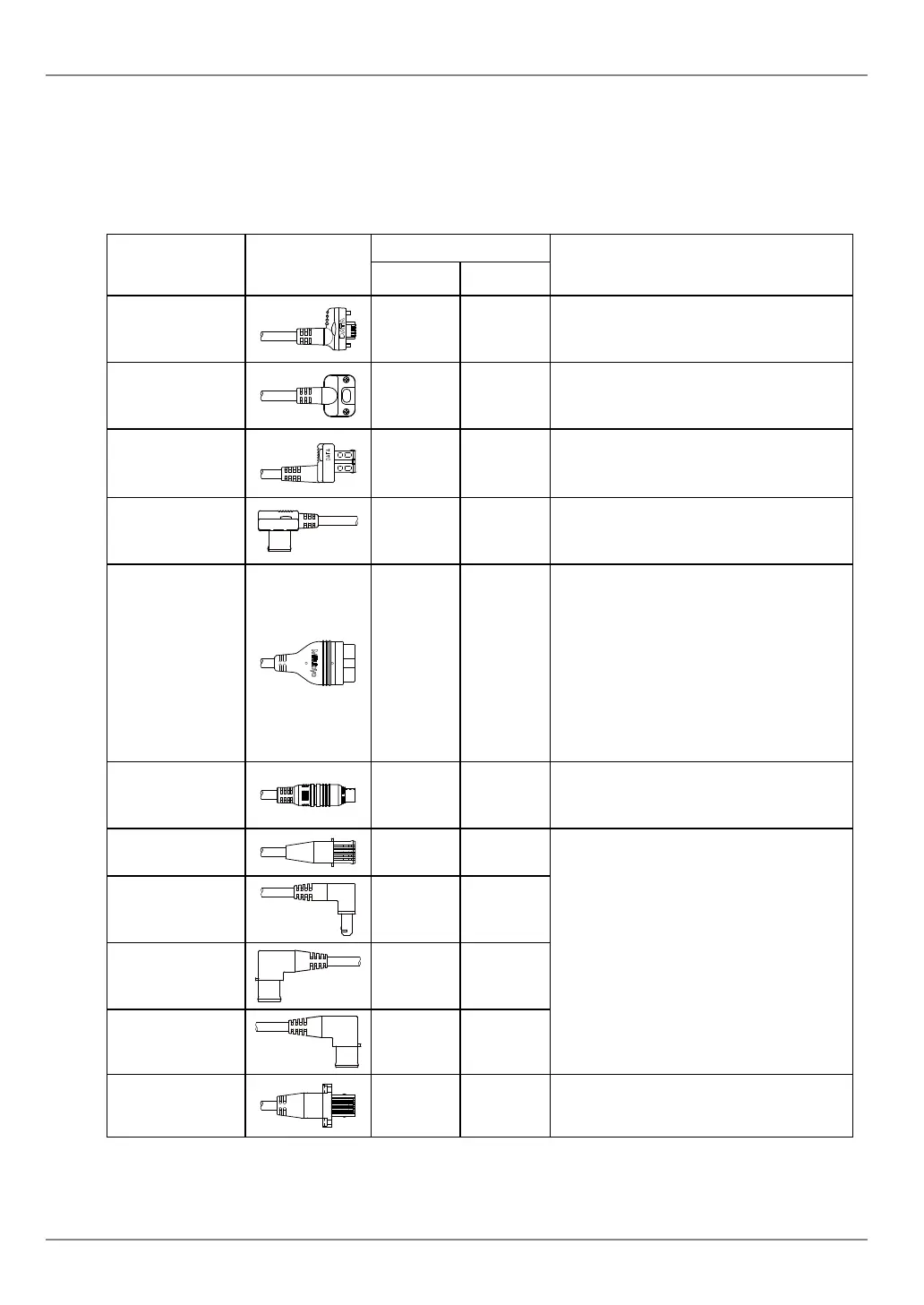

7.4.1 Digimatic Connection Cable List
Main Digimatic connection cables are shown below. For further details on the measuring
instruments specications, refer to our General Catalog.
Connector type
Measuring instru-
ment side
connector shapes
Part No.
Main corresponding measuring
instruments
1 m 2 m
Waterproof
type with output
button
05CZA624 05CZA625
ABS Coolant Proof Caliper CD-
P_M/-30PMX
Length Measuring Unit SD-G
Waterproof
type with output
button
05CZA662 05CZA663
Digimatic Micrometer MDC-MX/MDH-25M
QuantuMike MDE-MX
Digimatic Holtest HTD-R
Straight type with
output button
959149 959150
ABS Digimatic Caliper CD-AX/CD-C
Length Measuring Unit SD-AX/
SD-D/SDV-D
L type with out-
put switch (cable
outlet is right)
04AZB512 04AZB513
Digimatic Micrometer MDC-MB/
OMC-MB/PMU300-MB
Flat 10-pin type
936937 965014
Digimatic Indicator ID-H/-F
Height Gauge QM-Height QMH
Digital MU-Checker M-561
Laser Scan Micrometer LSM-9506
Linear Gauge Counter EC-101D/EB/EH
Litematic VL-B/S-B
Portable Surface Roughness Tester
SJ-210/310/410
Hardness Testing Machine HM-210/220
Round 6-pin type
937387 965013
Digimatic Micrometer MDQ-M/
CLM1-QM/PDM-QM
Portable Hardness Gauge HH-411
Flat
straight
type
905338 905409
ABS Digimatic Indicator ID-CX/ID-CAX/
ID-CGX/ID-CRX/ID-SX/ID-SS/ID-U
Digimatic Height Gauge HDM-AX/
HD-AX/HDS-HC/HDS-C
ABS Borematic SBM-CX
Digimatic Cylinder Gauge CG-D
Length Measuring Unit SD-E/
SDV-E/SD-F/SDV-F
Hardness Testing Machine H-300
Flat L-shape
(cable outlet is
back)
905689 905690
Flat L-shape
(cable outlet is
right)
905691 905692
Flat L-shape
(cable outlet is left)
905693 905694
Flat straight wa-
ter-proof type
21EAA194 21EA A190
ABS Digimatic Indicator ID-N/-B
Tips
The designs and specications of Digimatic connection cables are subject to partial change without
prior notice for product improvement. We appreciate your understanding.
