2.1.6 Connection of the Foot Switch (Option)
Data can be input without pressing
DATA
by using an optional foot switch (Parts No.
937179T, cable length: 2 m).

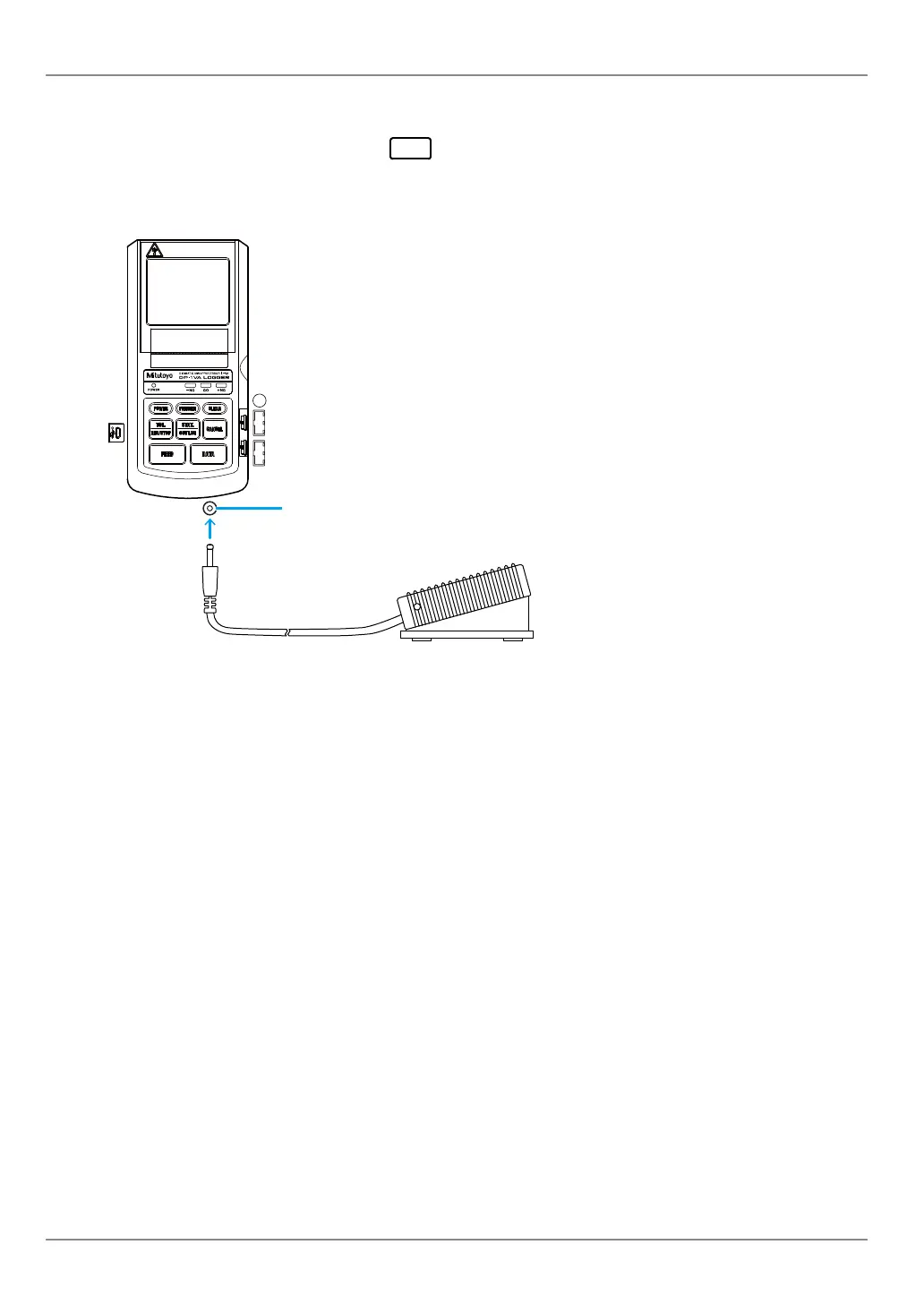

Connect the foot switch to the foot switch connector (EXT.P) on the lower side of the
product.
Connector for foot switch (EXT.P)
INPUT OUTPUT ADAPTER
IN OUT
Tips
The data can be input while using both hands for measurement when the foot switch is used.
