4 Output
No. 99MAM029A
4.1.2 USB Output Operation of the Measurement Data
1
Open Microsoft Excel or Windows software such as Notepad or Wordpad on the PC.
2
Connect a measuring instrument with Digimatic output to the product.
For further details on the connection method of measuring instrument with Digimatic output,
refer to "2.2 Measuring with a Measuring Instrument with Digimatic Output and Printing"
on page 16.
3
Press
DATA
to input the measurement data.
» Each time
DATA
is pressed, they are
input to the product and output by USB
to the PC.
» As shown in the right gure, it is import-
ed and displayed by the software.

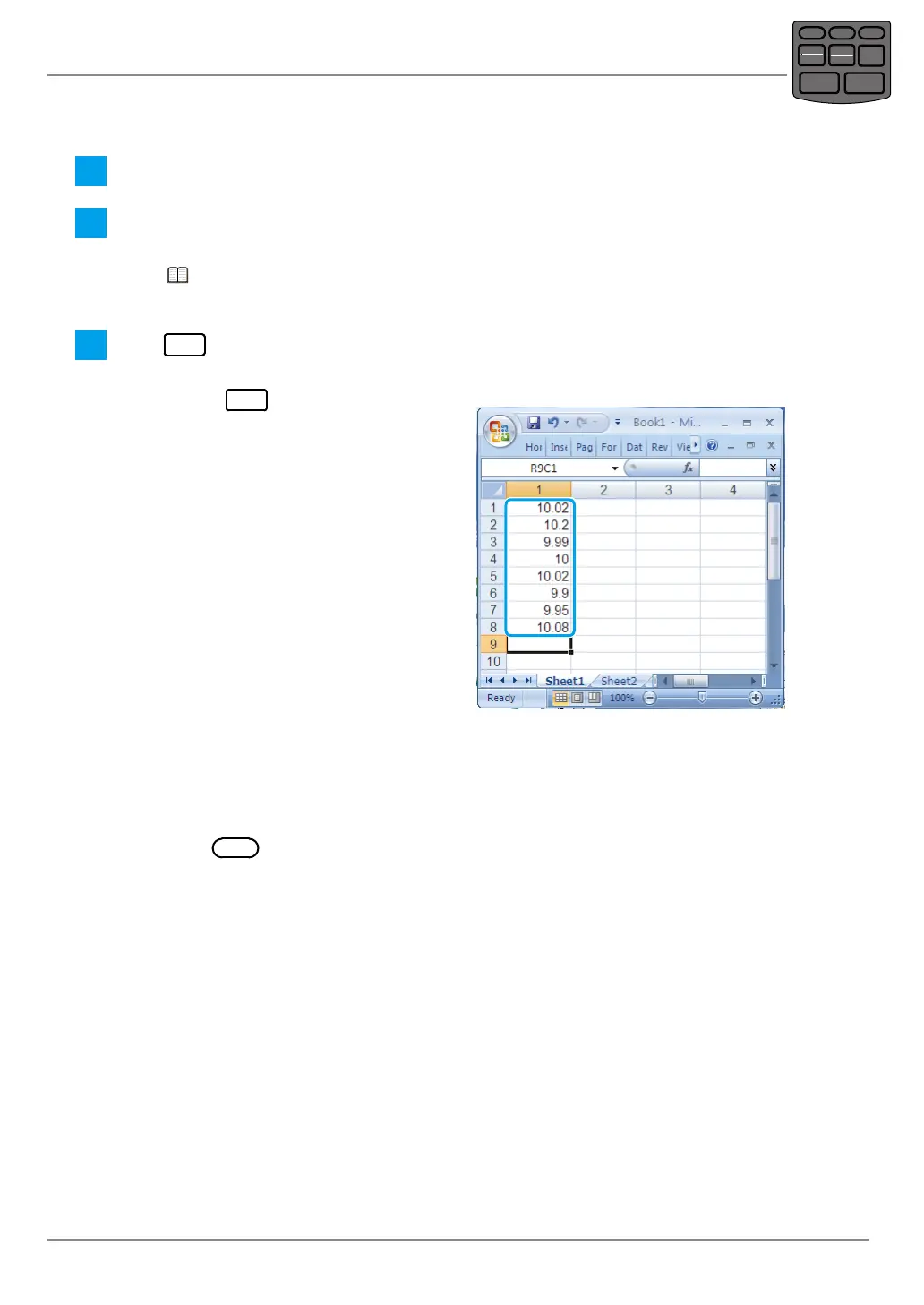

In case of Microsoft Excel
Tips
• The measurement data can be input by pressing the [DATA] button of a measuring instrument
with Digimatic output or with the foot switch (option) operation.
• When the measurement data is input, they are printed at the same time they are transmitted to the
PC. Press
PRINTER
to turn the printing off. "Û PRINTER OFF Û" is printed.
• In the case of using as an HID (Human Interface Device), the data input location on the software
is the current cell or the cursor position.
POWER
TOL.
REC/STOP
PRINTER
CLEAR
STAT.
OUT LOG
CANCEL
DATA
FEED
