39
3 Advanced Operations and Useful Functions
No. 99MAM029A
3.5
Inputting and Printing of the KA Counter
Data with RS-232C
The operation procedure to print the display data of a KA Counter connecting a KA
Counter with a RS-232C counter cable (option) is explained.
Tips
• The KA Counter is a counter for linear scale and also used as a counter for projectors such as
PV-5110 and PH-3515F.
• Parameter setting or change in parameter setup mode is required beforehand. The display data
of the KA Counter can be printed only when SYSTEM MODE is "MP mode" and WORK MODE
is "MODE0" or "MODE1".
Set the data input object axes (INPUT AXIS) and
the calculation object axes (CUL) as needed.

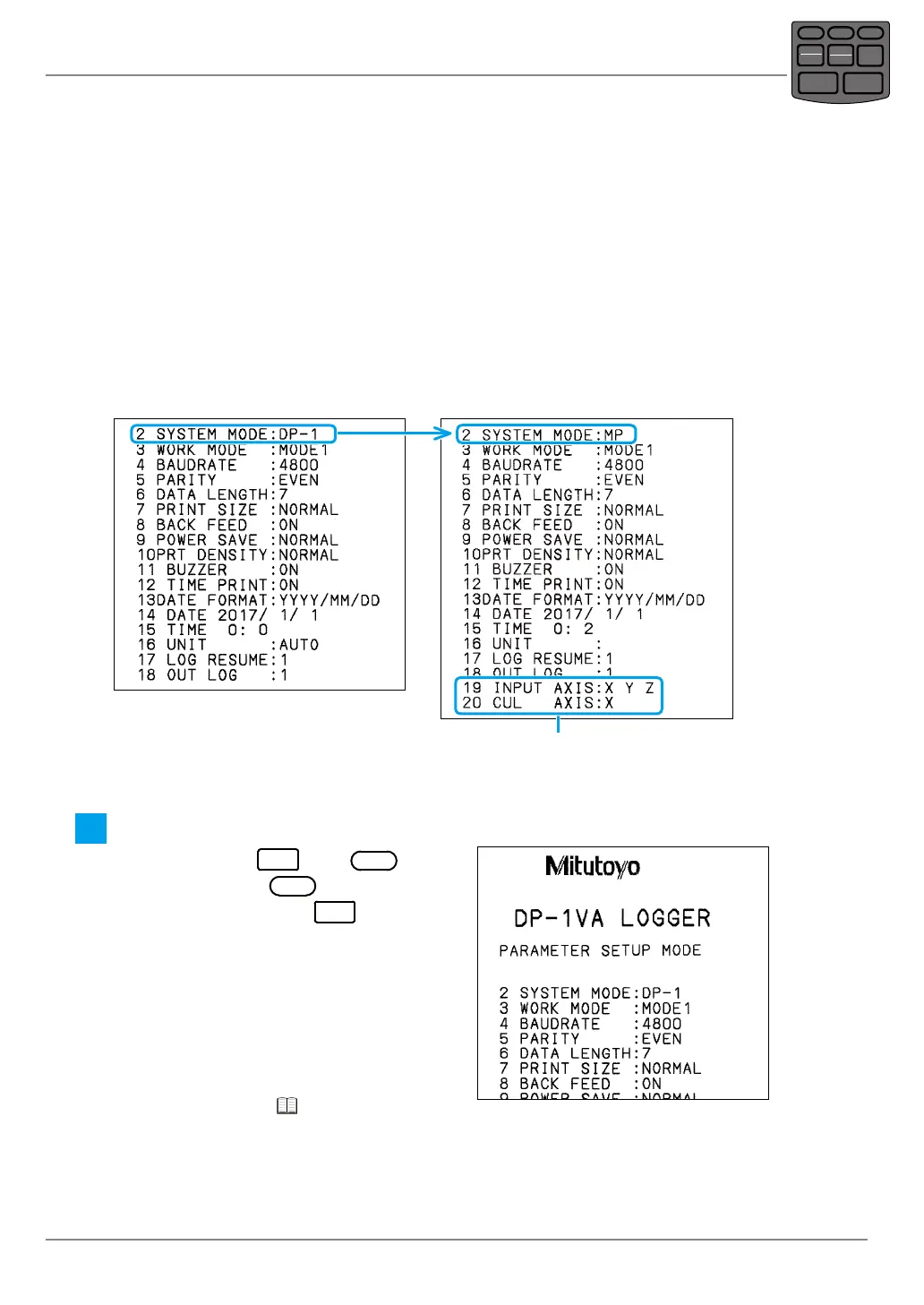

Initial setting of the parameters
Change to MP mode
1
Set the parameters.
1
While pressing
DATA
press
POWER
,
then just release
POWER
, when the print-
ing starts, then release
DATA
.
» The power is turned on and enters the
parameter setup mode.
Tips
The procedure to print the measurement
data with "MODE1" of the initial setting is
explained here. When printing only mea-
surement data and tolerance judgment,
change to "MODE0" ( "3.1 Printing only
Measurement Data and Tolerance Judgment
Results (MODE0)" on page 27.)
POWER
TOL.
REC/STOP
PRINTER
CLEAR
STAT.
OUT LOG
CANCEL
DATA
FEED
To Next Page
