58
4 Output
No. 99MAM029A
4.3
Tolerance Judgment Result Output
The operation to output the tolerance judgment result connecting a GO/±NG judgment
cable (option) to the product is explained.
4.3.1 Connection of a GO/±NG Judgment Cable (Option)

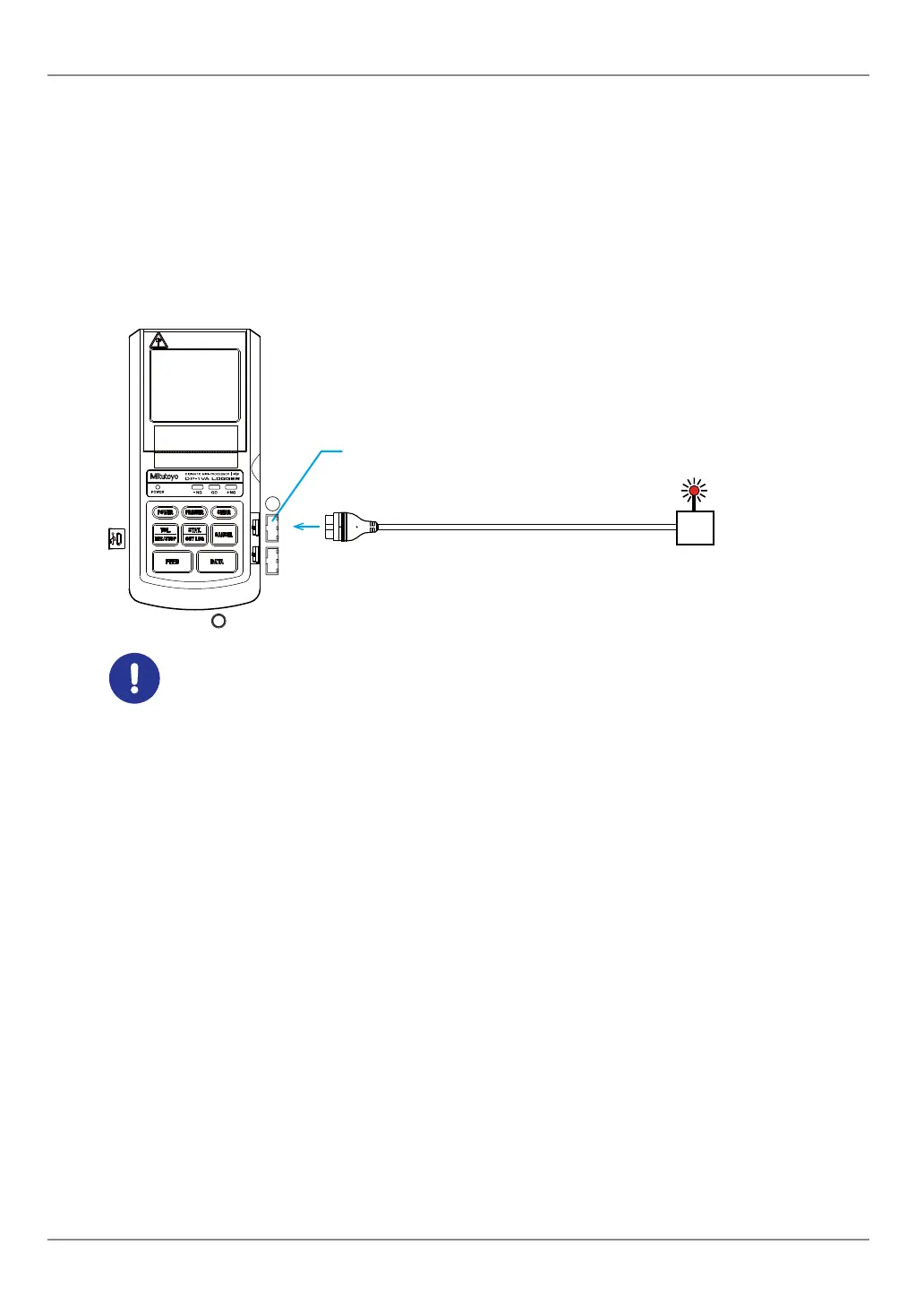

Connect the GO/±NG judgment cable (Parts No. 965516, digimatic 10 pin terminal -
loose wires, cable length: 2 m) connected to the tolerance judgment discrimination equip-
ment to the product (connector of OUTPUT) as shown in the gure below.
INPUT OUTPUT ADAPTER
IN OUT
Output connector
NG lamp
or buzzer
GO/±NG judgment cable (option)
Judgment
discrimination
equipment for
+NG/GO/-NG
Removal/insertion of the cables shall be done while the power is turned off.
Tips
The GO/±NG judgment cable and RS-232C conversion cable (option) cannot be used simultane-
ously.

Tolerance judgment result output specication
When a GO/±NG judgment cable (option), is connected and the limit data are set in
MODE0, MODE1 or MODE2, output is performed through an open drain.
V
DSS (max)
= 60 V
I
D (max)
= 250 mA
