Mitutoyo DP-1VA LOGGER User Manual

78
7Specications
No. 99MAM029A

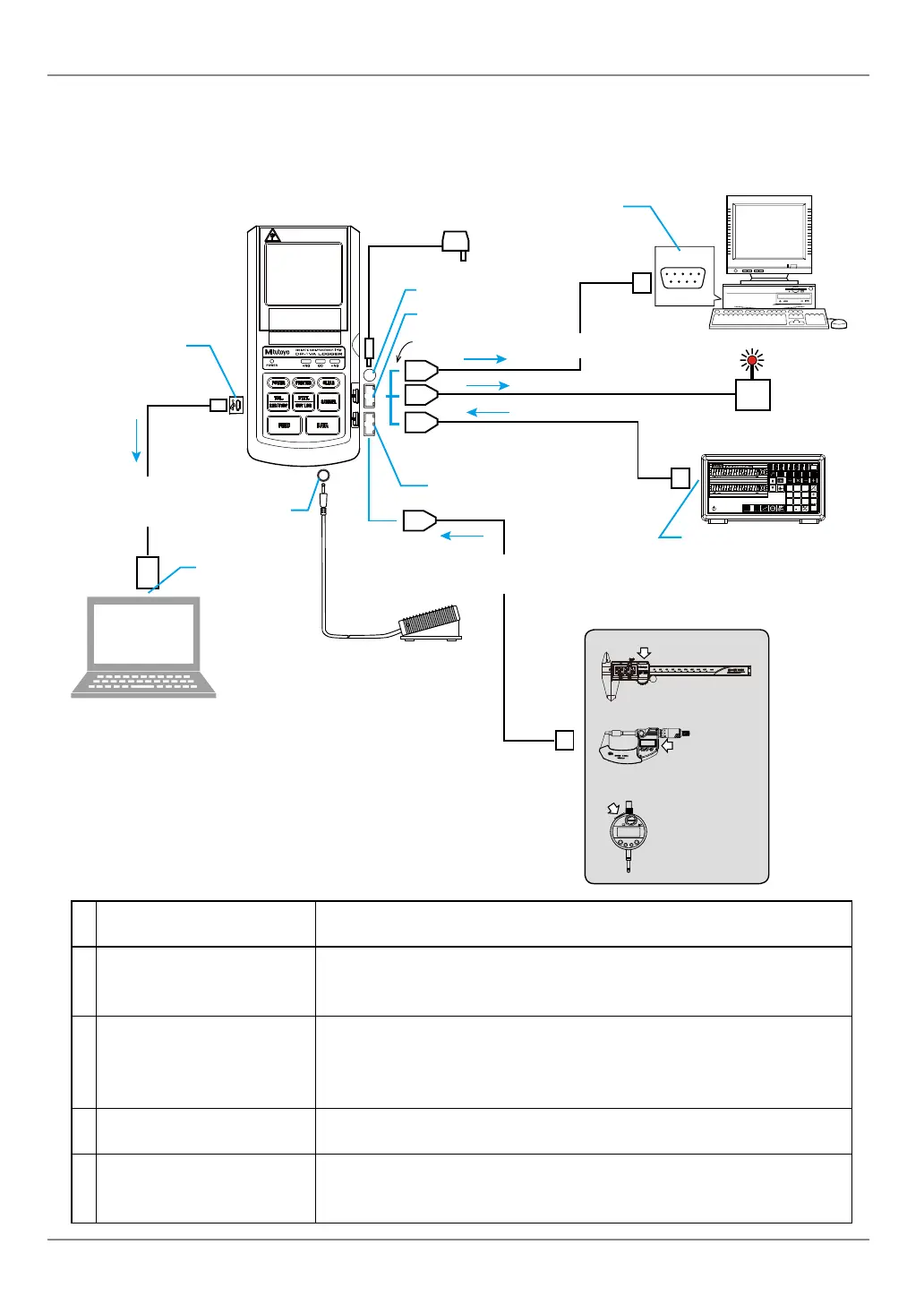

7.3
Connection Diagram with Various Optional
Instruments
D-sub 9 pin
RS-232C
INPUT OUTPUT ADAPTER
PC
PC
A
B
C
C
D
E
IN OUT
ARC
SIN COS
π
UNIT
ABS
7 8 9
4 5 6
1 2 3
0
TAN
MODE
Digimatic Mini-Processor
DP-1VA LOGGER
RS-232C code out unit
(for KA-200 Counter)
Digimatic connection cable
(refer to next page)
Digimatic Caliper
KA Counter
Foot switch
AC adapter
any one
USB port
USB micro
connector
USB cable
(commercial-
release)
Connector for
foot switch
(EXT.P)
RS-232C
port
Digimatic Micrometer
Digimatic
Indicator
Output connector (OUTPUT)
DC jack (ADAPTER)
Input connector (INPUT)
NG lamp
or buzzer
GO/±NG judgment cable
RS-232C counter cable
RS-232C conversion cable
Measuring instrument with Digimatic output
* Each connection cable is optional. They are not included.
A Measurement data input
Connect a measuring instrument with Digimatic output and the
input connector (INPUT) with the Digimatic connection cable.
B
Measurement data input
of KA Counter
Connect the RS-232C port of the KA Counter and the output con-
nector (OUTPUT) with an optional dedicated RS-232C counter
cable (Parts No. 09EAA094).
C
Measurement data
output
y Connect the PC USB port and USB micro connector with a
store-bought USB cable.
y Connect the PC RS-232C connector and the output connector
with the RS-232C conversion cable (Parts No. 09EAA084).
D
Input measurement data
with foot switch operation
Connect the foot switch (Parts No. 937179T) cable to the foot
switch connector (EXT.P).
E
Tolerance judgment
result output
Connect the output connector (OUTPUT) and the tolerance judg-
ment discrimination equipment etc. with a GO/±NG judgment
cable (Parts No. 965516).
