5 Function Settings
No. 99MAM029A
5
Function Settings
Function setting method for the product is explained.
5.1
Various SYSTEM/WORK MODE and Print
Contents/Output to PC
The product shall be used for switching the SYSTEM MODE and WORK MODE with
parameter settings in accordance with objectives.
5.1.1 SYSTEM/WORK MODE Selection and Print Contents

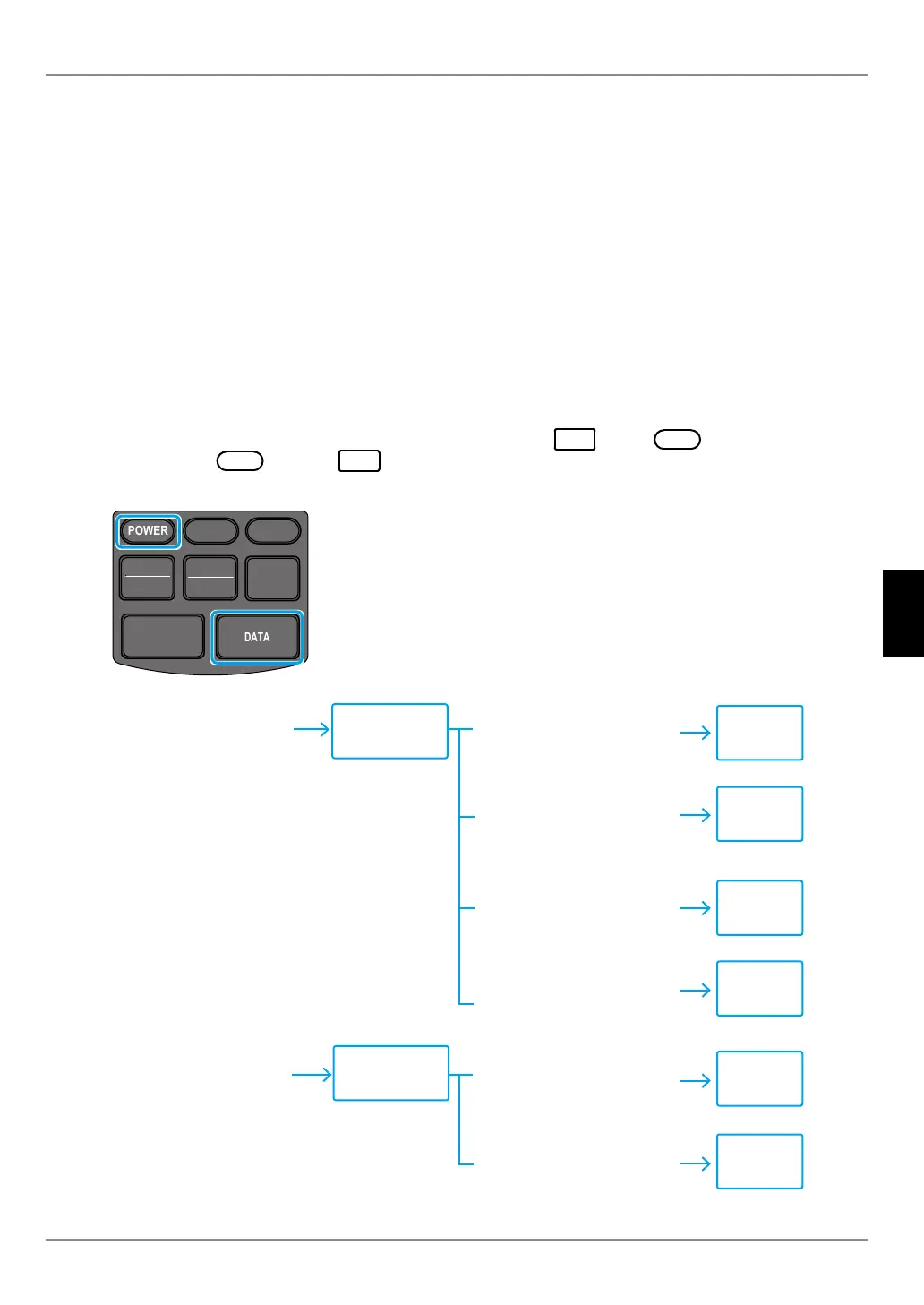

Enter "PARAMETER SETUP MODE" by while pressing
DATA
press
POWER
, and after
releasing the
POWER
release
DATA
with the power turned off.
Switch SYSTEM MODE and WORK MODE in this mode.
POWER
TOL.
REC/STOP
PRINTER
CLEAR
STAT.
OUT LOG
CANCEL
DATA
FEED
<SYSTEM MODE> <WORK MODE>
(Initial setting)
(Initial setting)
MODE0
MODE1
MODE2
MODE3
MODE0
MODE1
DP-1 mode
MP mode
(Initial setting)
Printing measurement data
and tolerance judgment results
Printing measurement data,
tolerance judgment results, sta
-
tistical analysis and histogram
Printing measurement data,
tolerance judgment results,
statistical analysis, histogram,
D chart
Printing measurement data,
and calculation result to gener
-
ate the X¯-R control chart
Printing measurement data
and tolerance judgment results
Printing measurement data,
tolerance judgment results, sta
-
tistical analysis and histogram
Connecting the measuring
instrument with Digimatic
output to use
Connecting the RS-232C
output of KA Counter to
use
