2 Basic Operations
No. 99MAM029A
2.2
Measuring with a Measuring Instrument
with Digimatic Output and Printing
The procedure to print the measurement data, after connecting to Digimatic Caliper, with
MODE1 (initial setting at the time of purchase) in DP-1 mode is explained.
Tips
The various mode settings, other than the initial settings at the time of purchase, are explained in
"5.1 Various SYSTEM/WORK MODE and Print Contents/Output to PC" on page 61.

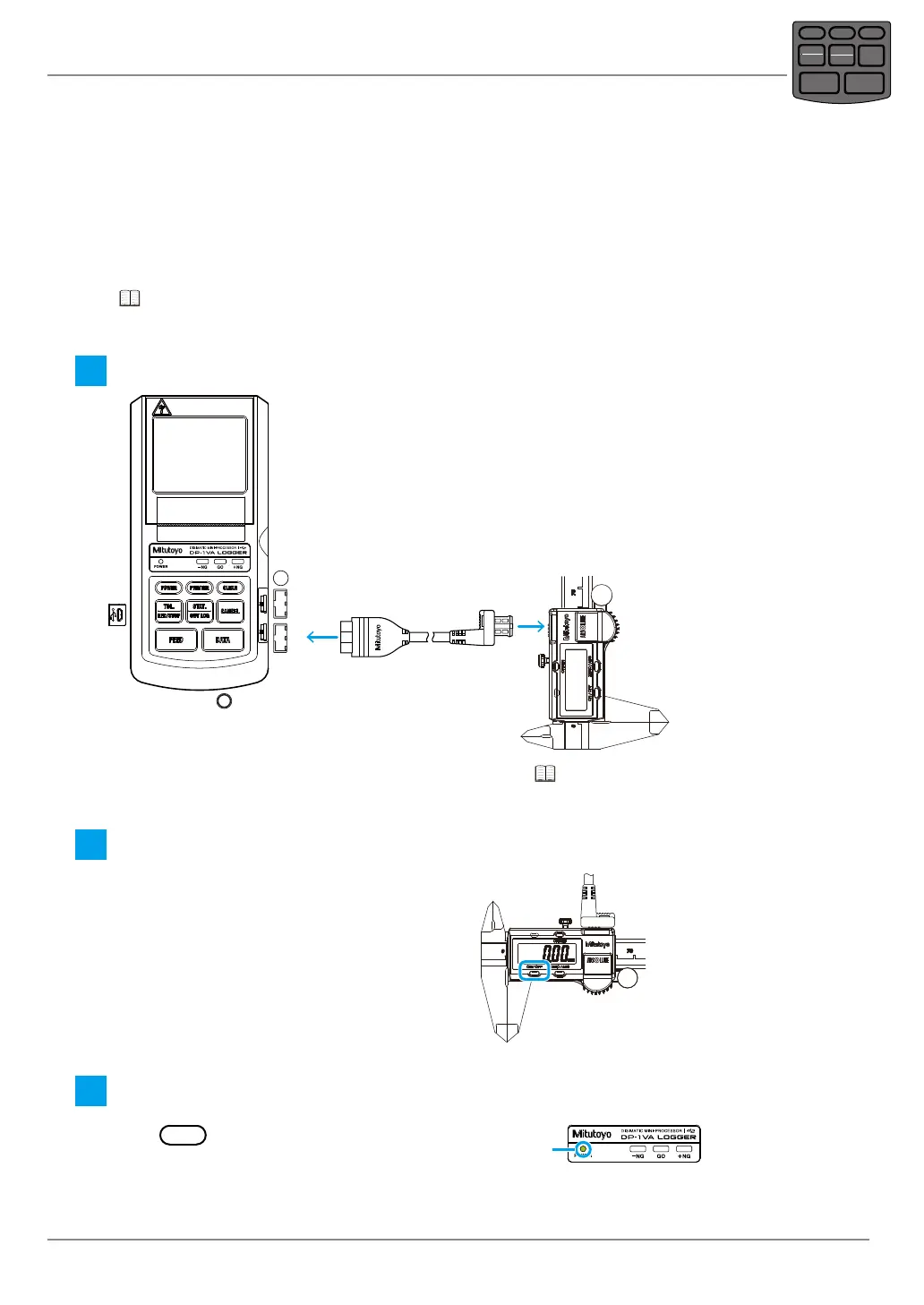

1
Connect the Digimatic Caliper to the product via a Digimatic connection cable.
Digimatic Caliper
Digimatic connection cable
DATA
INPUT
OUTPUT
IN OUT
For further details on the connection method, refer to "2.1.5 Connection of a Measur-
ing Instrument with Digimatic Output" on page 14.
2
Turn on the Digimatic Caliper power.
Press the [ON/OFF] button of the
Digimatic Caliper.
» A numeric value is displayed on the LCD
display portion of the Digimatic Caliper.
DATA
3
Turn on the power of the product.
Press
POWER
, and then release a nger
from the key.
» The power LED is lit and then the printer
paper is fed.
Light is on
POWER
TOL.
REC/STOP
PRINTER
CLEAR
STAT.
OUT LOG
CANCEL
DATA
FEED
