1 Overview
No. 99MBC122A
1.2

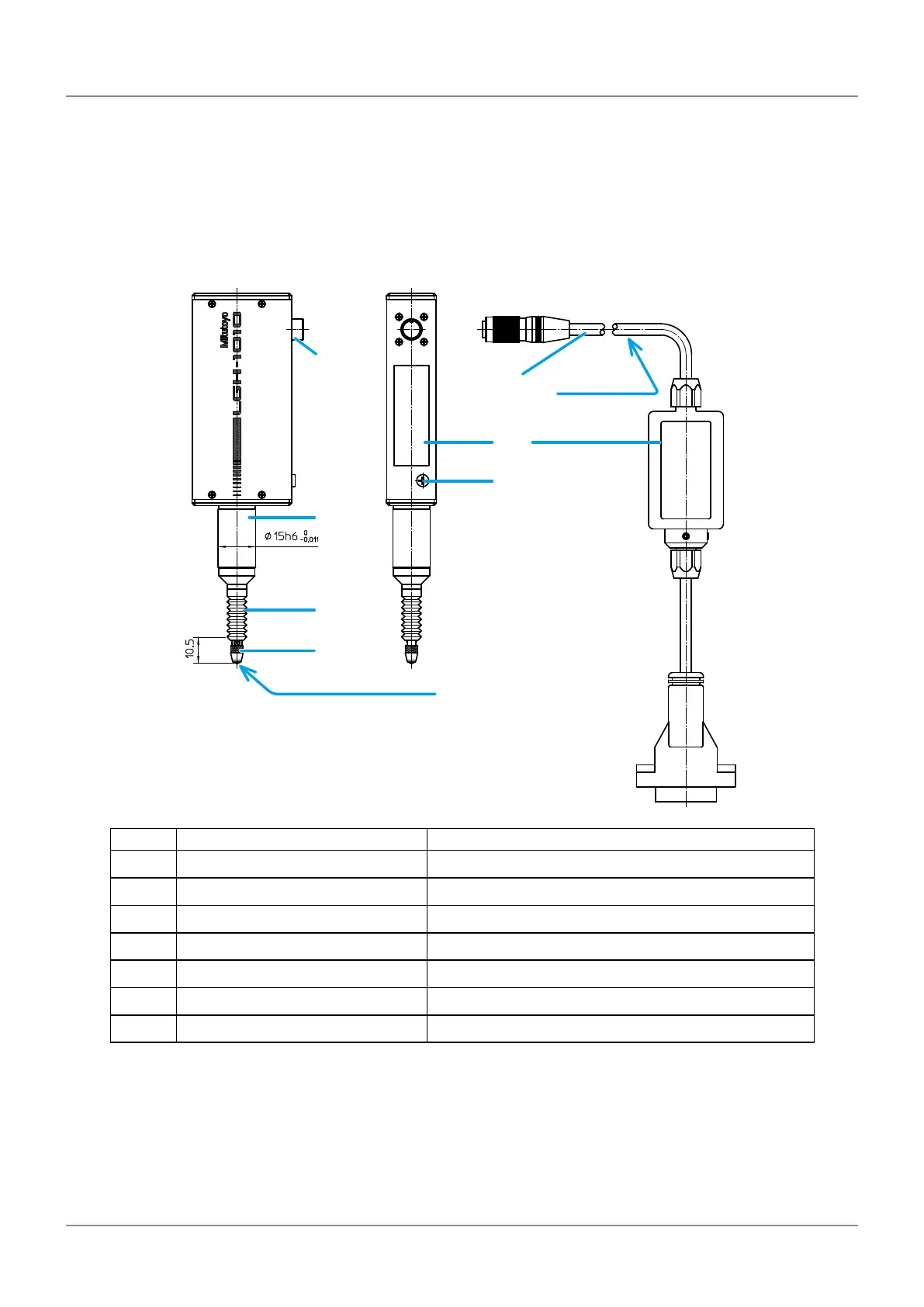

Part Names and Functions
1.2.1 Gage Head/Signal Connection Cable
①
⑦
⑥
④
⑤
②
③
(Stroke)
Carbide Sø3 contact point (M2.5)
Cable length:
Approx. 2 m
No. Name Notes
①
Stem
②
Spindle/rubber cap LGH-1010C-B-EH does not have a rubber cap.
③
Contact point Part No. 901312
④
Release mount screw
⑤
Connection cable connector
⑥
Signal connection cable Detachable
⑦
Serial label
Tips
The gage head and the signal connection cable have the same serial number as the counter.
