4 Basic Operations
No. 99MBC122A
4
Basic Operations
4.1
Selection of Display A/B
For preset, peak measurement mode, and tolerance settings, specify Ach (upper display) or Bch (low-
er display).
1
Press [SEL].
» The selected channel (Ach (upper display) or Bch (lower display)) blinks.

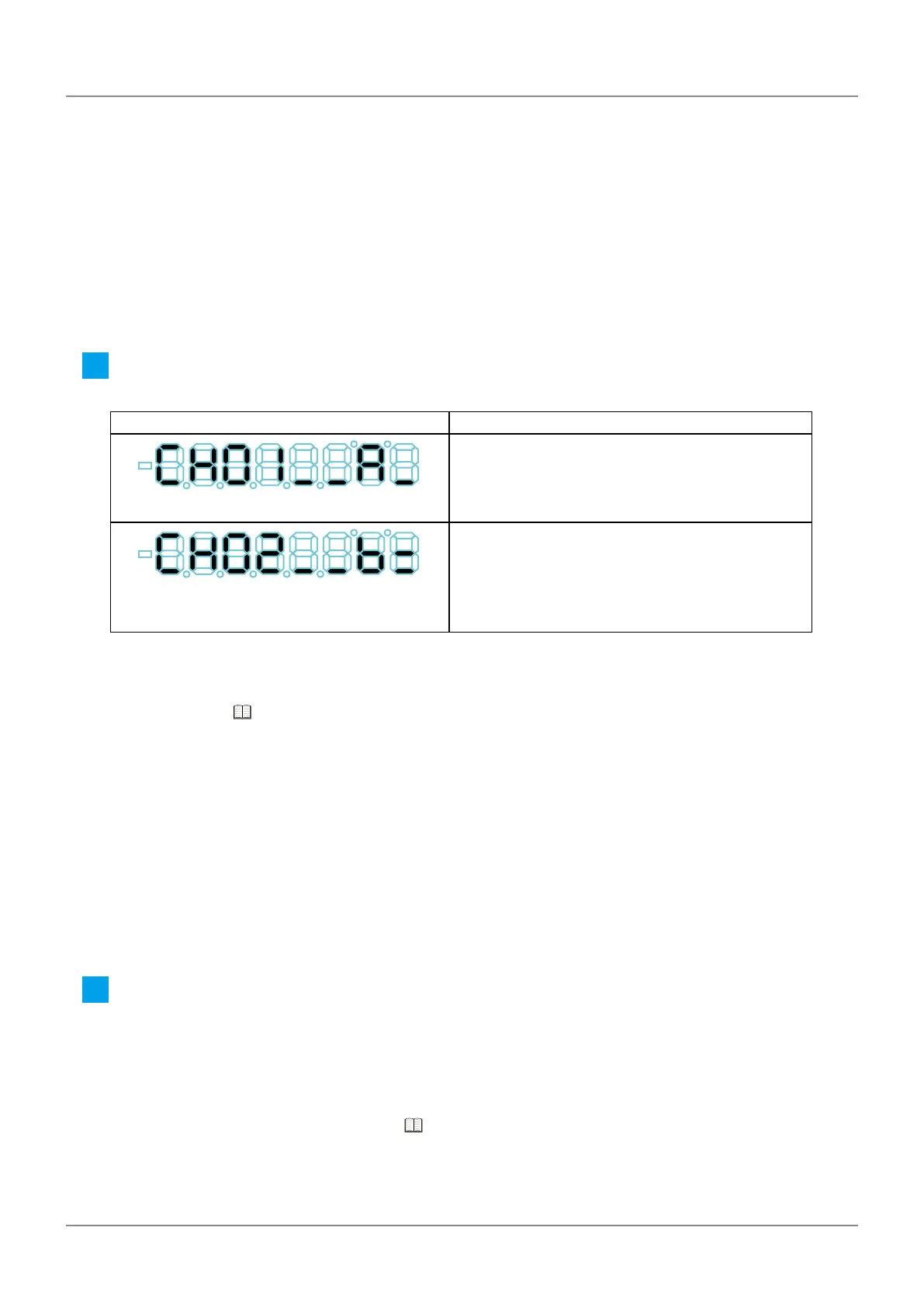

Display example Display contents
Channel number (CEL number) UNIT number
"CH01":
"A":
Ach (upper display/CEL1)
UNIT_A connected
Channel number (CEL number) UNIT number
"CH02":
"b":
(LSD) "=":
Bch (lower display/CEL2)
UNIT_B connected
Setting of the calculation with a
constant (out of accuracy guar-
antee)
Tips
• The channel number used when switching the operation axis is the one used for RS-232 communication.
For details, see "5.4 RS LINK Function" (page 46).
• When the calculation with a constant is set, [=] is displayed in the LED of the least signicant digit of Bch
(lower display).
• When an error occurs, press [SEL] to restore the counter value status.
4.2
Switching the Displayed BANK
This counter can use the key or the input signal from the I/O connector to switch the internal counters
CEL1–CEL4 per BANK.
1
Press and hold [P.SET], and then press [MODE].
» The displayed BANK will be switched.
Tips
• The BANK currently displayed appears in the BANK indicator.
• BANK cannot be switched when the display mode is set to the optional one- or two-axis display.
• For details on the measurement mode, see
"3.3.2 Details of Display Mode Selection (Parameter Number
06)" (page 24).
