3 Parameter Setting
No. 99MBC122A
3.3
Details of Display Mode

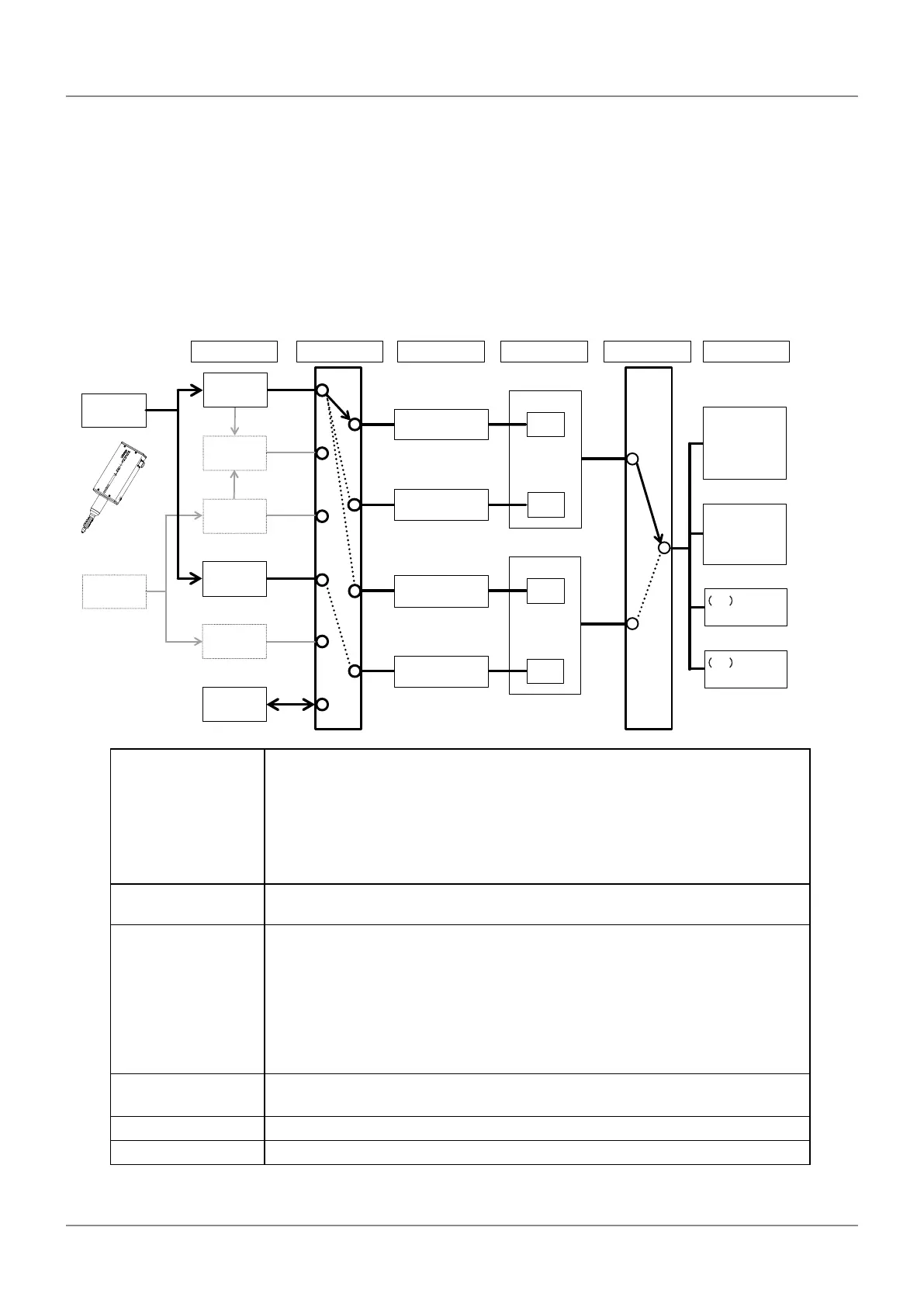

3.3.1 Internal Structure of the Counter
This counter has six input circuits (UNIT_A-F) for various measurements and four internal counters
(CEL1- 4).
Various measurement views are available by changing the connection between UNIT and CEL using
the input selector.
BANK1
BANK2
（INPUT_A）
（INPUT_B）
CEL1
CEL2
CEL3
CEL4
DATA I/F
RS-232
USB
SDP
I/O
BCD
（I/O）
（I/O）
UNIT_A
UNIT_B
UNIT_C
UNIT_E
UNIT_F
UNIT_D
Ach
Bch
Ach
Bch
①Input circuit unit ②Internal counter unit ③Display unit ⑥Output selector ④External output unit ⑤Input selector
Not available
A-axis
A-axis counter
* Parameter selection
* Parameter selection
Total tolerance judgment
Analog
Tolerance
Origin/tolerance/peak detection
Origin/tolerance/peak detection
Origin/tolerance/peak detection
Origin/tolerance/peak detection
A-axis speed
B-axis speed
Memory function
Sum/Di󰀨erence
calculation
B-axis counter
B-axis
Not available
Not available
Not available
①Input circuit unit
UNIT_A–UNIT_F are provided for functions.
y UNIT_A: Performs a counter measurement for A-axis.
y UNIT_D: Performs a simple speed measurement for A-axis.
y UNIT_F: Saves the displayed value.(Enabled even when the power switch
is turned o󰀨)
UNIT_B, UNIT_C, or UNIT_E cannot be used.
②Internal counter
Performs the origin setup, tolerance judgment, and peak detection operations
on the input counter value.
③Display unit
There are two switchable display units, BANK1 and BANK2.
y BANK1: Ach = CEL1 display/Bch = CEL2 display
y BANK2: Ach = CEL3 display/Bch = CEL4 display
As the factory default, Parameter Number 06 is set to "5" (optional one-axis
display), disabling the display unit B and BANK switchover.Setting Parameter
Number 06 to "6" (optional two-axis display) enables the display unit B, and
setting it to "7" (optional four-axis display) enables BANK switchover as well.
④External output
unit
You can use a parameter to select the output interface to use.
⑤Input selector
Connects UNIT to any CEL.
⑥Output selector
Outputs either the BANK_1 or BANK_2 display.
