60
7Specications
No. 99MBC122A
7.2

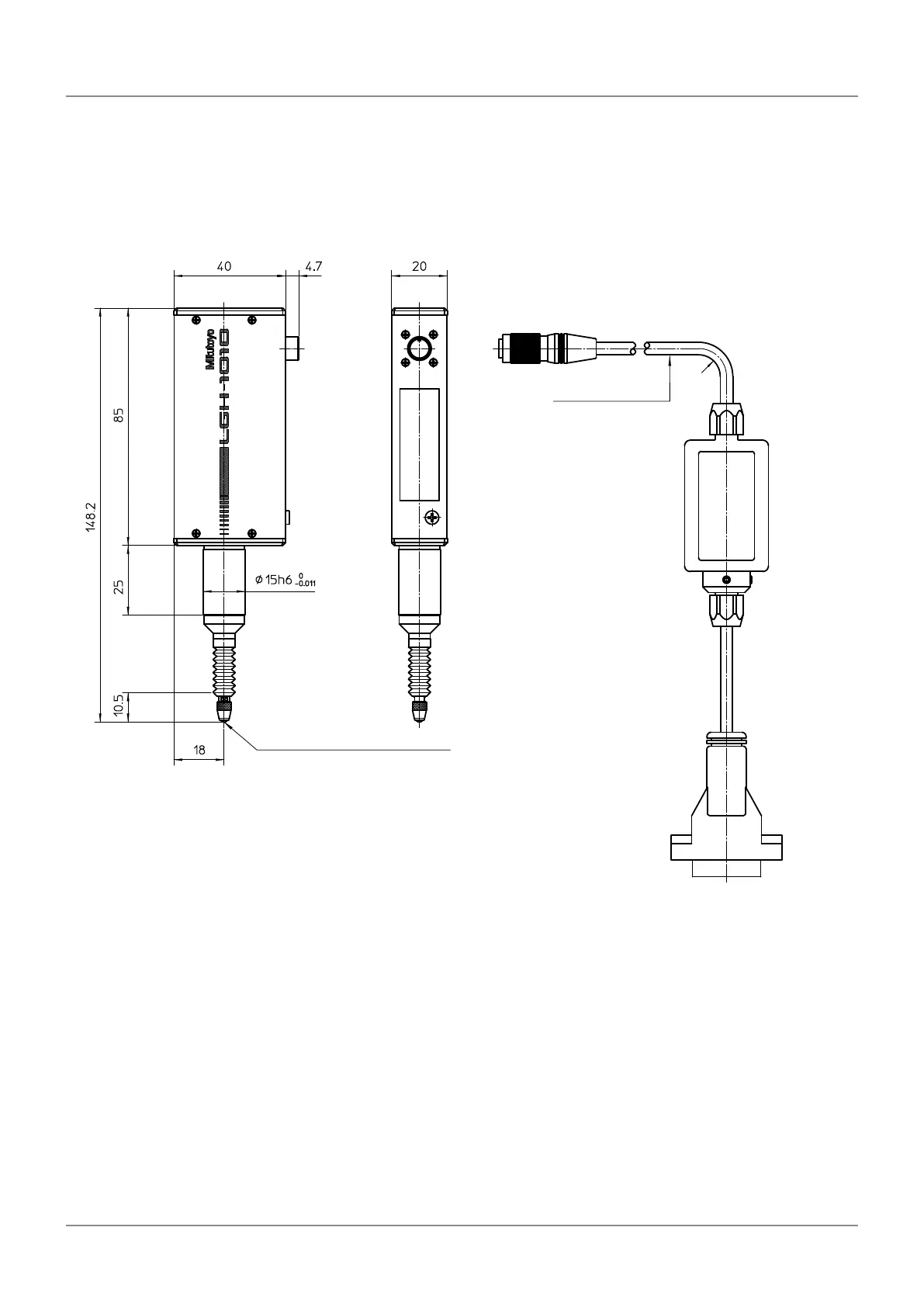

Outline Dimensional Drawing
7.2.1 Gage Head/Signal Connection Cable
R20*
(Stroke)
Carbide Sø3 contact point (M2.5)
Cable length:
Approx. 2 m
* Minimum cable bending size
Unit: mm
