5 External Input/Output Function
No. 99MBC122A
ters the stand-by state, where [- - - - -] is displayed. The RS LINK Function can be canceled using
[SEL], an external HOLD signal, or an RS command.
Tips
For details, see "6.2.1 List of Error Codes" (page 56).
y Parameters relating to RS-232C (No. 25 to 28) can be modied only on the rst counter.If you
modify a parameter, reset the power switch of all the connected counters.

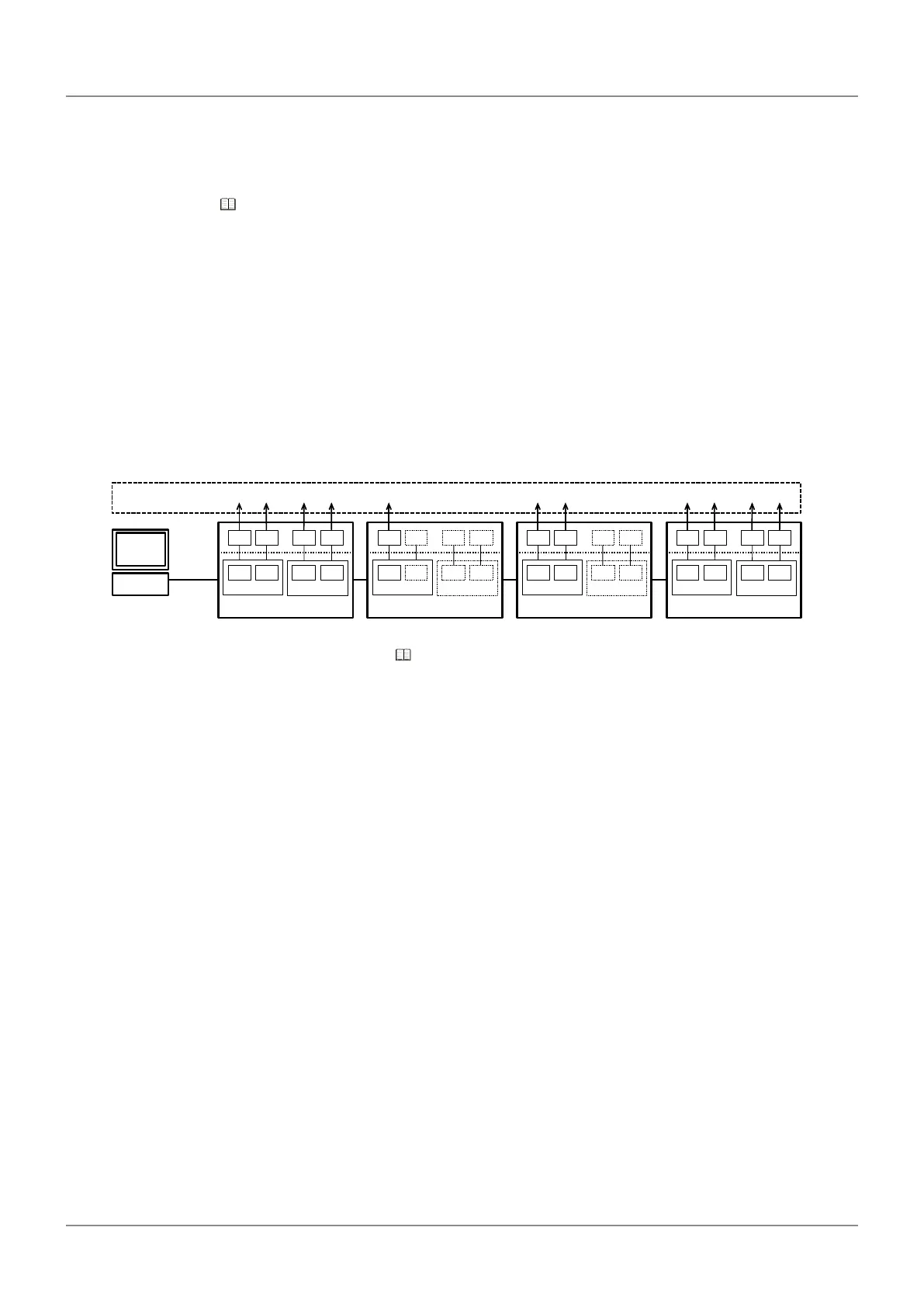

5.4.2 Assignment of CHs
When the power is turned on, the states of the counters are determined, and the CHs (channels) used
by RS-232C commands are automatically assigned.
The CHs are assigned starting from 01, from the CELs of the rst counter.
For counters with the display mode set to the optional one- or two-axis display, CHs are assigned to
only the used CELs and not to unused CELs.
CEL1
CEL2
BANK1
CEL3 CEL4
ChA
ChB
BANK2
ChA ChB
CH01 CH02 CH03
CH04
CEL1
CEL2
BANK1
CEL3 CEL4
ChA
ChB
BANK2
ChA ChB
CH05
CEL1
CEL2
BANK1
CEL3 CEL4
ChA
ChB
BANK2
ChA ChB
CH06 CH07
CEL1
CEL2
BANK1
CEL3 CEL4
ChA
ChB
BANK2
ChA ChB
CH08 CH09 CH10
CH11
RS-232C
First counter
(P No.06 = 5 : Optional one-axis setting) (P No.06 = 6 : Optional two-axis setting)
Assigned CH:
Last counter
For details about the display modes, see "3.3 Details of Display Mode" (page 22).
5.4.3 RS-232C Data Output Duration
The maximum output duration of the command to output all data (GA00CRLF) can be calculated with
the formulas below.
1) When the transmission rate is 9600 bps
Maximum output duration [ms] = Number of connected counters × 5 + Number of connection
channels × 17 + 6
Calculation example
One EH-102 + 1 channel connection = 1 x 5 + 1 x 17 + 6 = Max. 28 ms
Ten EH-102 + 20 channels connection = 10 x 5 + 20 x 17 + 6 = Max. 396 ms
2) When the transmission rate is 19200 bps
Maximum output duration [ms] = Number of connected counters × 5 + Number of connection
channels × 8.5 + 3
Calculation example
One EH-102 + 1 channel connection = 1 x 5 + 1 x 8.5 + 3 = Max. 16.5 ms
Ten EH-102 + 20 channels connection = 10 x 5 + 20 x 8.5 + 3 = Max. 223 ms
Tips
Processing time of the PC is not included.
