45
5 External Input/Output Function
No. 99MBC122A
Tips
The set values for the parameters in the table below are set by the user.
CQ01,**EH-S [200]**:00
CQ01,P02_ _ _=[0],0-1:02
CQ01,P05_ _ _=[0],0-1:03
CQ01,P10_A_=[1],0-3:36
CQ01,P10_B_=[1],0-3:37
CQ01,P40_1_=[0],0-5:42
CQ01,P40_2_=[1],0-5:43
CQ01,P40_3_=[2],0-5:44
CQ01,P40_4_=[0],0-5:45
CQ01,*parameter END*:FF
CQ01,P10_A_=[1],0-3:36
Per-axis
parameter example
<<Output example>>
<<Data syntax>>
Per-CEL
parameter example
Parameter
No.
Axis (INPUT) number,
or CEL number
Parameter set value range
Current parameter set value
Internal data

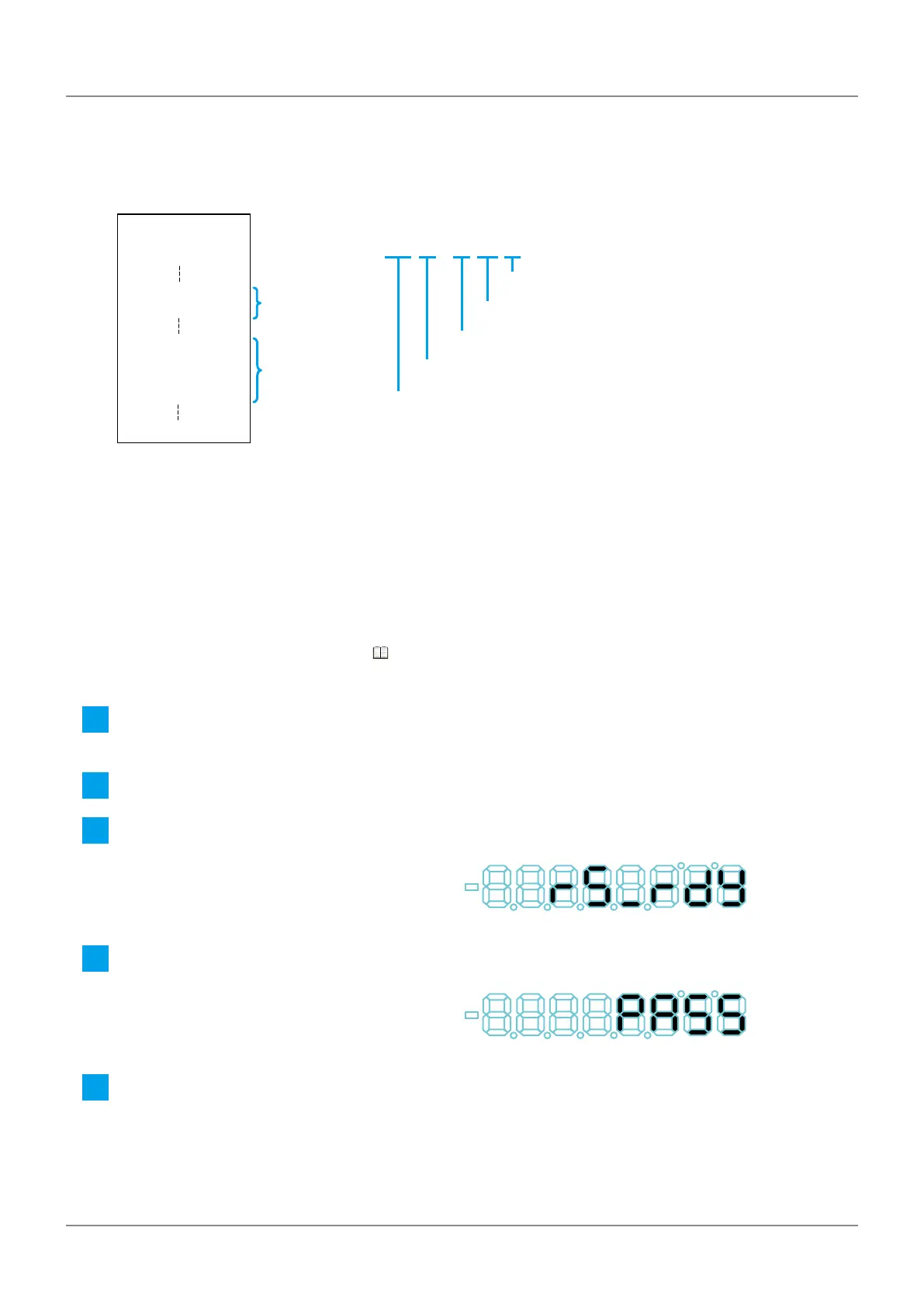

Loading parameters
This section explains how to load parameters.
Tips
• When loading parameters, you cannot extract only one parameter to change it.
Be sure to describe all parameters in one le and load them.
• If parameters are set incorrectly, the count value will not be displayed correctly.
For details about the parameters, see
"3.3 Details of Display Mode" (page 22).
1
Press and hold [P.SET], and then press [A_ZERO].
» The counter enters Parameter mode.
2
Press [A_ZERO] four times to set the Parameter Number 00 to 4.
3
Press [P.SET].
» The display appears as to the right.
4
Send the parameter le from the PC.
» If it is successfully received, the display to the
right will appear.
5
Press [P.SET].
» The counter returns to the counter value status.
Tips
After loading the parameters, turn o the power switch once, and then turn it on again.
To Next Page
