Mitutoyo LGH Series User Manual

53
5 External Input/Output Function
No. 99MBC122A


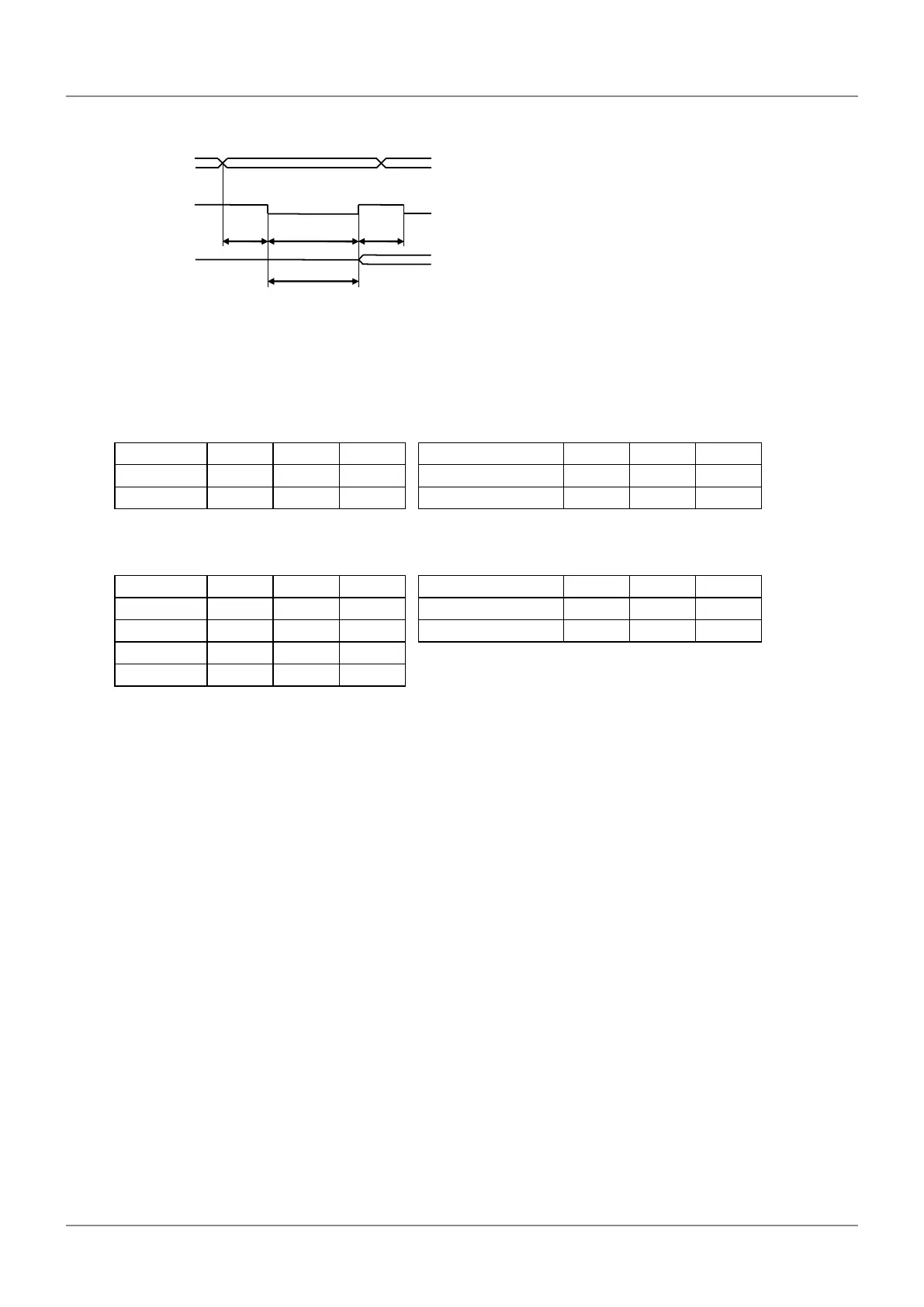

External signal input
Min. 10 ms
Max. 10 ms
Min.
10 ms
Min.
5 ms
MODE
DISP
PA, PB
A/B_HOLD
SET1, 2, 3
DATA
Refer to the following table to set the SET signal.
After setting, leave a gap of 5 ms or more, and then input the input signal of the function to change for
at least 10 ms.
The data will be modied within 10 ms after the fall of the input is conrmed.
DISP (pin number 28):
Switching the displayed BANK
PA/PB (pin numbers 35, 36):
Preset, Peak clear
SET3 SET2 SET1
BANK1 H H H
BANK2 H H L
SET3 SET2 SET1
Preset H H H
Peak clear H H L
MODE (pin number 29):
Switching Peak
A/B_HOLD (pin numbers 32, 33):
Setting/clearing memory
SET3 SET2 SET1
NOMAL H/L H H
MAX H/L H L
MIN H/L L H
TIR H/L L L
SET3 SET2 SET1
Setting memory H H H
Clearing memory H H L
Tips
• During Peak mode, the peak value will be cleared when you input the PA/PB signal while HOLD is being
input.
• When switching Peak mode, SET3 is H for Ach (upper display) and L for Bch (lower display).
• A/B_HOLD signal is available when the relevant channel is UNIT F (memory unit).
