13
802.11n WL
AN ADSL2+ Router
1483 Bridged IP LLC

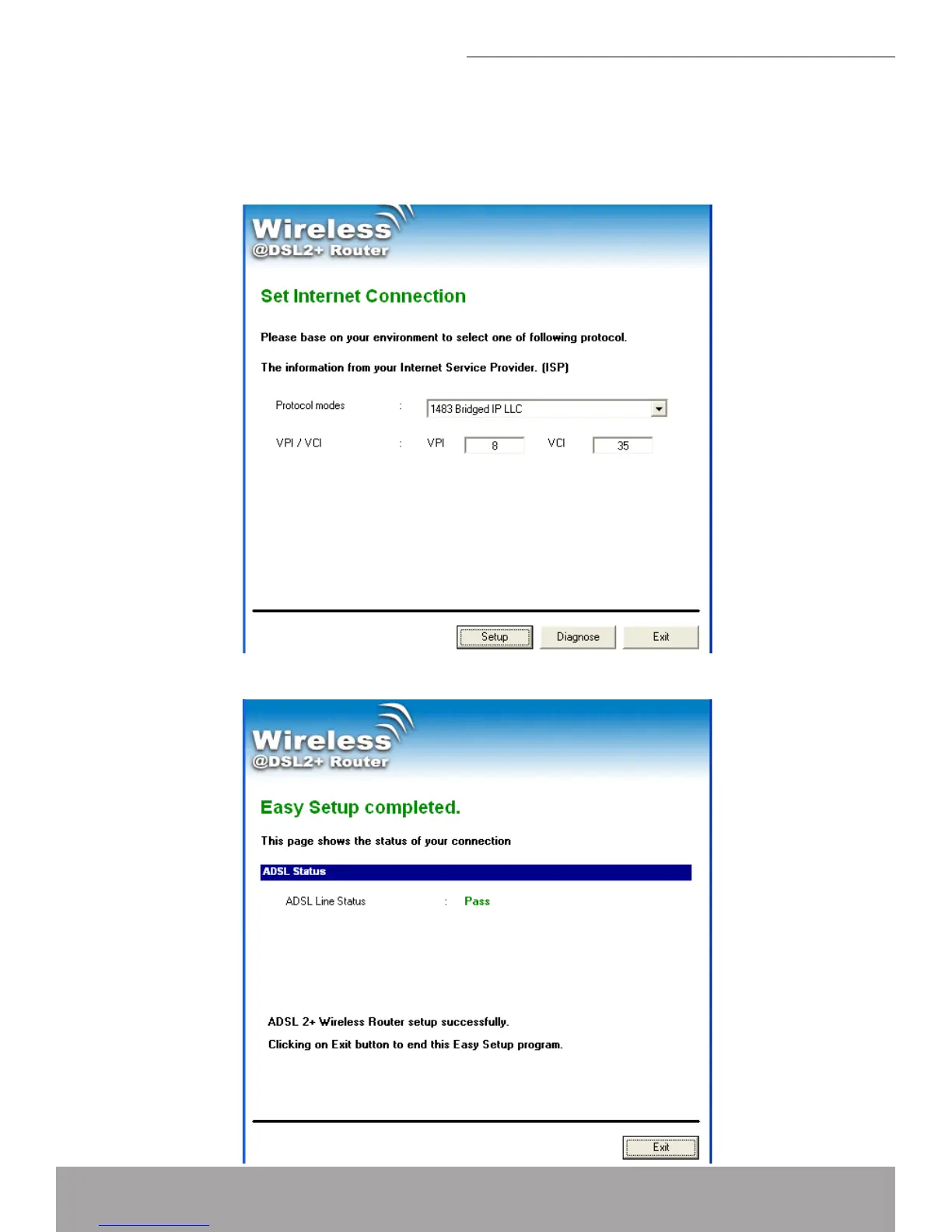

After selecting the Protocol : 1483 Bridged IP LLC:
•
Enter
•
VPI/VCI
which
was
given
by
T
elecom
or
by
your
Internet
Service
Pro-
vider (ISP).
Click
•
Setup
.
Easy setup conguration completed. Now you are ready to Surf the Internet!!!
12
14
