14
802.11n WL
AN ADSL2+ Router
1483 MER LLC Fixed IP

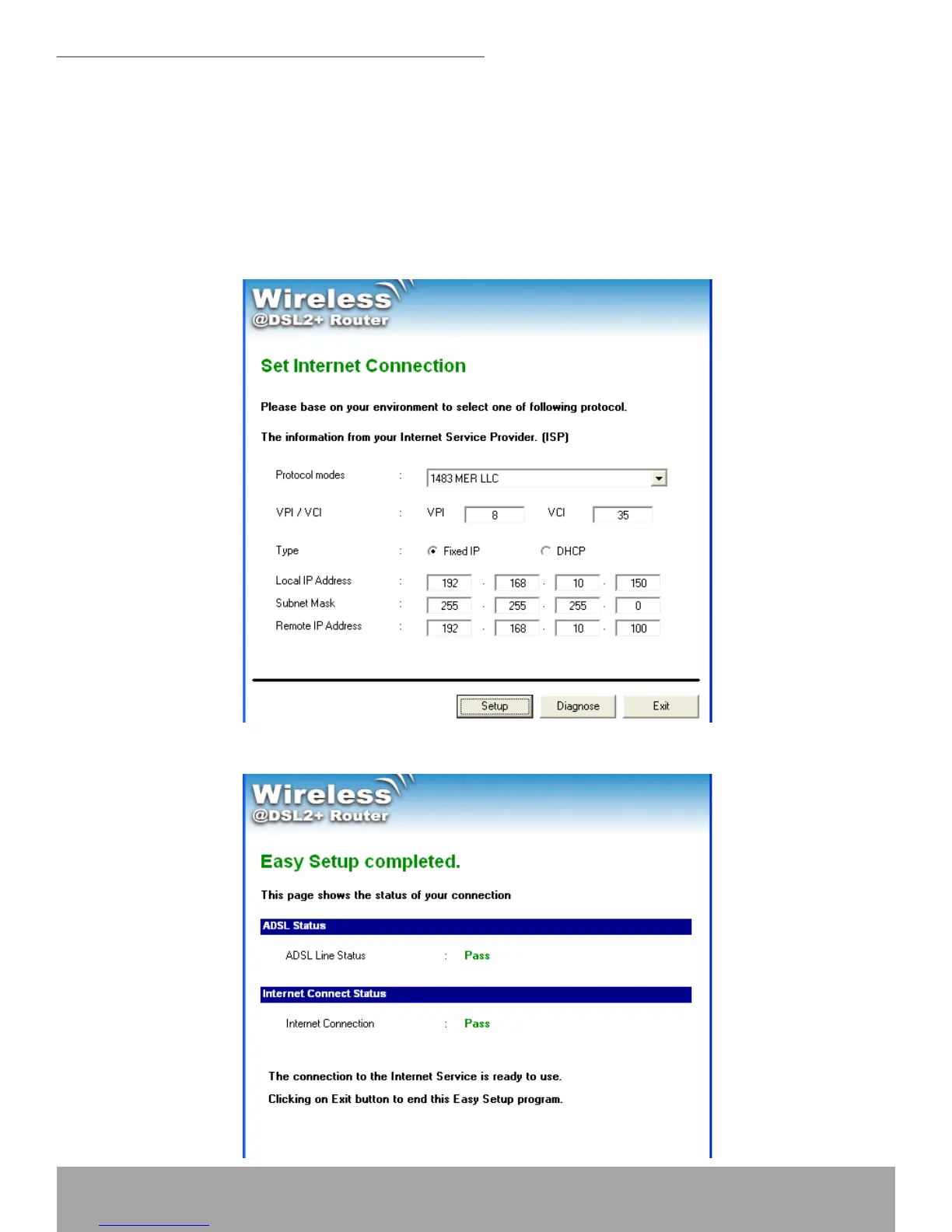

After selecting the Protocol : 1483 MER LLC:
•
Enter
•
VPI/VCI
which
was
given
by
T
elecom
or
by
your
Internet
Service
Pro-
vider (ISP).
From the
•
T
ype
ratio, click
FixedIP
.
Enter
•
LocalIP
Address
/Subnet
Mask/Remote
IP
Address
which was given
by T
elecom or by your Internet Service Provider (ISP).
Click
•
Setup
.
Easy setup conguration completed. Now you are ready to Surf the Internet!!!
