Motion Control Engineering Nidec Element Series User Manual

Element Controls
1-3
element
TM
Series

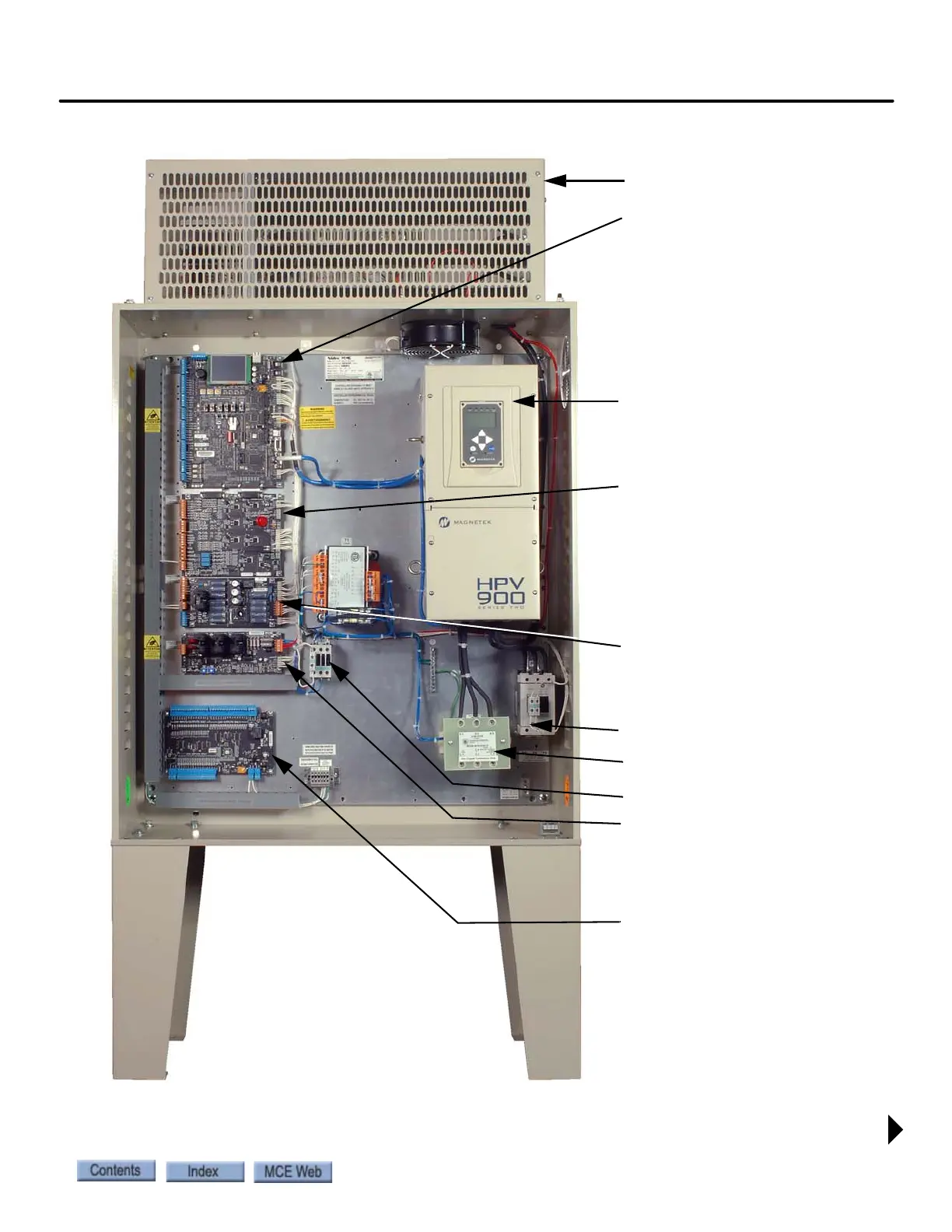

Figure 1.1 Element Traction Control
Braking resistor cabinet
SCE-CPU:
3.5 “color touch screen
Capture/Test controls
Machine Room Inspection
Car/Hoistway Door Bypass
EQ reset
UIM reset
FAULT reset
Drive control
Elevator logic
* Note: Dimensions include Braking Resistor enclosure mounted on top of the controller.
Floor mounting kit (optional) adds 18” to the total height of the controller.
Input power:
208 - 480 VAC,
50/60 Hz, 3 Phase
MC-CPI: (optional)
Additional I/O and/or
Card Reader Security
Motor Contactor
AC drive. May be:
TORQMAX/KEB F5
Magnetek HPV 900 S2,
Magnetek M1000
SCE-HVI:
Normal slowdowns
Terminal switches
Safety string
Door locks
Rope brake
Brake control
Motor contactor
Brake contactor
SCE-UPD:
Bus fusing
Power distribution
Touch safe design
AC Choke
Brake Contactor
SCE-BRK:
Brake control
Current limited
Fused contact
Monitoring
Enclosure dimensions: *
44”H x 34”W x 11“D or
54.5”H x 36”W x 14”D

Motion Control Engineering Nidec Element Series Specifications

General

Brand	Motion Control Engineering
Model	Nidec Element Series
Category	Control Unit
Language	English
