Installation
1-18 Manual # 42-02-2P26
Typical system components:
• Elevator Controller and standard circuit boards (including drive)
• Landing System -
• LS-EDGE or LS-RAIL (page 1-27)

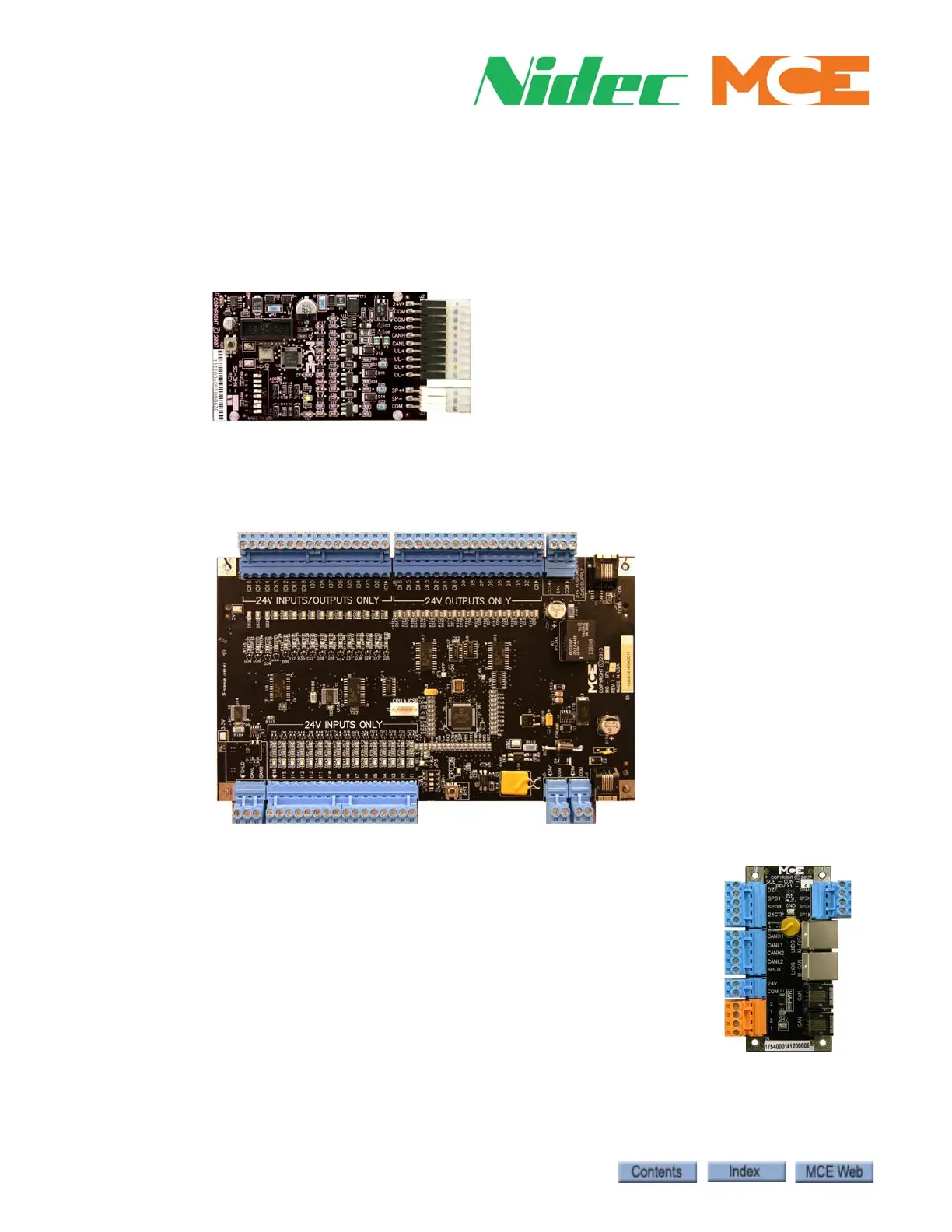

• SC-3HN serial hall call node boards (one in each hall fixture; one for each additional
required riser input)
• MC-CPI-2
• The MC-CPI-2 board serializes COP button and switch information. This board
mounts in the car operating panel. The CPI-2 board is also used in the controller cabi-
net to support additional system I/O.
• SCE-CON interface board
• Provides system CAN to landing system interface. LS-EDGE-EL
and LS-RAIL landing systems allow most hoistway switches to exist
virtually in software. This vastly reduces hoistway installation and
wiring time. This board is usually mounted in the COP with the
MC-CPI-2 board but may be mounted in a car top box as well.
