Motion Control Engineering Nidec Element Series

Component Identification
1-19
element
TM
Series

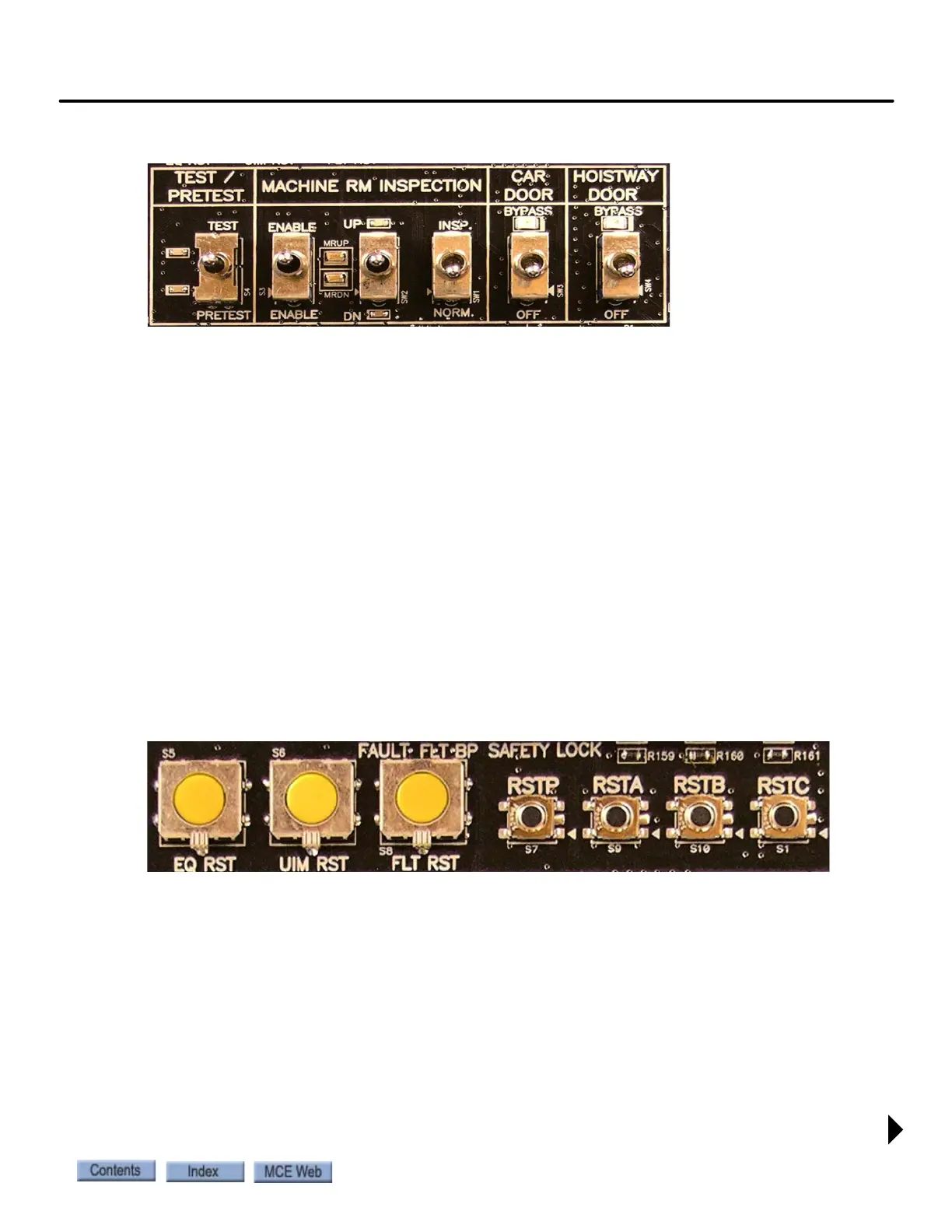

SCE-CPU board switches:
• Test/Pretest:
• Pretest captures the car by disabling hall calls, serving only car calls, and remaining at
the selected recall floor (door operation as set).
• Test allows the car to be operated at contract speed with doors and hall calls disabled.
• The switch center position disables Test/Pretest operation.
• Machine Rm Inspection Insp/Normal:
• Inspection: Places the car on Machine Room Inspection operation.
• Normal: Places the car on Passenger (automatic) operation.
• Machine Room Enable and Up/Down:
• To move the car on Inspection operation, the Enable switch must be held in the Enable
position and the Up/Down switch must be held in the desired direction. When Enable
or the direction switch is released, the car will stop.
• Car Door/Hoistway Door Bypass switches:
• Used to bypass the car or hoistway door electric contacts (Bypass position). When set
to Bypass, the car will run only on Inspection mode.
SCE-CPU Board Reset controls:
• EQ RST: Use to reset the earthquake input and restore normal operation.
• UIM RST: Use to reset the emergency brake following an unintended motion incident.
• FAULT: Use to reset controller faults.
• RSTP: Use to reset the PLD.
• RSTA: Use to reset processor A.
• RSTB: Use to reset processor B.
• RSTC: Use to reset processor C.
