9. Align the four mounting slots on the back of the cradle with the four mounting tabs on the bracket.

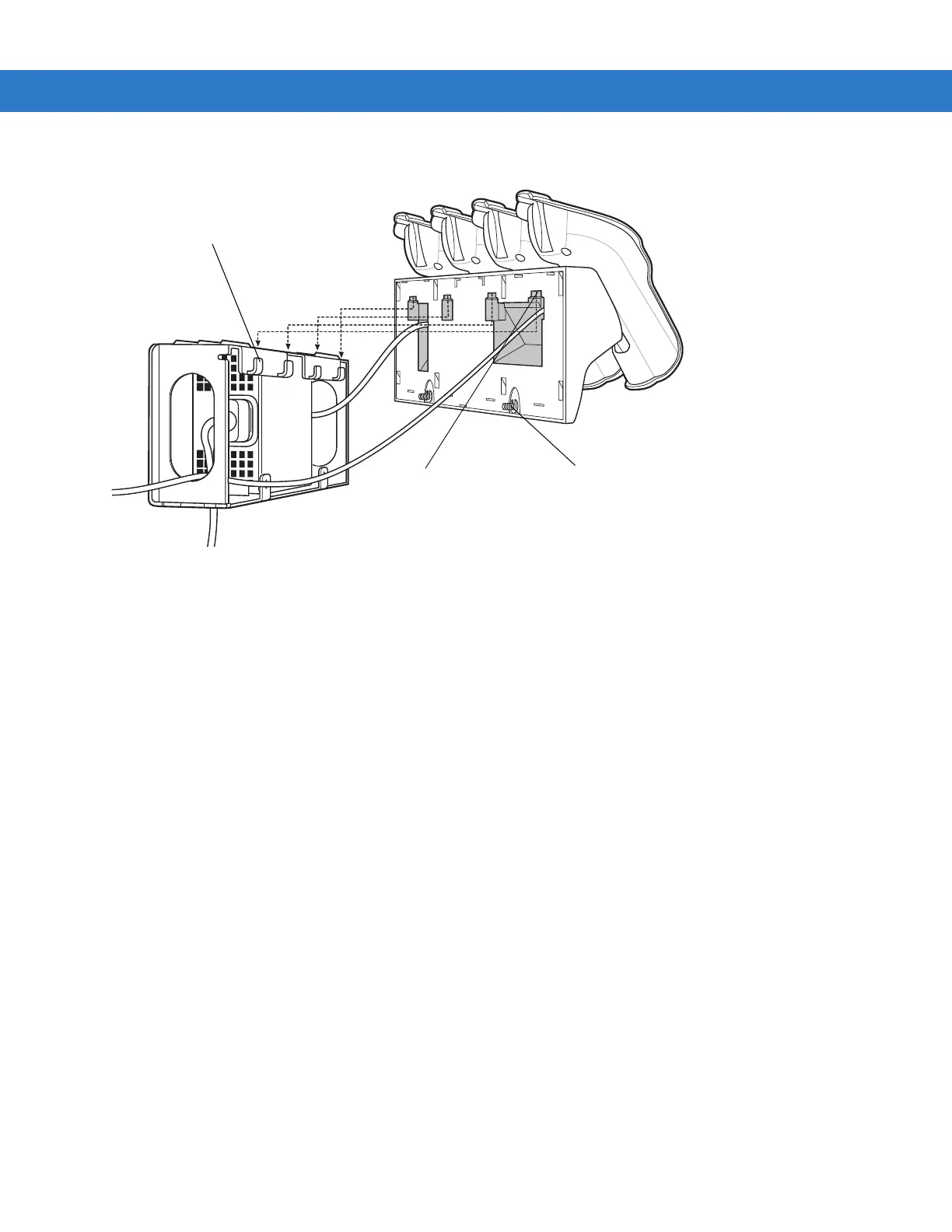

Figure 2-14
Mount Four Bay Cradle onto Mount Bracket
10. Hang the cradle on the bracket ensuring that the cradle is aligned properly.
11. Secures the two thumb screws to hold the cradle to the bracket.
12. Plug the AC line cord into an AC outlet.
Daisychaining Ethernet Cradles
Daisychain up to four Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight or
crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first cradle is
10 Mbps as throughput issues will almost certainly result.
To daisychain more than one Ethernet cradle:
1. Connect power to each Ethernet cradle to daisychain.
2. Connect an Ethernet cable to Port 1 of the first cradle as shown in Figure 2-13.
3. Connect a second Ethernet cable between Port 2 of the first cradle, and Port 1 of the second cradle.
4. Connect additional cradles as described in Step 3.
