2 - 28 MC9500-K Series Mobile Computer Integrator Guide
4. Swipe the magnetic stripe card through the MSR, with the magnetic stripe on the card away from you. Swipe
the card in either direction, up and down or down and up. For best results, gently press on the card while
swiping to ensure contact with the bottom of the MSR slot.

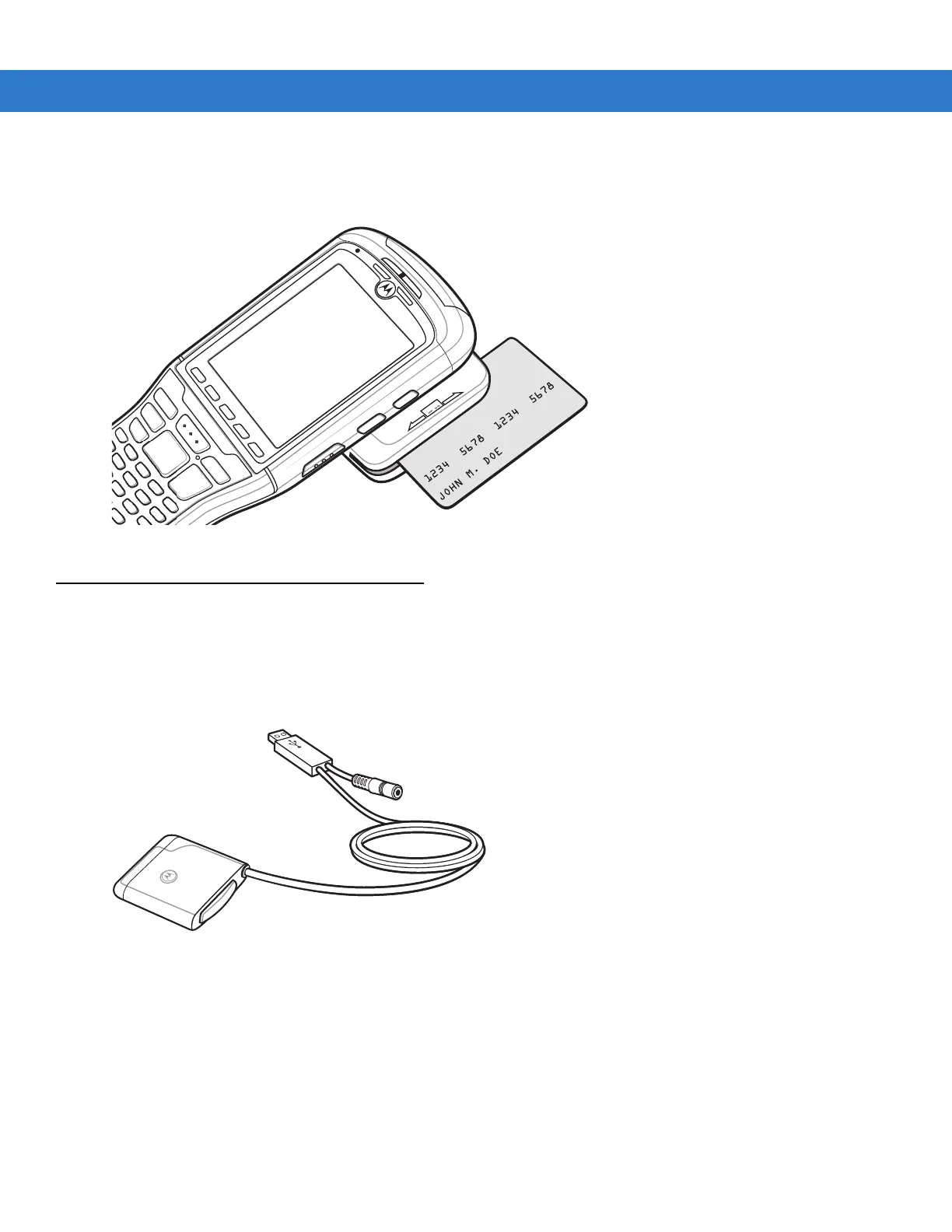

Figure 2-39 Magnetic Stripe Card Swiping
USB/Charge Cable
Provide the MC9500-K with operating and charging power when used with the Motorola approved power supply.
Synchronize information between the MC9500-K and a host computer. With customized or third party software, it
can also synchronize the MC9500-K with corporate databases.
Figure 2-40 USB/Charge Cable
To connect the MC9500-K:
1. Align and hook the cleat of the cable onto the interface pocket of the MC9500-K.
2. Press the square down until it attached to the matching mechanism.
