Motorola MC9500-K Integrator Guide

Accessories 2 - 5
Universal Wall Mounting Bracket
Use the Universal Wall Mounting Bracket to mount a Four Bay Ethernet cradle, Four Bay Charge Only cradle or
two Four Slot Battery Chargers on a wall.

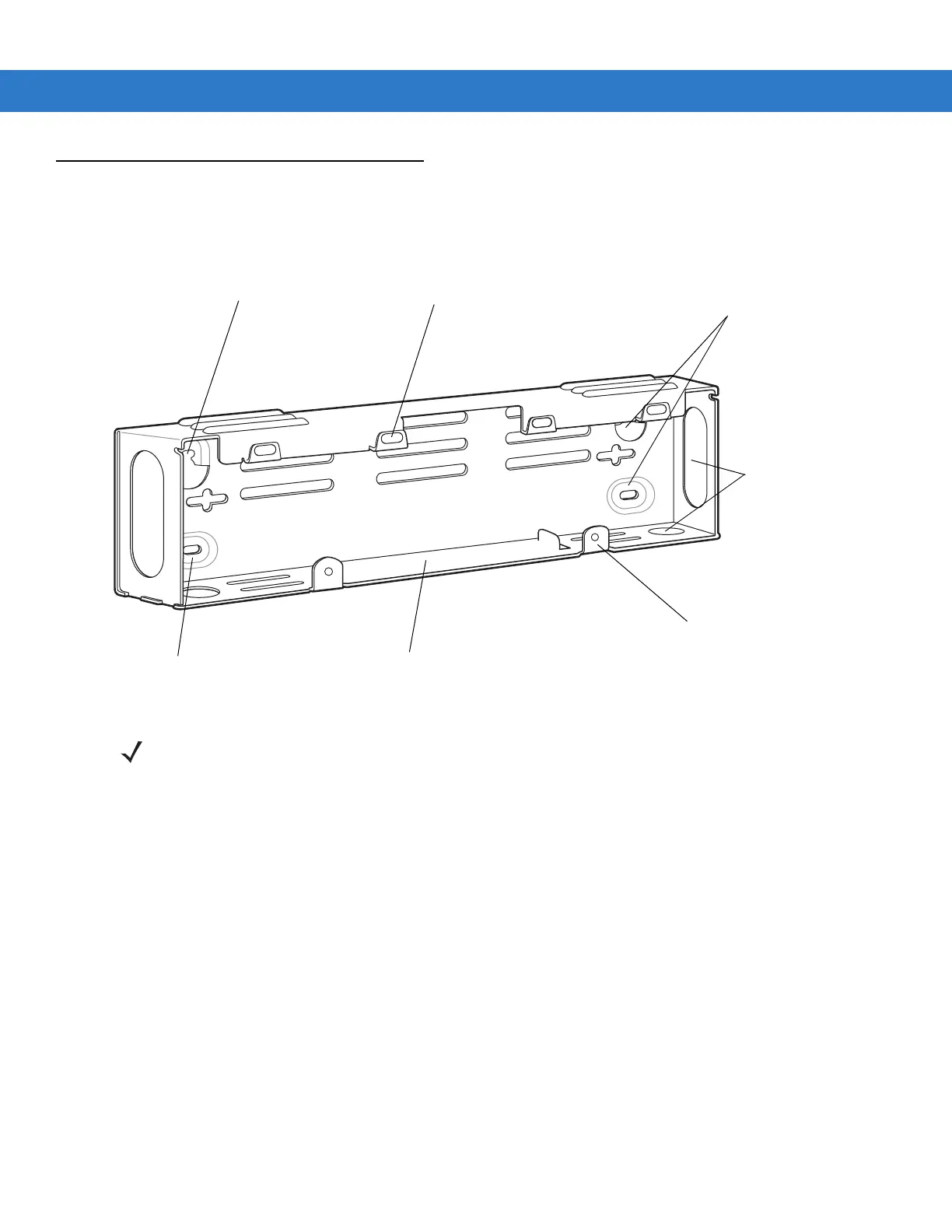

Figure 2-3 Universal Wall Mounting Bracket
To attach the Universal Wall Mounting Bracket to the wall:
1. Place the template (supplied with the Universal Wall Mounting Bracket) onto the wall, level and mark the four
screw hole locations and drill holes.
2. If the template is not available, use the dimensions in Figure 2-4 on page 2-6.
Thumb Screw Holes (2)
Mounting Tabs (4)
Power Supply Location
Cable Routing Holes
Mounting Hole
Mounting Holes
Mounting Hole
NOTE Use fasteners appropriate for the type of wall and the Universal Wall Mount Bracket mounting slots.
For mounting on metal surfaces, it is recommended to use 4 mm or #8 pan head machine screws with a
minimum thread engagement of the screw size (diameter).
For mounting on non-metal surfaces, it is recommended to use 4.8 mm or #10 pan head self-tapping screws
with suitable length and wall plug.
