Motorola MC9500-K - Auto Charge Cable

Accessories 2 - 29

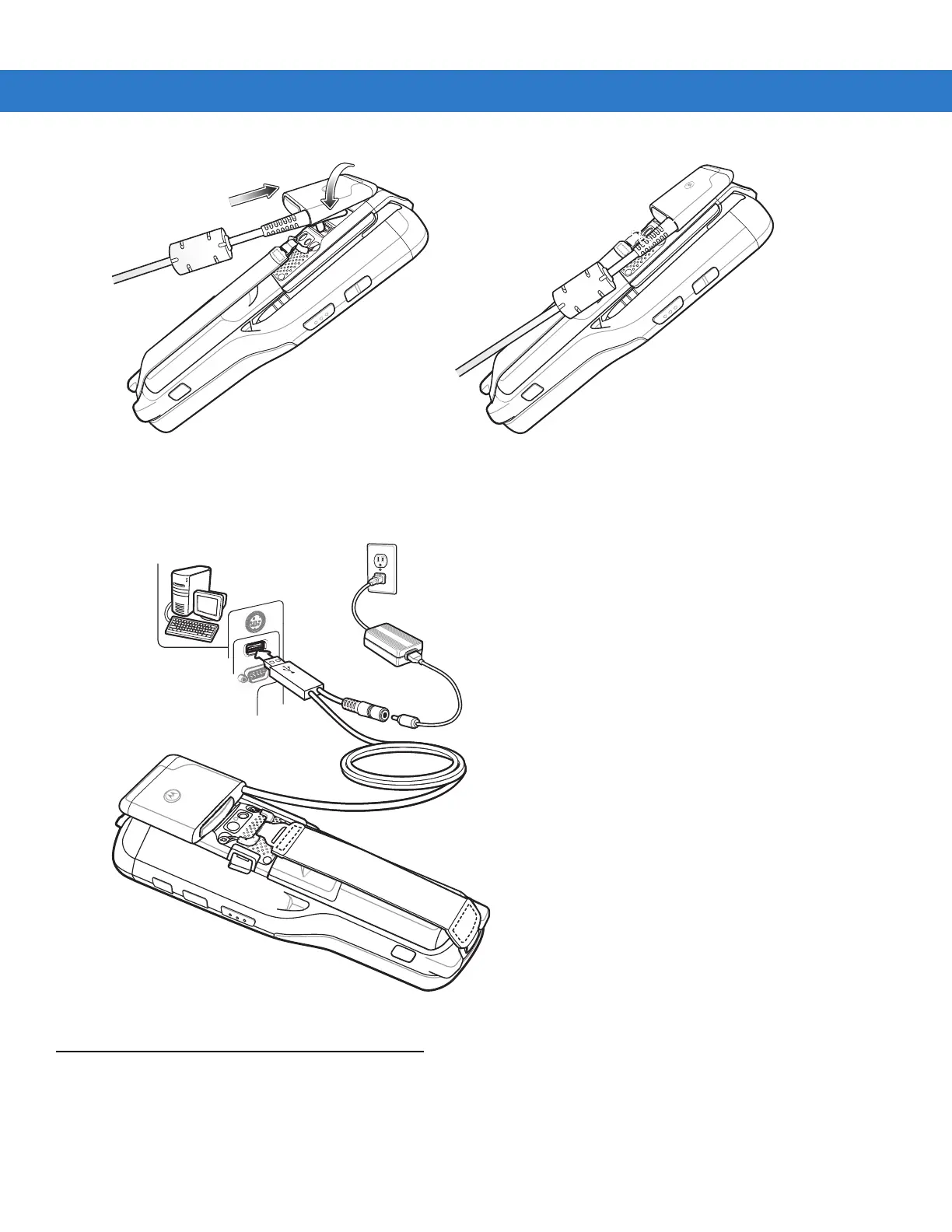

Figure 2-41 Connecting Cable to MC9500-K
3. Connect the DC cable from the power supply to the barrel jack.
4. Connect the USB connector to the host computer.
Figure 2-42 Connection to Host Computer and Power Supply
Auto Charge Cable
Provide the MC9500-K with operating and charging power when used with a vehicle cigarette lighter.
