Accessories 2 - 7
Figure 2-7

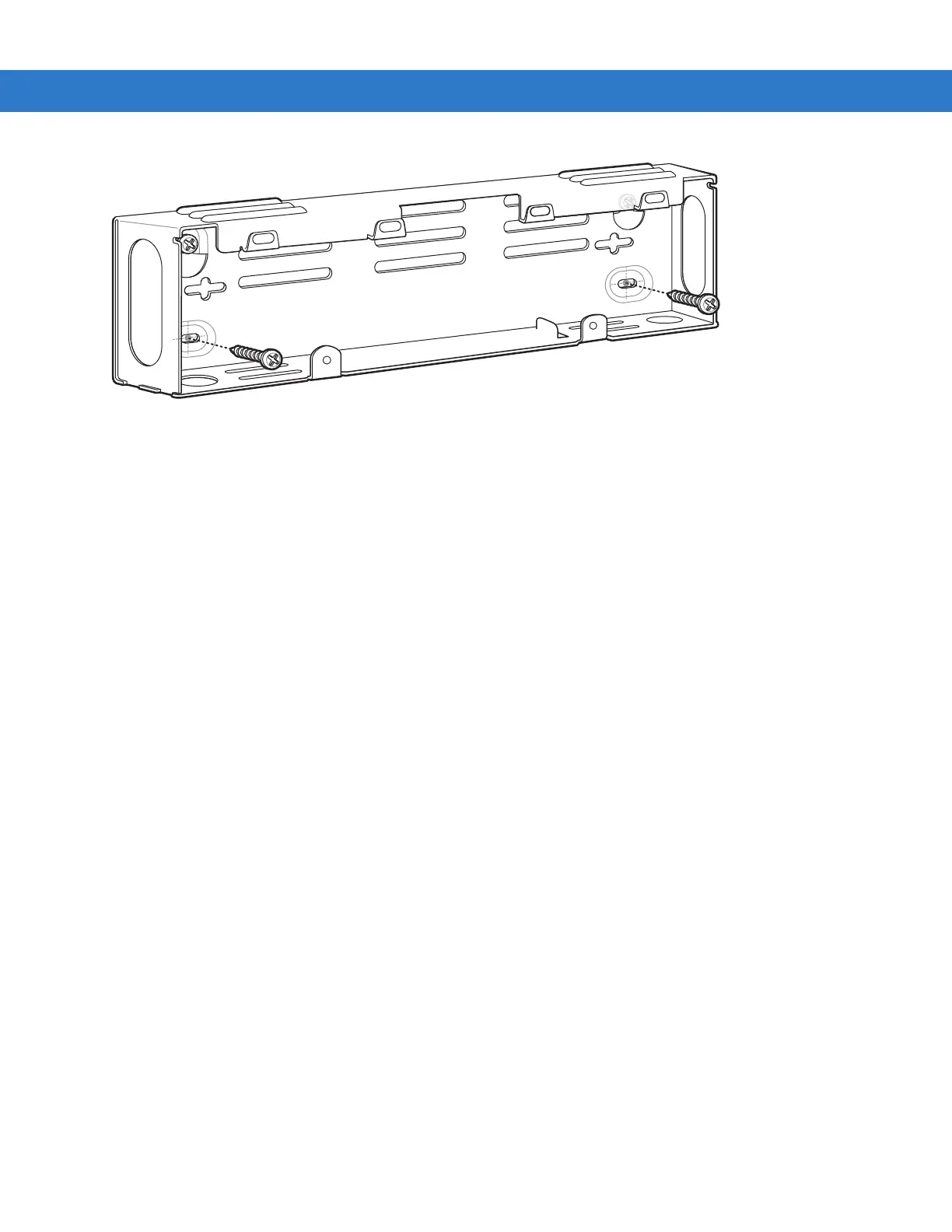

Install Bottom Two Screws
Mounting Multiple Brackets
When mounting multiple brackets on a wall:
•
Place brackets next to each other so that the brackets touch.
•
Distance from top mounting hole of one bracket to top mounting hole of next bracket should be 254 mm (10
in.) minimum.
•
Vertical space between brackets should be 131 mm (5.2 in.) minimum.
•
Lowest bracket should not be less 610 mm (18 in.) from the floor.
•
Top bracket should not be higher than 1.8 m (6 ft.) from the floor.
