2 - 24 MC9500-K Series Mobile Computer Integrator Guide
Single Slot Battery Charger
This section describes how to set up the Single Slot Battery Charger.
Setup
1. Connect the power supply DC cable to the power port on the back of the charger.
2. Plug the AC line cord into the power supply.
3. Plug the AC line cord into an outlet.

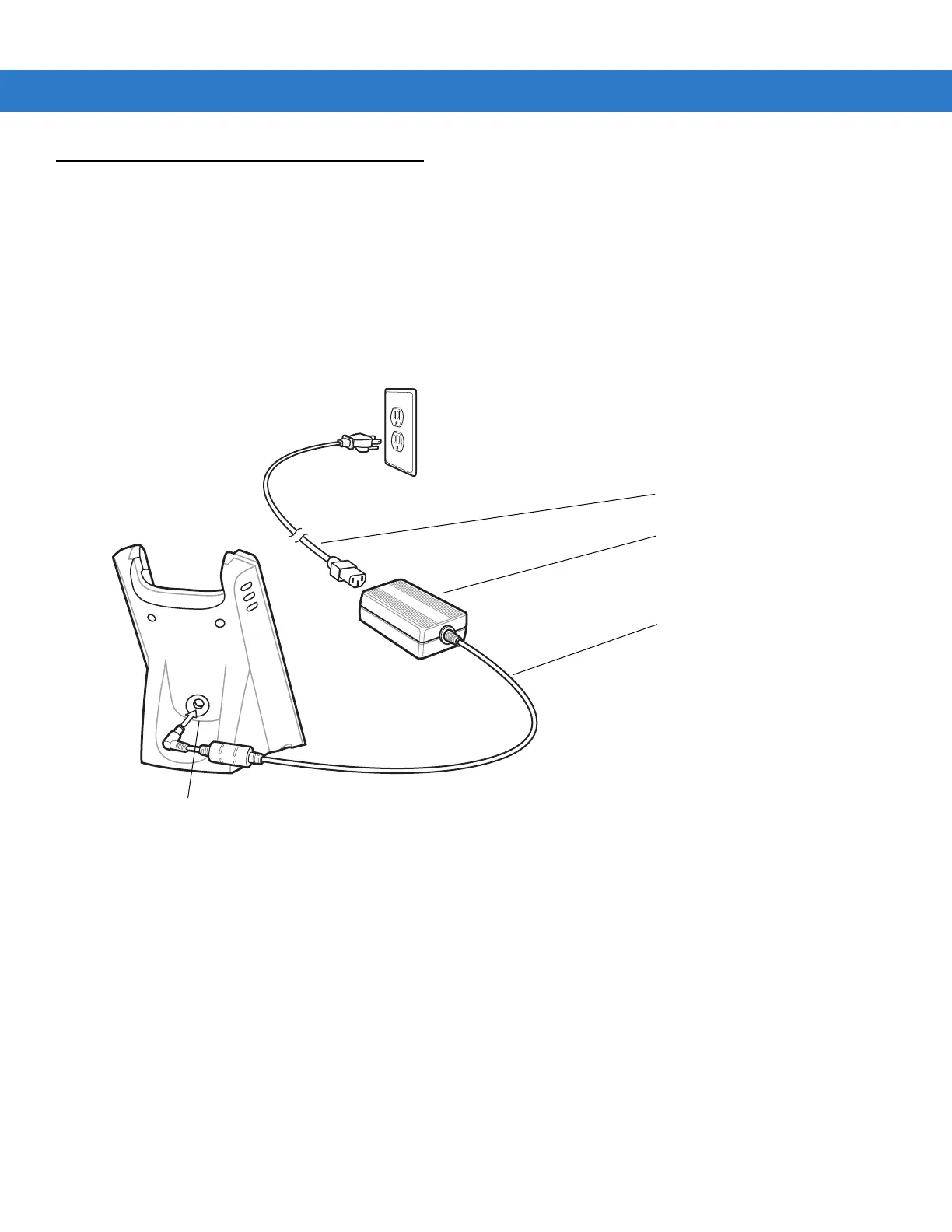

Figure 2-33
Single Slot Battery Charger Setup
Single Bay USB Cradle/Single Slot Battery Charger
The Single Slot Battery Charging Charger and the Single Bay USB Cradle can be connected together using the
supplied clip.
1. Snap the clip onto the bottom of the Single Slot Battery Charger.
Power Supply
AC Line Cord
Power Port
DC Cable
To Next Page
