ioThinx 4510 Series Hardware Installation

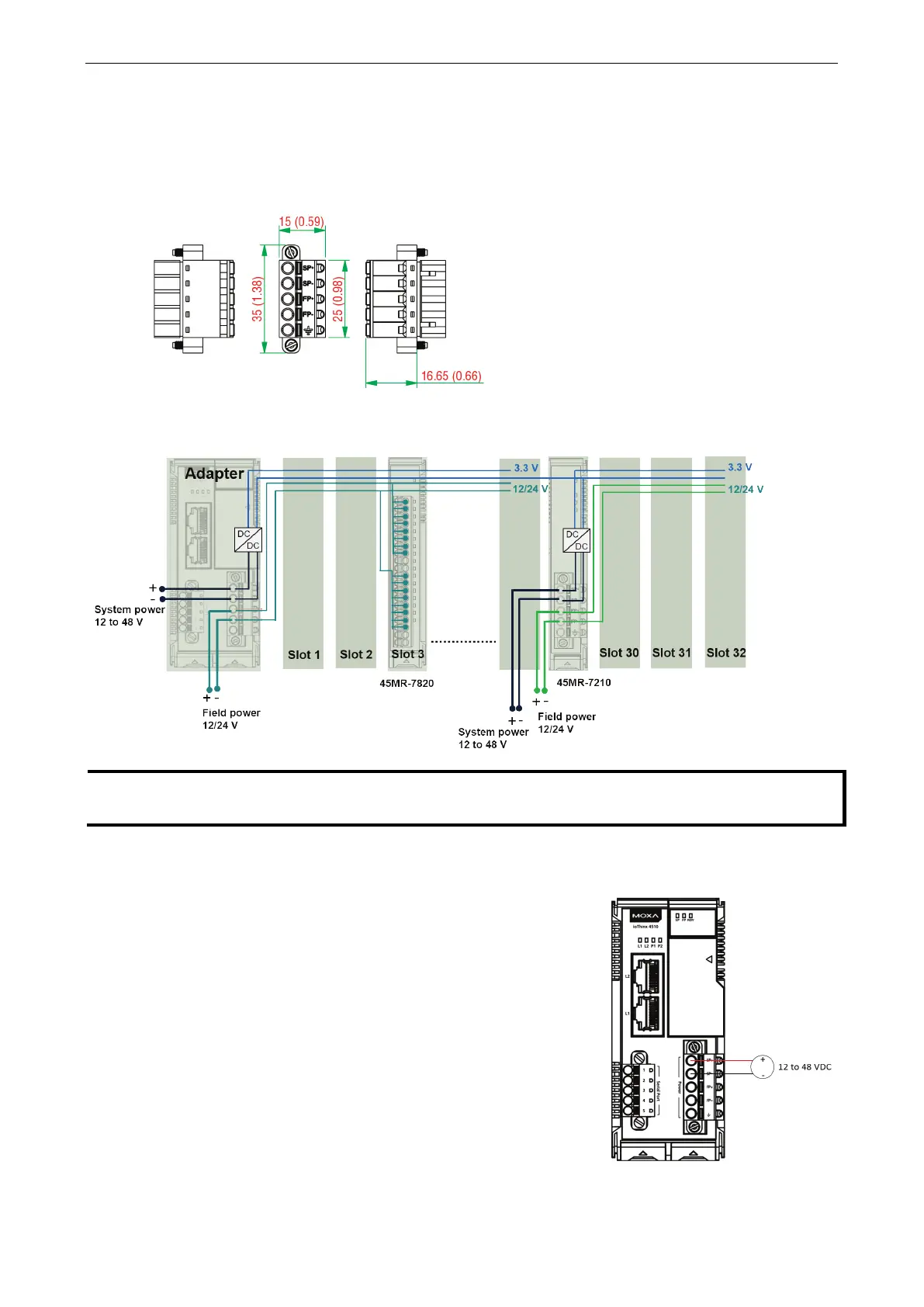

Wiring System and Field Power
Wire range: 12 to 26 AWG (Ferrule diameter: 2.0 to 0.4 mm)
Wire strip length: 10 mm
Unit: mm (in.)
The device requires two sets of power inputs. One is for the system (internal logic circuit), and the other is
for field I/O circuits.
All I/O points have 3 kV VDC
or 2 kVrms isolation with the system. We recommended using different power
supplies to ensure that the system power and field power are isolated from each other.
System Power
This device requires a 12 to 48 VDC system power input. The system
power
powers this device and the expansion modules via an internal
bus, which is galvanically connected to the system power supply.
The amount of system current required to support an expansion module is 1 A. If more modules and more
power consumption is needed, an additional power module (45MR-7210) is required. Below is an example:
