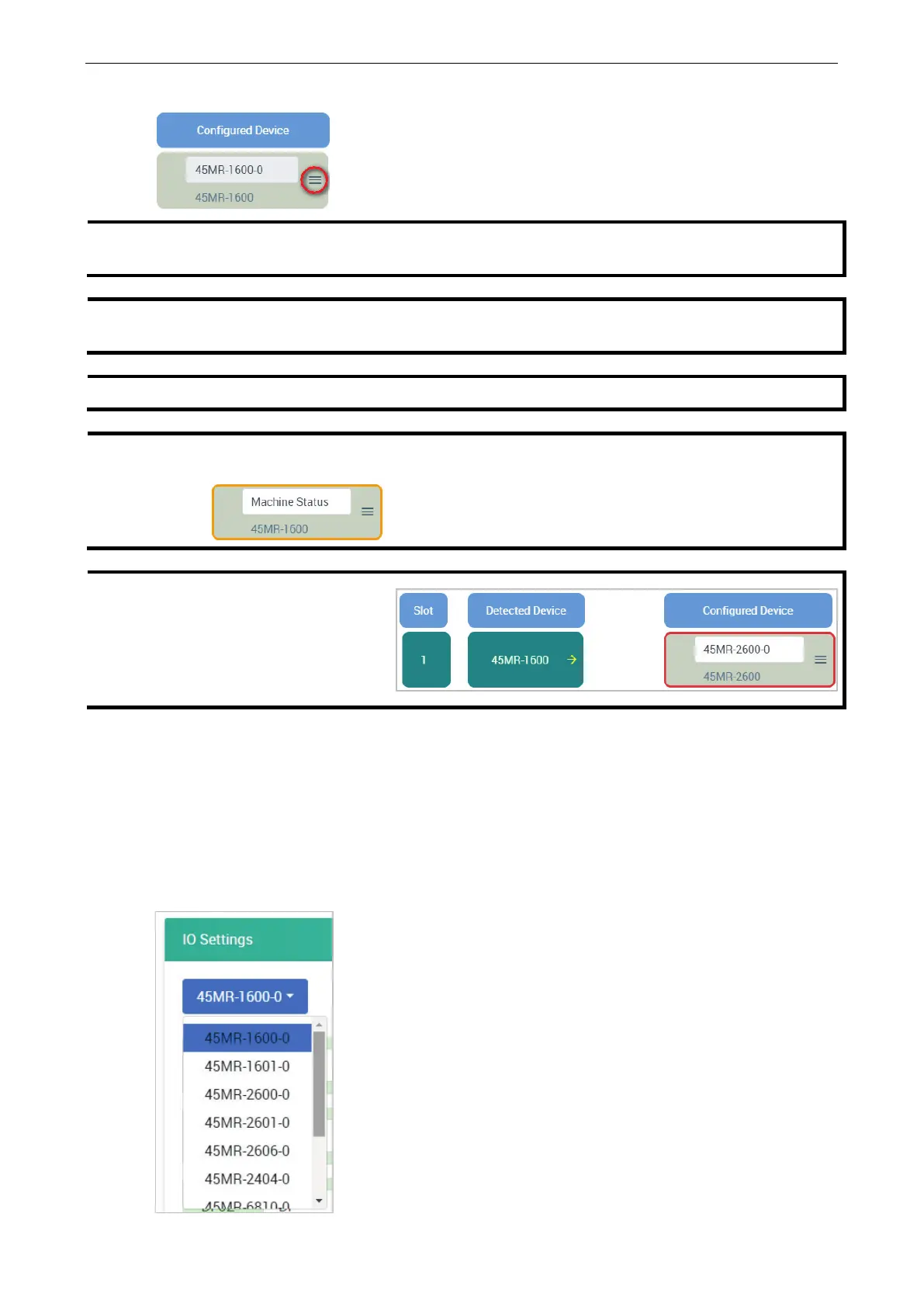

The drag icon allows you to drag the configured module and drop it to the position you need.
NOTE
The detected module should match the configured module. Otherwise, the Web Console will not allow you to
configure other settings.
NOTE
The detected module should match the configured module. Otherwise, the Web Console will not allow you to
click
Finish.
INFORMATION
Use
Auto Matching to quickly match the configured module with the detected module.
INFORMATION
Once the setting of a configured module is changed, the configured module will be highlighted by
an
orange rectangle.
INFORMATION
If the configured module does
not match
the detected
module, the configured
module will be highlighted by
a red rectangle.
I/O
This section introduces the I/O and IR (Internal Register) settings functions.
I/O Settings
Module Drop-Down List: It lists all the I/O modules of this device. Select the specific module for I/O
configuration.
