ioThinx 4510 Series Software Tools
Internal Register
This section introduces functions of Internal Register settings.
The Internal Registers, which store the data retrieved from the Modbus/RTU master, can be mapped to the
supported northbound protocols, such as Modbus/TCP, RESTful API, and MQTT.

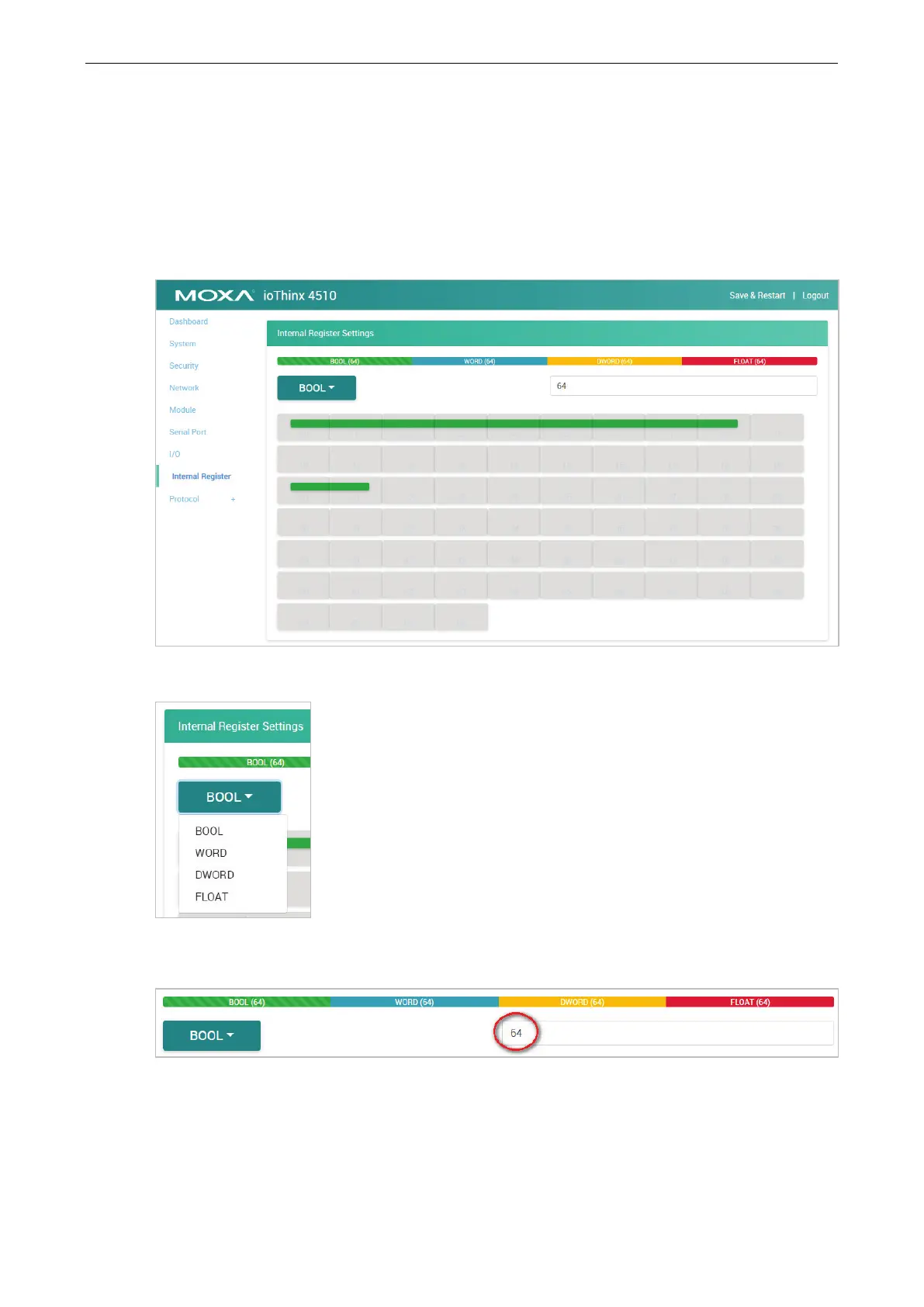

Each block represents one internal register location. Internal registers that are being used are indicated with
a corresponding color bar at the top of the register, as shown below.
IR Type Drop-Down List: It lists all of the IR types. Select the IR type to modify or view its settings.
IR Quantity: Apply a number to adjust the quantity of the selected IR type. The total available IR quantity
is 256.
