ioThinx 4510 Series Hardware Installation
• 10 x 45MR-1600 (59.4 mA) = 594 mA
• 5 x 45MR-3810 (187 mA) = 935 mA
The total system current is 1.594 A, which is greater than 1 A. Therefore, an additional 45MR-7210 is
needed.
-7210 to the left hand side of the module where the power consumption would be
To avoid damaging your devices, r
eset all power supplies connected to this device and 45MR-7210 modules
.
Click the following link to see how many 45MR
-7210 power modules you will need to support your ioThinx
http://iothinxcalculator.moxa.com

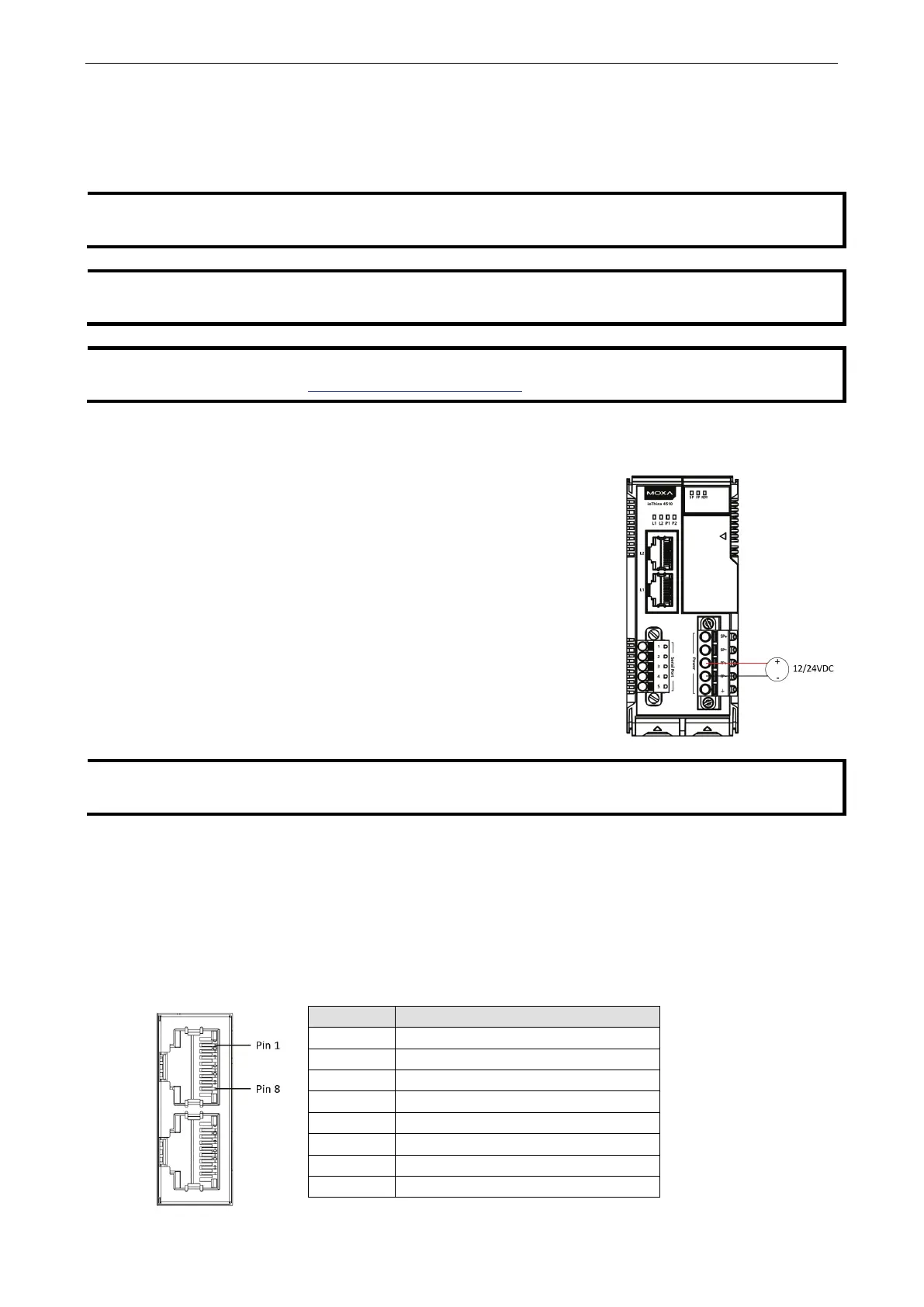

Field Power
a field power input of 12/24 VDC that passes
directly through the expansion modules and provides a maximum
current output of 2 A.
The 12/24 VDC field power supply can be connected directly to 45MR modules. If more connection points
are needed, purchase
45MR-7820 (8 x FP+ and 8 x FP-) modules.
Wiring Ethernet Ports
The maximum cable length of a 10/100BaseT connection is usually stated as 100 m (350 feet), but the
actual limit for your application could be longer or shorter depending on the amount of electrical noise in the
environment. To minimize the amount of noise, Ethernet cables should not run parallel to power cables or
other types of cables that generate electrical noise. The following diagram and table shows the pin
assignments for the RJ45 Ethernet ports:
Pin Media Direct Interface Signal
1 Tx+ (transmit)
2 Tx- (transmit)
3 Rx+ (receive)
4 Not used
5 Not used
6 Rx- (receive)
7 Not used
8 Not used
