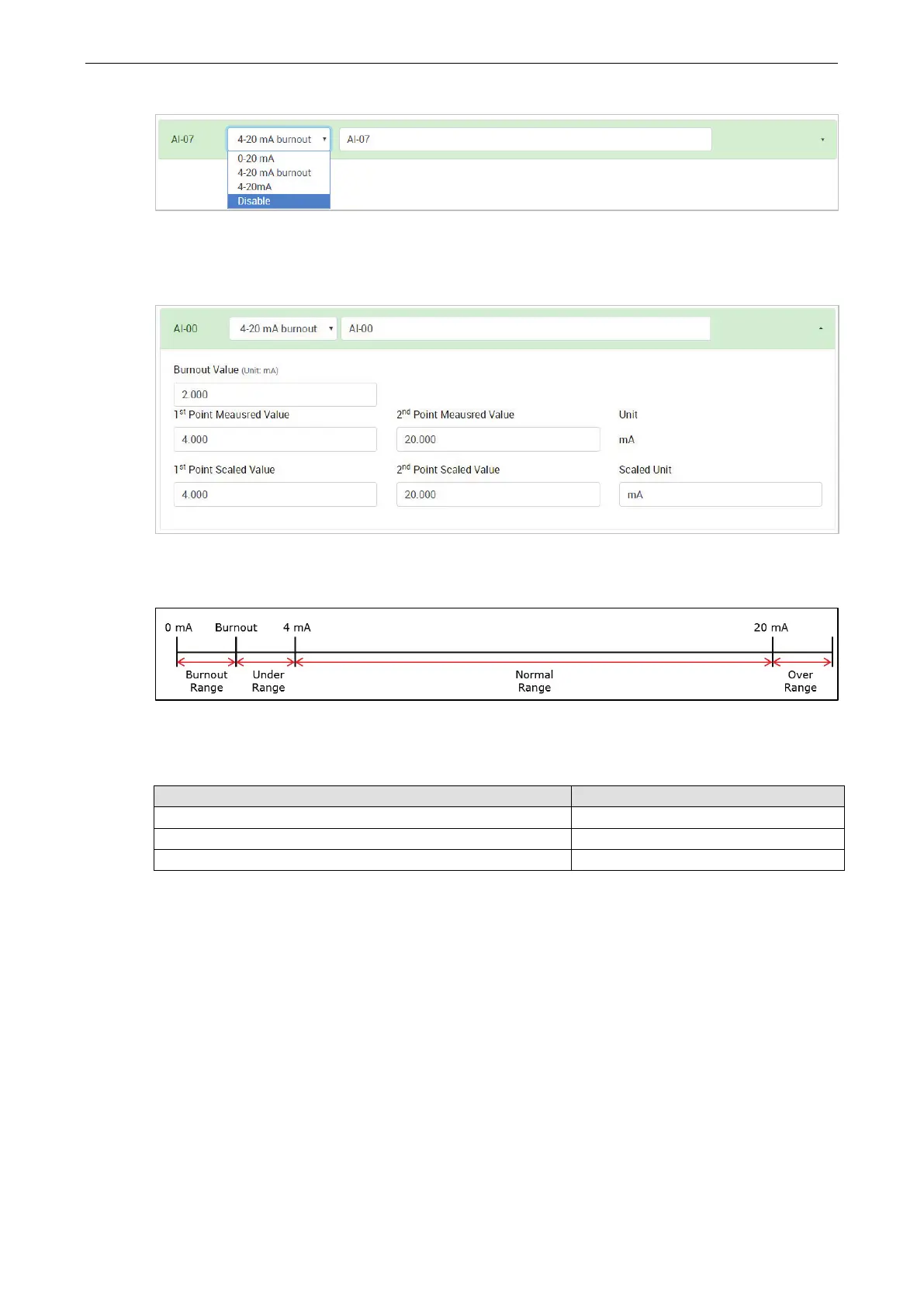

ioThinx 4510 Series Software Tools
4-20
Disable Mode
The AI channel can be disabled. It only allows you to disable channels one-by-one. When a channel has
been disabled, the sample rate of the remaining channels will be increased automatically.
0-20 mA/4-20 mA burnout/4-20 mA/0-10 V/±10 V Mode
Burnout Value (only for 4-20 mA burnout mode): The 420 mA burnout mode is shown in the diagram
below.
The Burnout Value (default = 2 mA) is definable (unit: mA, 0.000 to 4.000). When input values are in the
burnout range, raw data will register as 0000h to indicate that the analog input has burned out. The
definition of raw data can be found in the table below.
Range Modbus Data
0.000 ≤ AI < Burnout Value 0x0000h
Burnout Value ≤ AI ≤ 20.000 mA Raw Data
AI > 20.000 mA 0xFFFFh
