CH 3 PAGE 11
DRIVE LINE
B

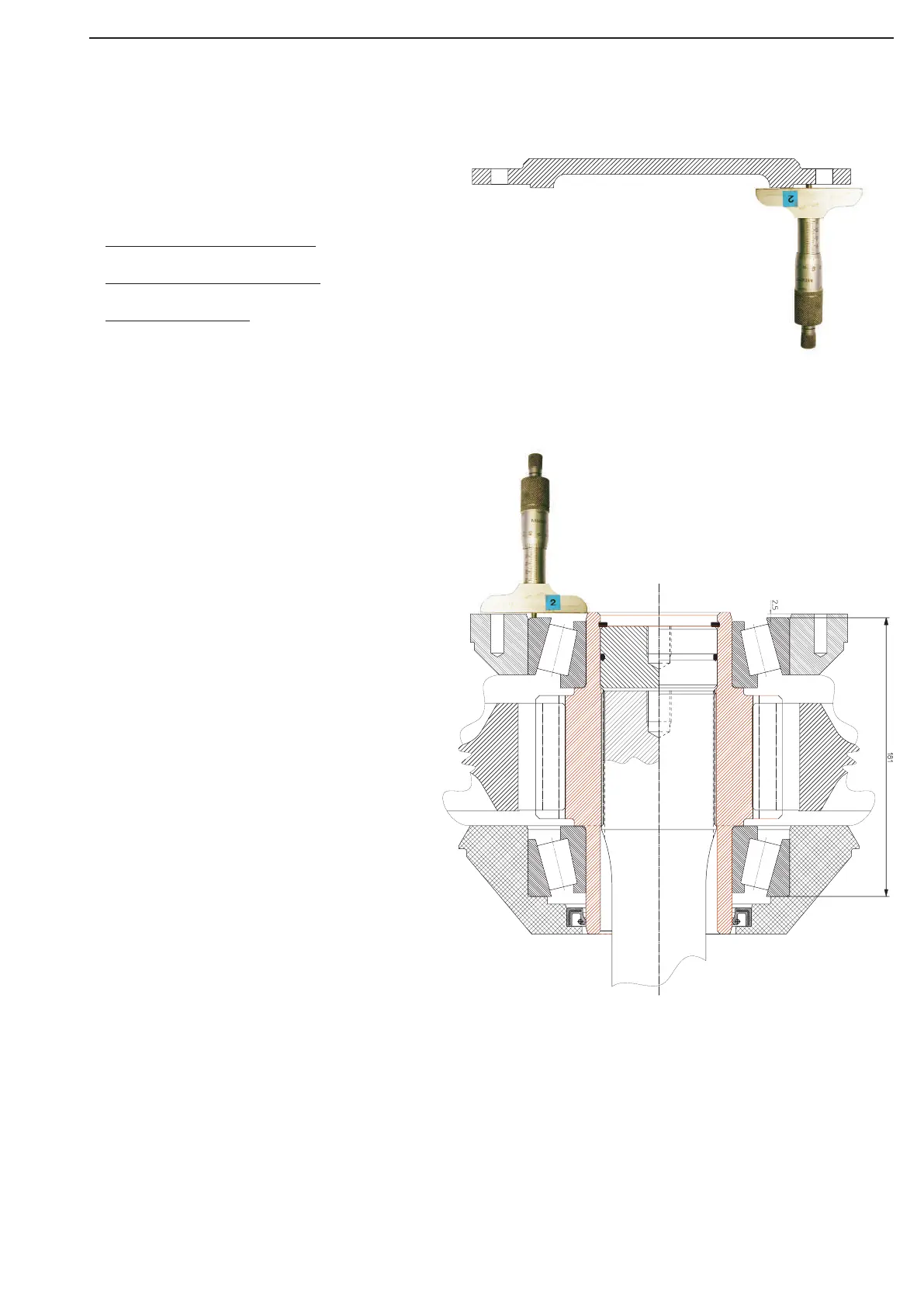

Calculation
Calculation example:
Measure B 2,65 mm
Measure A 2,45 mm
Differance 0,20 mm
Give shims 0,10 mm.
See also the SPI 03/2004
A
