Installing the Ultima XIR Gas Monitor
The Ultima XIR Gas Monitor contains no user- or field-serv-
iceable parts and must be returned to the factory for repair.
Any attempt to open the monitor will damage the unit and
void the warranty.
Under no circumstances should a wrench or pry-bar be
applied to the two legs that support the unit's reflectors dur-
ing installation or removal of the sensor (FIGURE 1-8).
Applying force to the legs can permanently damage the
monitor.
It is recommended that the monitor's environmental guard
be installed on the unit at all times. If the monitor is to be
operated without the guard, frequent checks should be
made to ensure particulate or liquid matter has not collected
on the windows.
• The optional Mounting Bracket (P/N 10047561) can be attached to
the rear holes of the Ultima XE Gas Monitor (FIGURE 1-7).
• The Ultima XIR Gas Sensor is factory-installed on the stainless
steel gas monitor. The Ultima XIR Monitor must be installed with
the XIR sensor in a horizontal position (see FIGURE 1-3) to
prevent the build-up of particulate or liquid matter on the monitor
optical surface.
• The Ultima XIR Gas Sensor is intended for use only on
metal enclosures.
.

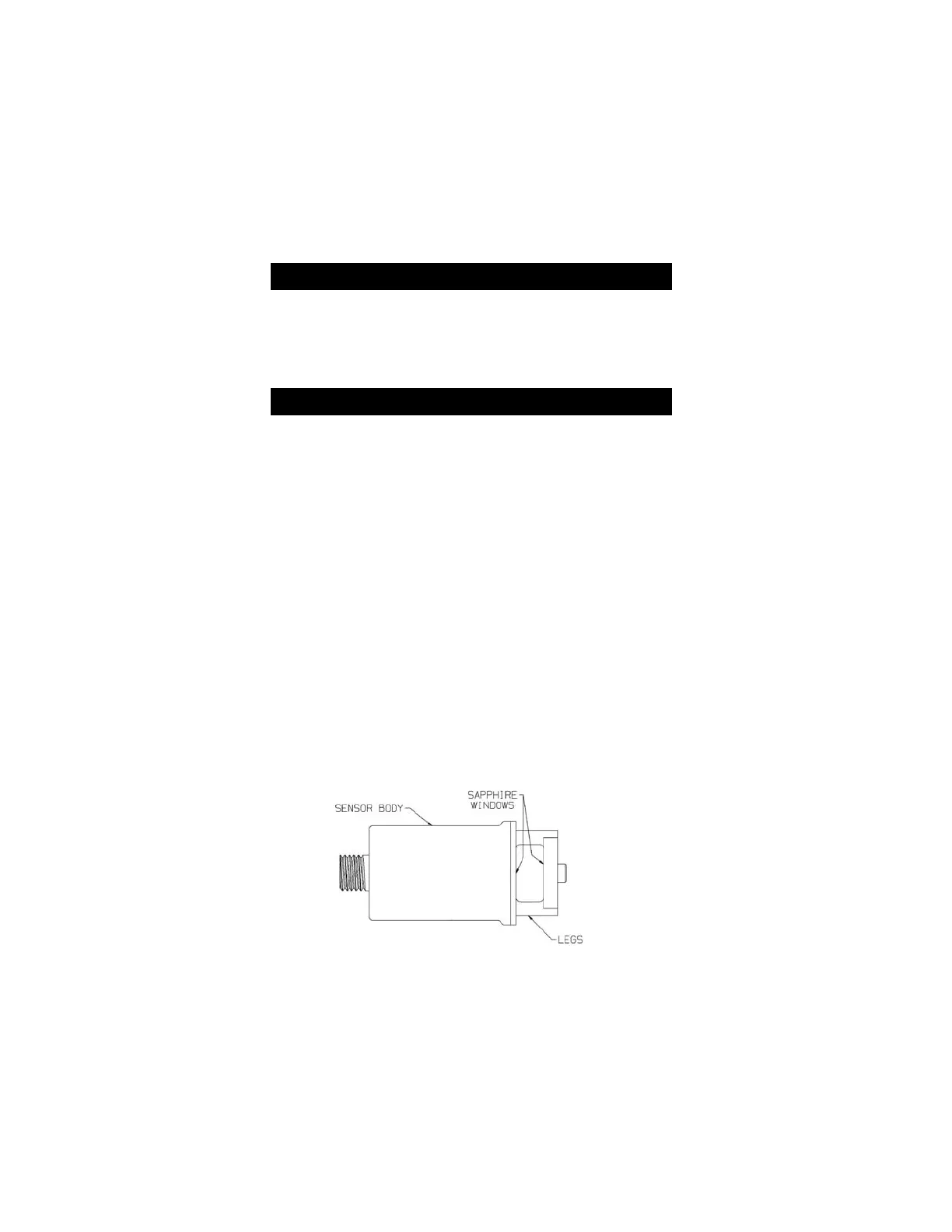

Figure 1-8. Ultima XIR
"
CAUTION
"
WARNING
1-8
