MSA Ultima X Series Installation & Maintenance Instructions

Installing the Ultima X Remote Sensor Module
The Remote Sensor Module is used with the Ultima X Gas Monitor for
installations requiring remote placement of the gas sensor.

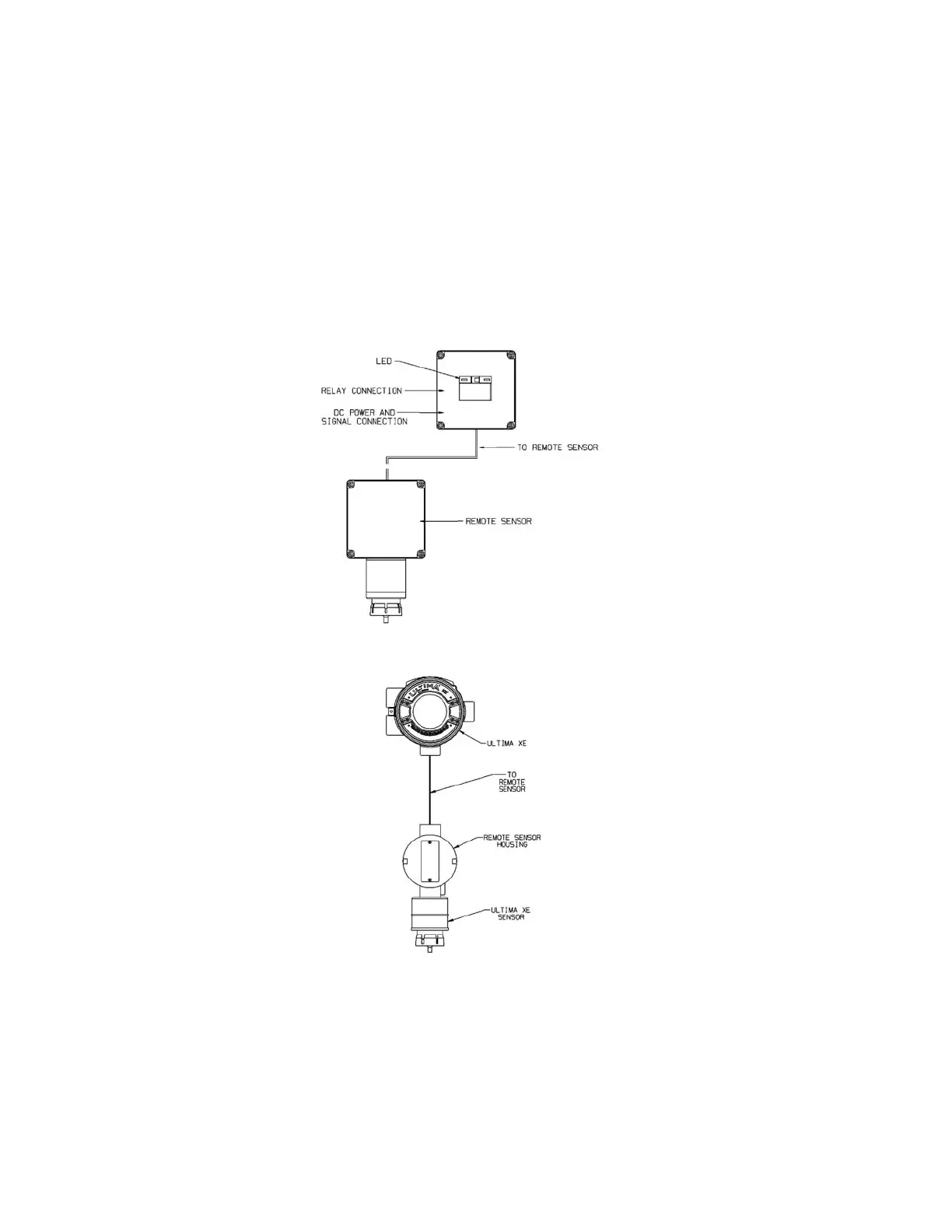

FIGURES 1-18 and 1-19 show the general-purpose and explosion-proof
configurations.
Figure 1-19. Remote Module Explosion-Proof
Ultima X Series Wiring
Figure 1-18. Remote Module General-Purpose
Ultima X Series Wiring
1-20
