MSA Ultima X Series Installation & Maintenance Instructions

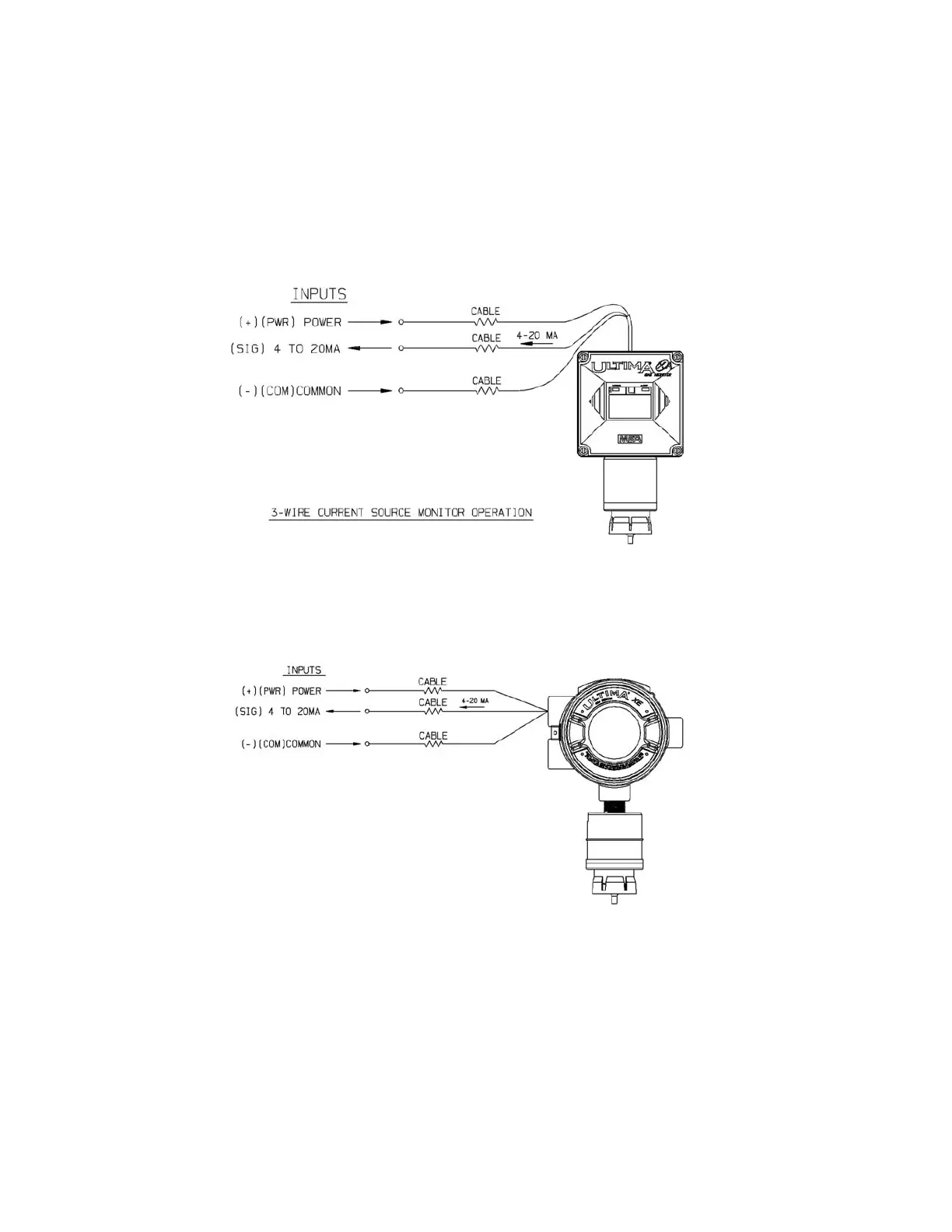

• Three-wire Ultima X Series Monitors operate in the current source
mode (see FIGURE 1-12 for general-purpose) (FIGURE 1-13 for
explosion-proof).
.
.
Figure 1-13. Explosion-Proof Three-Wire Operation
Figure 1-12. General-Purpose Three-Wire Operation
1-15
