© Munters AB, 2020 42
7.2.2.2
Analog Fans

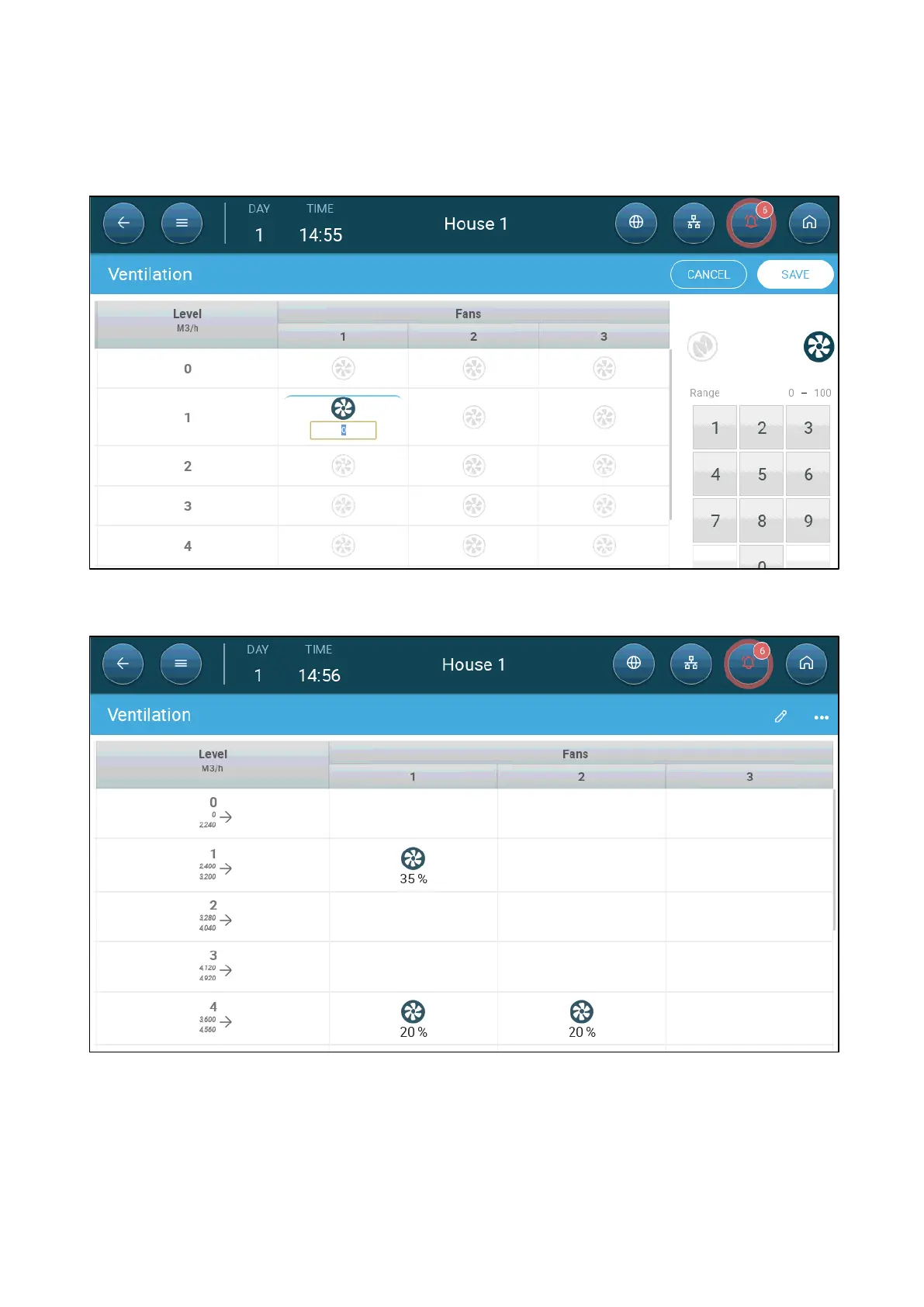

1. Click an analog output-controlled fan. 1) A box appears around the fan. 2) A fan
appears in the upper right.
2. Click on the fan and the Analog Cycle icons.
3. Enter the fan’s output.
At Level 1 (10% output of the total fan capacity), Fan 1 runs at 35% speed. At Level 4 (40% of
the total output), the speed drops to 20% but Fan 2 turns on as well.
