NAiS GT Series User Manual

5-20

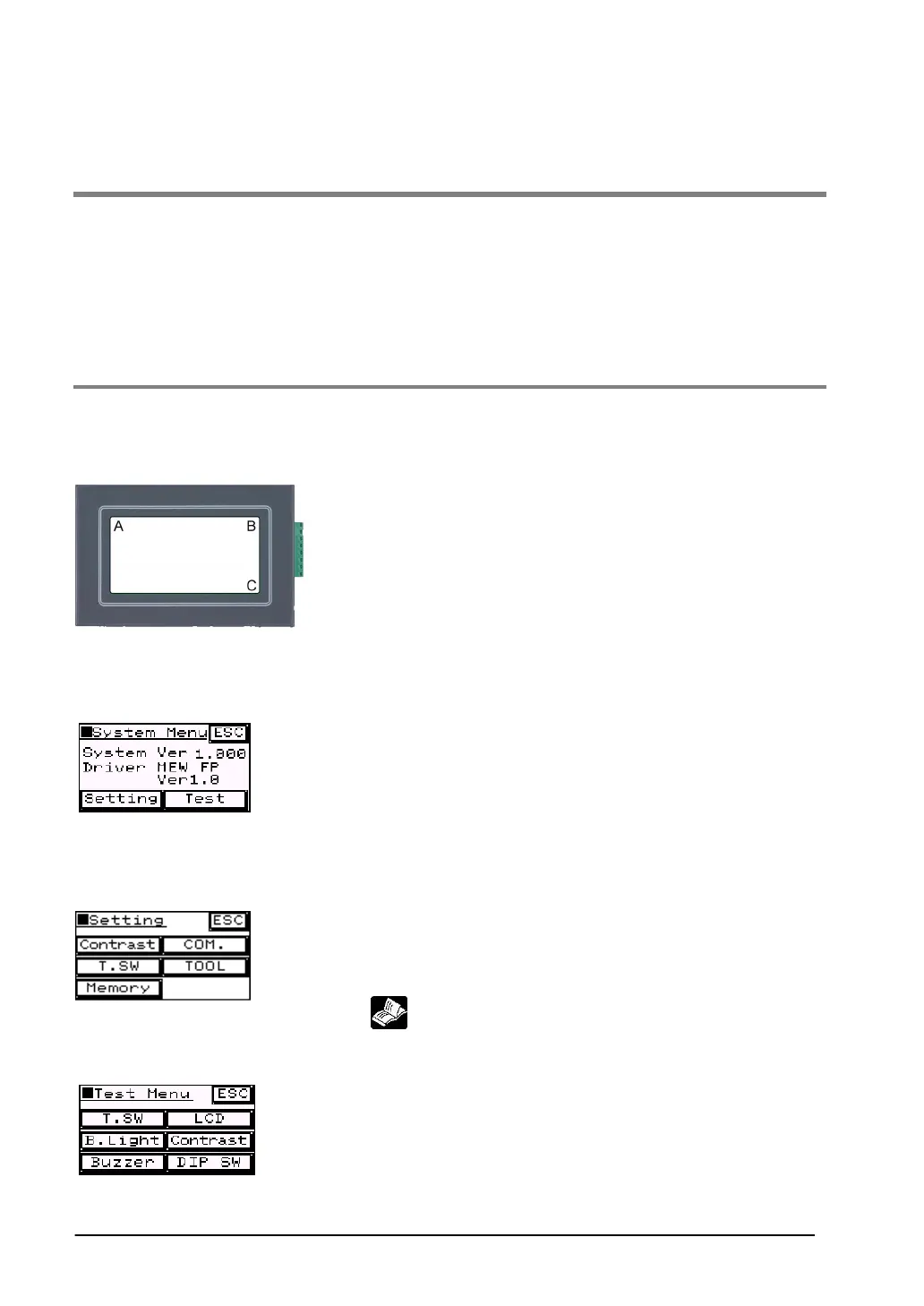

5.3 Entering Configuration Settings from the GT01 and
GT11 Main Unit
What is the System Menu?
The system menu is a dedicated screen on which configuration settings for the GT main unit are entered.
Some of the items that can be specified here can also be set using GTWIN screen creation tool and then
sent to the GT main unit, but others, such as the adjustments to the LCD contrast level, can only be set
using the system menu. This section explains how configuration settings are entered using the system
menu.
5.3.1 Bringing Up the System Menu
The following procedure is used to bring up the system menu. (The following is explained using the
GT01 screens. The design of the GT11 screen differs, but the procedure is same as the following.)
(1) Touch the LCD touch panel simultaneously.
1. Press the upper left corner (area A) for at least two seconds.
2. Next, immediately press the upper right corner (area B) and
lower right corner (area C), in that order.
* Press areas A, B and C, in order, individually. It will not work of
you press them together.
* For vertical type displays, arrange vertically and then use the
order of upper left corner, upper right corner, and then lower
right corner.
* The System Menu does not support vertical type displays. It will
display the same as on the horizontal type.
(2) The initial screen of the system menu is displayed.
“System Ver” indicates the ROM
version of the GT main unit system.
The initial screen of the system menu is displayed on the GT
main unit. Touching either the [Setting] or [Test] key shifts to the
next screen.
Touching the [ESC] key exists the system menu and returns to
the normal operating mode.
(3) Select the mode.
[Setting] Setting mode initial screen
This is where configuration settings for the GT main unit, such
as the contrast, clock, COM. port, TOOL port, and memory, are
specified.
* The GT01 does not support the clock setting.
Reference:
For information on the clock setting of GT11,
<5.4 Entering Configuration Settings from the GT30 Main Unit>
[Test] Test mode initial screen
This is where GT configuration elements such as the touch
switches, backlight, clock, buzzer, LCD, contrast, and memory
are tested.
