1-19

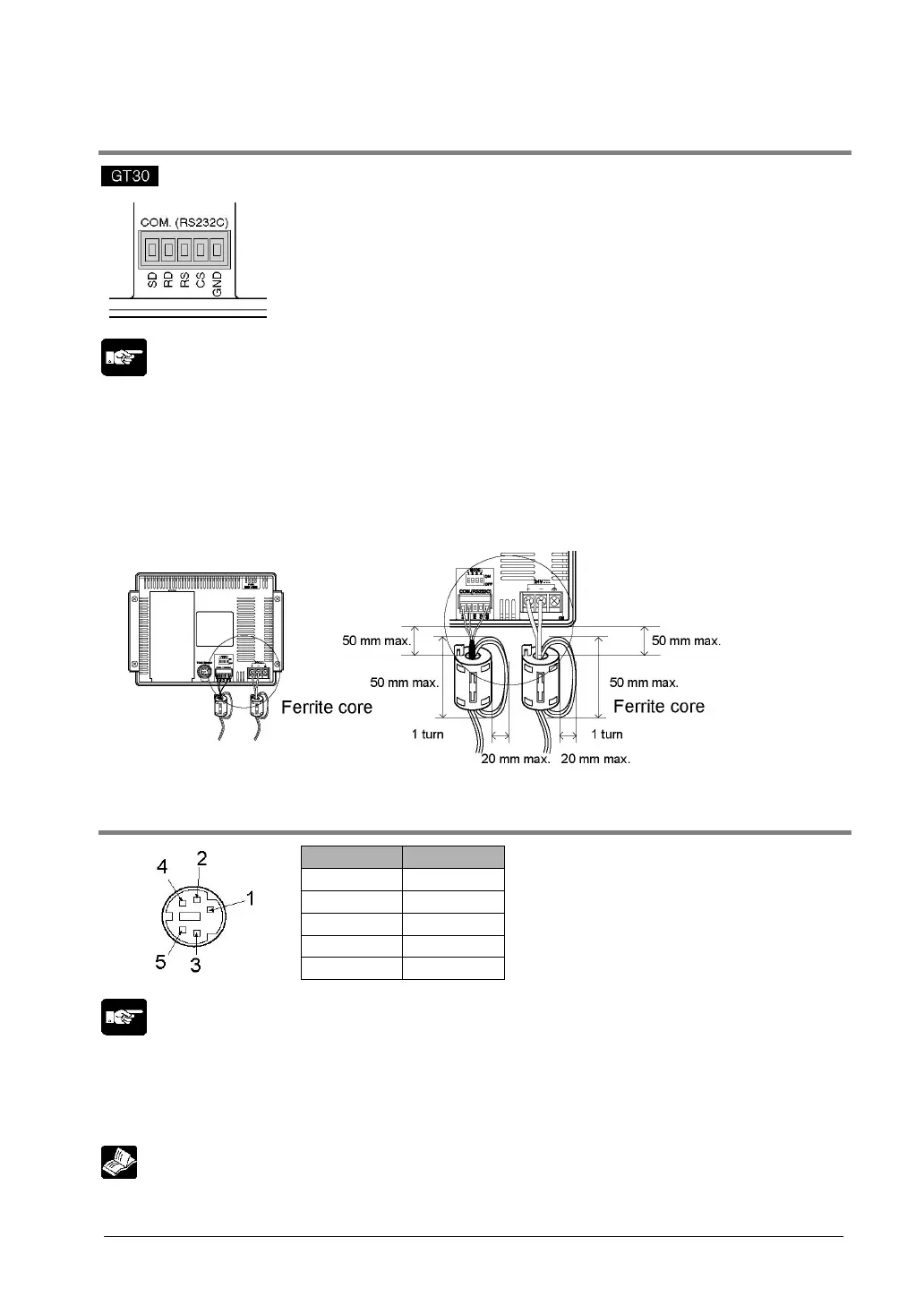

1.5.3 COM. Port (GT30)
Note:
• When connecting the unit to the FP series, there is no need to wire both the RS and CS.
• Make sure that wiring and placement of the cable are performed so that there is no impression of
external noise on the cable and no induction. Also, shielded wiring should be used for cables.
• GT30 conforms to EMC standards EN61000-6-4 and EN61000-6-2 of the European EMC directive
(EMC Directive 89/336/EEC). As a condition of compatible, a ferrite core should be installed when
wiring to the therminal base (Seiwa Electric’s E04RS211132 or equivalent). When installing make sure
that the connection and power cables are not stressed, as this could result in broken connections.
1.5.4 TOOL Port
Pin No. Contents
1SG
2SD
3RD
4N.C.
5(+5V)
Note:
• The +5V of Pin 5 is reserved for the FP Programmer II. It should not be used for any other application.
If using it, there is a restriction on the ambient temperature. The pin 5 of GT01 is N.C.
When handling, make sure that the metal parts of the TOOL port are not stressed excessively.
Reference: For the details on Pin 5, refer to <Chapter 2 Installation and Wiring>
