NAiS GT Series User Manual

4-30
4.1.22 Connecting PLCs by Omron Corporation
SYSMAC C Series, α
αα
α Series, CV Series and CS1 Series
Connection method
SYSMAC C Series (Using Link I/F)

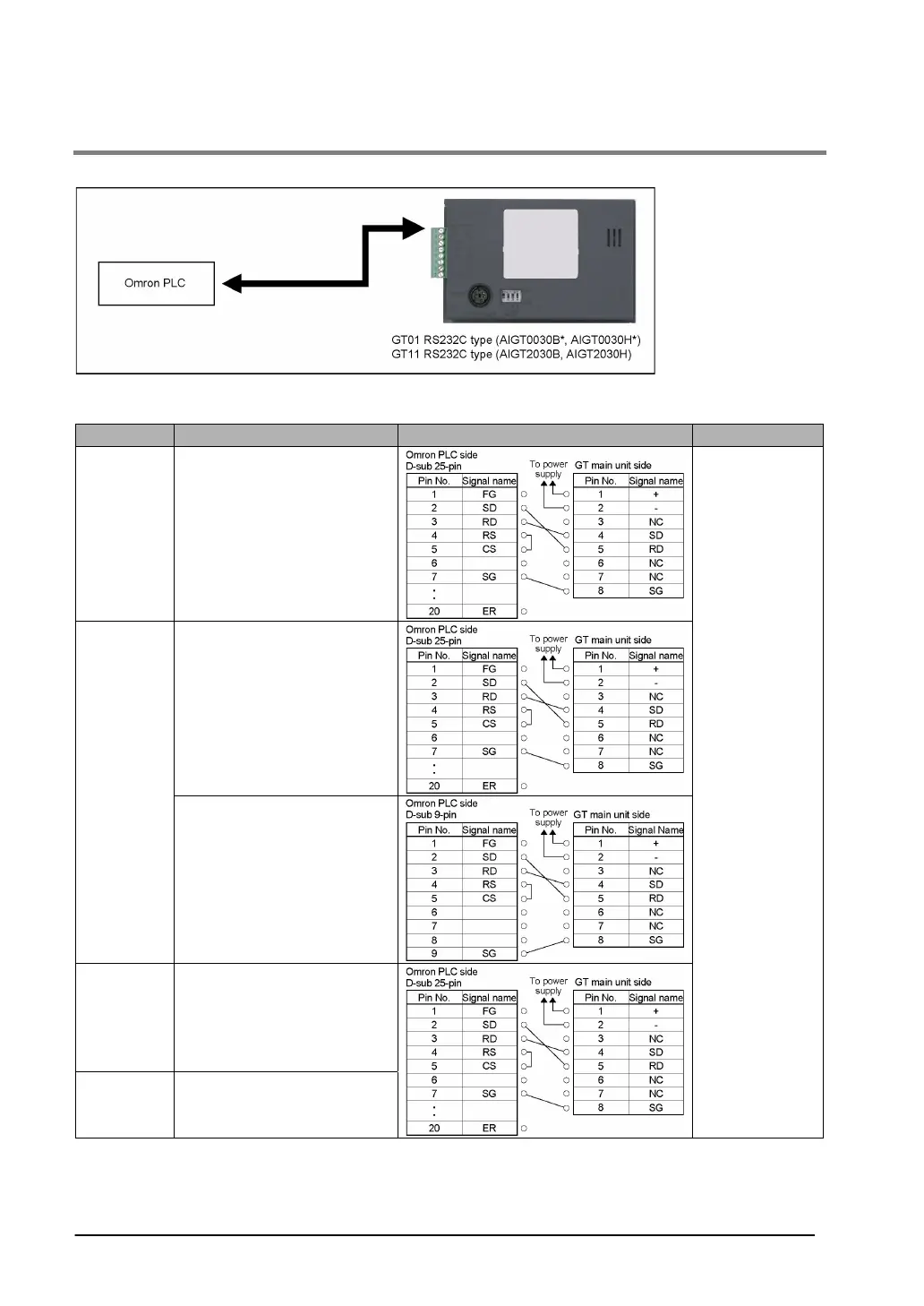

CPU Link I/F Wiring diagram GT series
C200H
C200H-LK201
Note1)
C120-LK201-V1
Note2)
C200H-LK201
Note1)
C120-LK201-V1
Note2)
C200HS
Link I/F on the CPU unit
Note3)
C500
C500F
C1000H
C2000
C2000H
C120-LK201-V1
Note2)
C500-LK201-V1
Note1)
C500-LK203
Note1)
C1000HF C500-LK203
Note1)
GT01, GT11
RS232C type
Note1) Base mounting type
Note2) CPU mounting type
Note3) Connecting to the RS232C port
Note4) Although No. 6 and 7 of the GT11 is RS/CS, they can be used in the above connection.
