NAiS GT Series User Manual

4-31

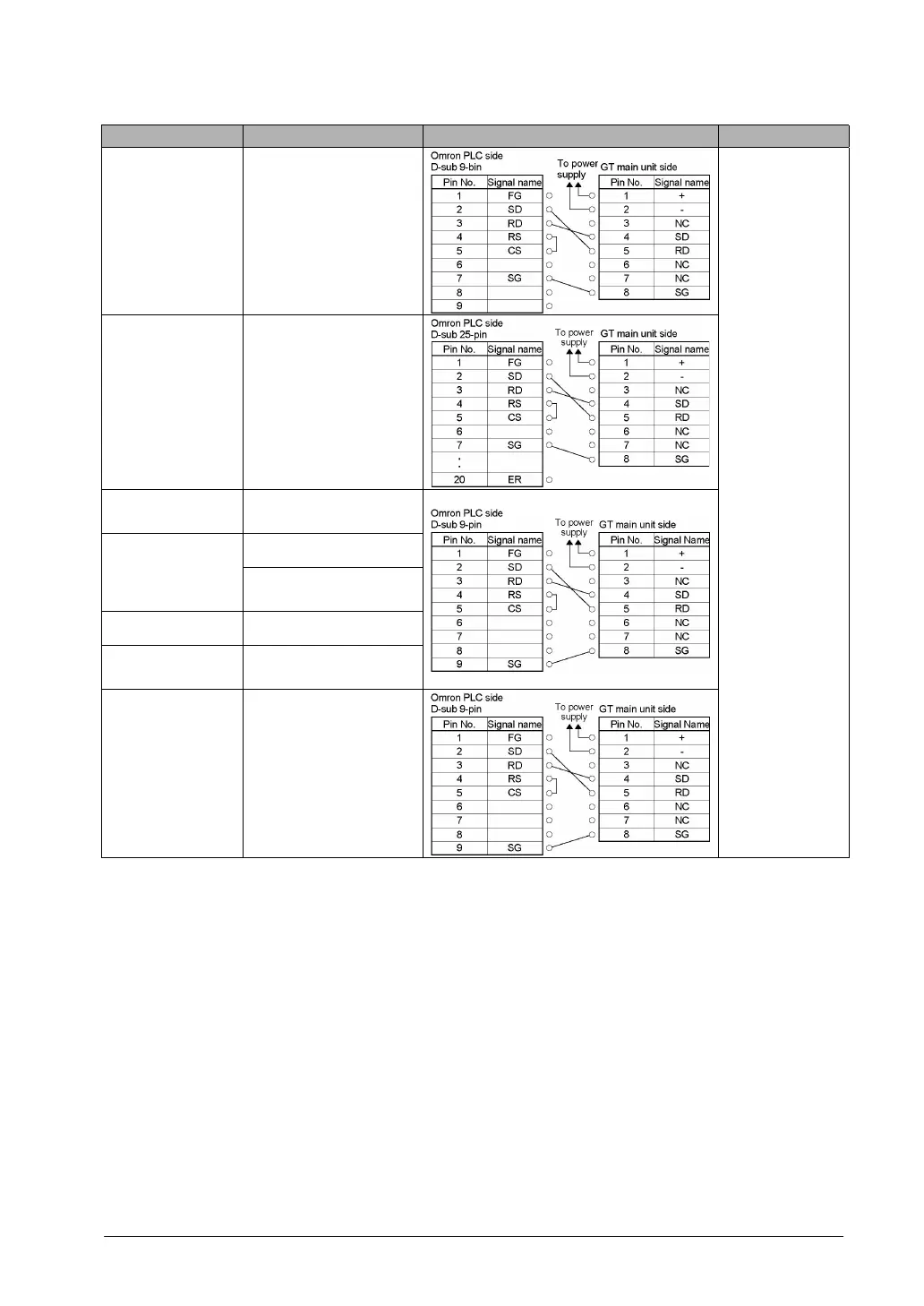

CPU Link I/F Wiring diagram GT series
C20H
C28H
C40H
Link I/F on the CPU
unit
Note3)
C120
C120F
C120-LK201-V1
Note2)
CQM1-CPU42
RS232C port on the
CPU unit
CPM1-C1F01
SRM1-C02
CPM2A
RS232C port on the
CPU unit
CPM1-20CDR-A CPM1-C1F01
CQM1H-CPU21
RS232C port on the
CPU unit
CPM2C
Note4)
Peripheral port on the
CPU unit
GT01, GT11
RS232C type
Note2) CPU mounting type
Note3) Connecting to the RS232C port
Note4) An Omron CS1W-C118 (D-sub 9-pin) or CPM2C-CN111 cable is required.
Note5) Although No. 6 and 7 of the GT11 is RS/CS, they can be used in the above connection.
