W415-2034 / A / 10.18.19
EN
42
electrical information

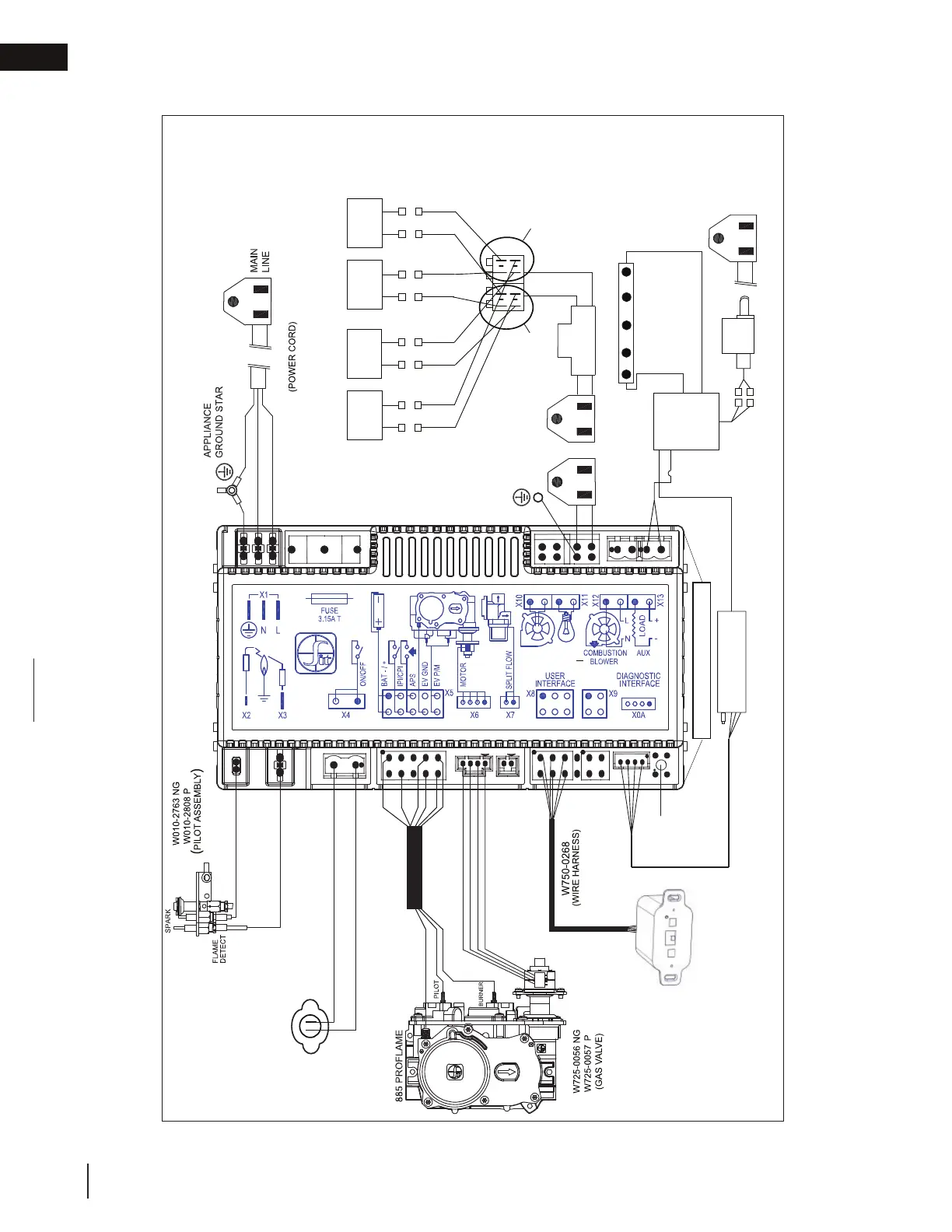

6.8.2 LV62 / LV74 wiring diagram
PILOT
RESET
BUTTON
BATTERY HOLDER COMPLETE
LAMP
COMFORT
FAN
WITH PROGRAM BUTTON
W190-0177 (RECEIVER)
W750-0294
BLUETOOTH
(W190-0090)
W190-0125
LED CONTROLLER
COMMAND
SENSE
LED WIRE
R
LED WIRE
L
TRANSFORMER (W707-0019)
LED LIGHTS
W750-0358
(LIGHT/BLOWER/
PIGTAIL)
W707-0027
ACCENT LIGHTS
W750-0317
(EXTENSION)
W750-0435
BT, WIRE HARNESS
W750-0433
W750-0401
W405-0049
W750-0422
LIGHT WIRE HARNESS
BLUE CONNECTORS
RED CONNECTORS
TERMINAL BUS
W060-0008
W350-0655
GROUND
W660-0204
HIGH LIMIT SWITCH
W750-0424
WIRE HARNESS
W750-0276
WIRE HARNESS
