adjustments

This appliance is equipped with an externally adjustable air shutter that is not preset from factory. Any

adjustments made to the shutter must be done with the burner and all media installed into the appliance. It is

important to operate the appliance and verify that the air shutter is opened to the correct amount to prevent

either ﬂ ame lifting or carbonizing. To open or close the shutter, pull the rod away from the appliance or push the

rod towards the appliance respectively.

Small adjustments on the shutter can have a drastic effect on the ﬂ ame appearance; it is recommended to

adjust the shutter in 1/8” increments.

Regardless of air shutter location, closing the air shutter will cause a more yellow ﬂ ame, but can lead to

carbonization. Opening the air shutter will cause a more blue ﬂ ame, but can cause ﬂ ame lifting from the burner

ports. The ﬂ ame may not appear yellow immediately, allow 15 to 30 minutes for the ﬂ ame colour to be established.

• Air shutter adjustment must be done by a qualiﬁ ed installer.

WARNING

12.0 adjustments

12.1 restricting vertical vents

12.2 venturi adjustment

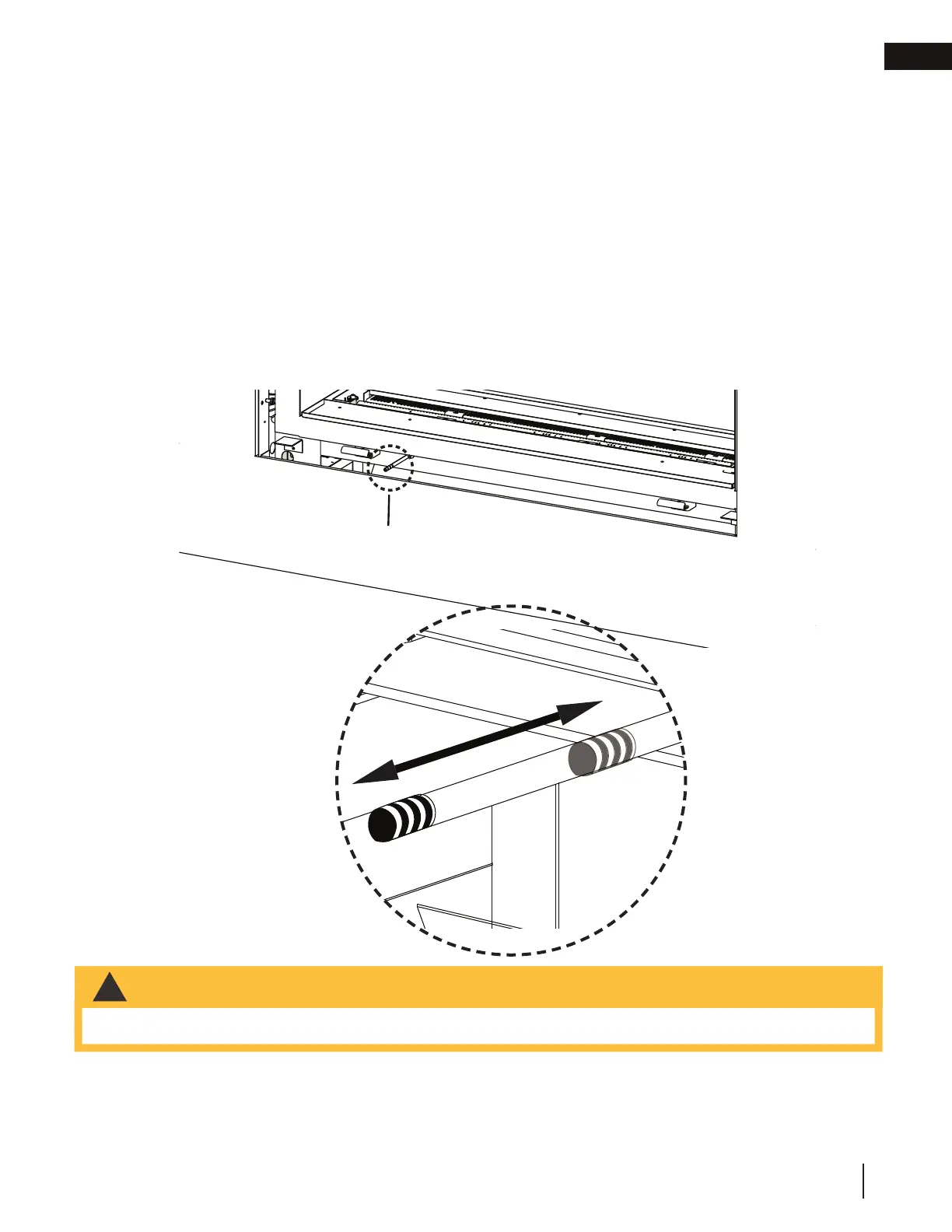

Air Shutter

Adjustment

OPEN

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the vent exit in the

appliance must be restricted using a restrictor vent kit. Refer to the “replacements” section of the owner’s

manual for the appropriate kit. This will reduce the velocity of the exhaust gases, slowing down the ﬂ ame pattern

and creating a more traditional gentle ﬂ ame appearance. Speciﬁ c instructions are included with the kit.
