EN
W415-2034 / A / 10.18.19
29

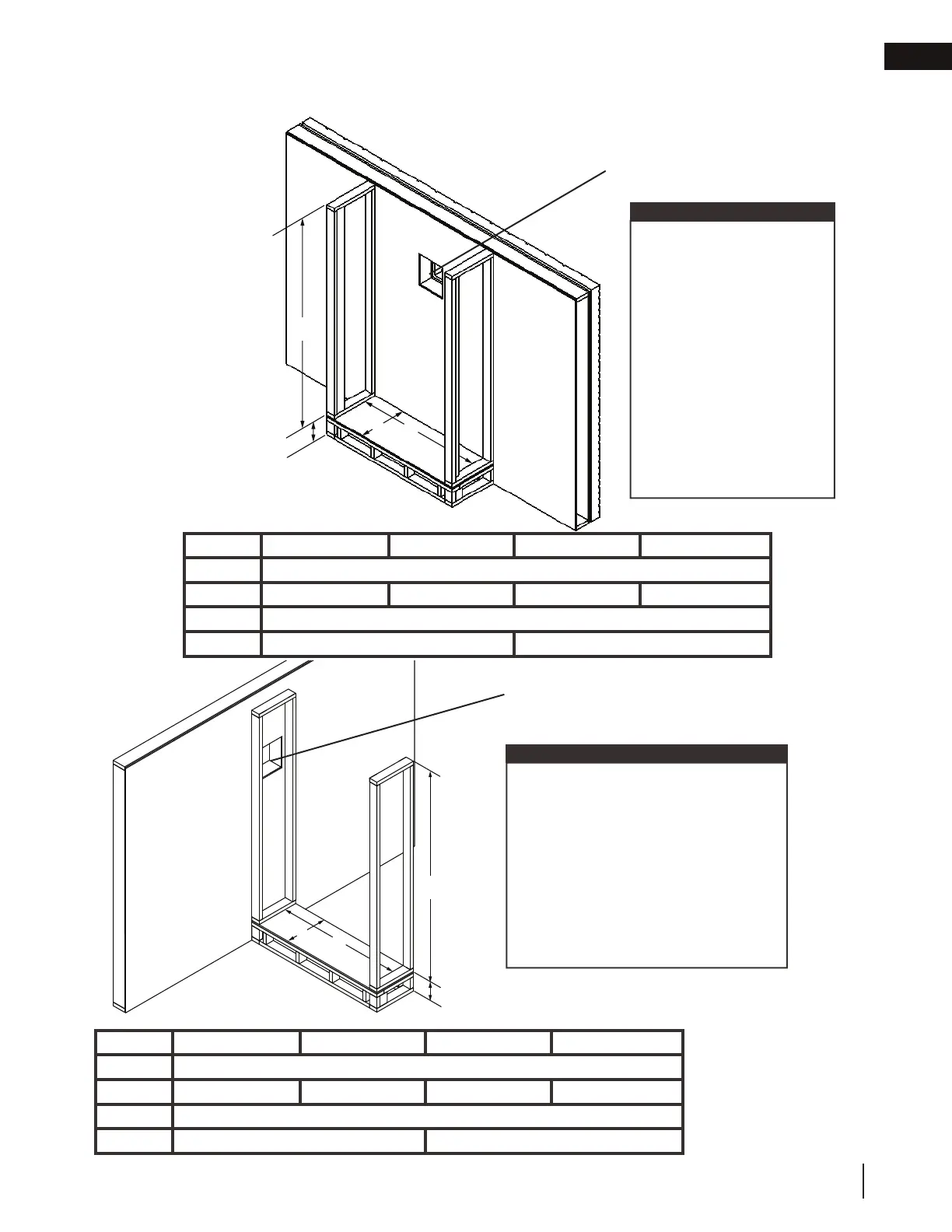

rough framing - before appliance installation
single-sided
see-thru
Before framing your appliance, determine vent requirements before deciding the fi nal location of the appliance.
After rough framing, place the appliance in its fi nal position.
Ref LV38-1 LV50-2 LV62 LV74
E
16 3/16” (41.1cm)
F
53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
J
Optional - Appliance does not need to be elevated above fl oor
*L
73” (185.4cm) 91” (231.1cm)
Ref LV38-1 LV50-2 LV62 LV74
E
20 1/8” (51.1cm)
F
53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
J
Optional - Appliance does not need to be elevated above fl oor
*L
73” (185.4cm) 91” (231.1cm)
E
J
F
E
F
J
Before framing a see-thru appliance, ensure to
install the fi restop fi rst as it will not fi t between
the studs if installed after framing.
Before framing a single-sided appli-
ance, ensure to install the fi restop
fi rst.
L
L
minimum framing
minimum framing
*Minimum enclosure/ceil-
ing height may be higher
depending on venting
confi guration (See
minimum clearance to
combustibles).
note:
The LV series requires a
minimum enclosure/ceiling
height, as illustrated
(dimension L), measured
from the bottom of the
appliance. For temperature
requirements, this area must
be left unobstructed. Some
venting confi gurations that
require more vertical rise will
require a larger enclosure
to provide minimum verti-
cal clearance between vent
pipes and combustibles.
note:
The LV series requires a minimum
enclosure/ceiling height, as illustrated
(dimension L), measured from the
bottom of the appliance. For tempera-
ture requirements, this area must be left
unobstructed. Some venting confi gura-
tions that require more vertical rise will
require a larger enclosure to provide
minimum vertical clearance between
vent pipes and combustibles.
