replacement parts

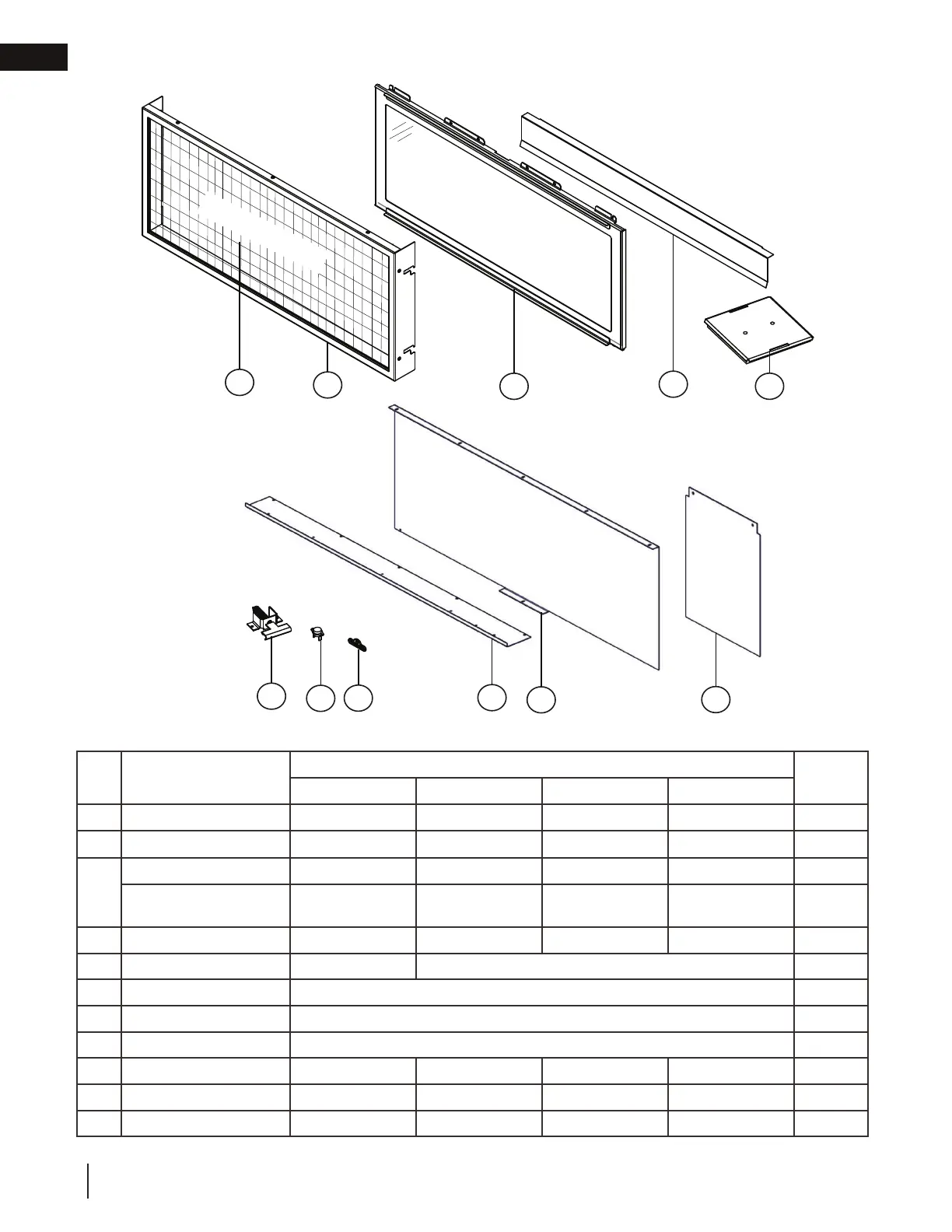

14.1 overview
5
4
SAFETY SCREEN
1
2
3
9
10
11
6
7
8
Items may not appear exactly as illustrated
REF.
#
Description Part Number Stocked
LV38-1 LV50-2 LV62 LV74
1
Safety Screen (Premium)
W565-0279-SER W565-0248-SER W565-0277-SER W565-0276-SER
2
Safety Barrier
W010-4147-SER W010-4146-SER W010-4145-SER W010-4144-SER
Yes
3
Fixed Door Assembly
W010-4198-SER W010-4162-SER W010-4202-SER W010-4090-SER
Yes
Access Door Assembly
(See-thru)
W010-4198-SER W010-4162-SER W010-4202-SER W010-4090-SER
Yes
4
Door Trim
W715-1149-SER W715-1144-SER W715-1124-SER W715-1123-SER
5
Relief Door Assembly
N/A W010-1426
6
Door Latch Assembly
W010-3554
7
High Limit Switch*
W660-0204
8
Napoleon Logo
W385-2010
Yes
9
Media Tray
W710-0104-SER W710-0107-SER W710-0099-SER W710-0098-SER
10
Porcelain End Panel
W475-1031-BK2GL W475-1031-BK2GL W475-1031-BK2GL W475-1031-BK2GL
11
Porcelain Panel (Rear)
W475-1409-BK2GL W475-1419-BK2GL W475-1422-BK2GL W475-1414-BK2GL
*When your appliance is equipped with the optional Dynamic Heat Control System™.

Napoleon Vector Series Specifications

General

Vent Type	Direct Vent
Burner Material	Stainless Steel
Weight	Varies by model
Model	Vector Series
Fuel Type	Natural Gas or Propane
Viewing Area	Varies by model
Glass Type	Ceramic
Ignition System	Electronic Ignition
Dimensions	Varies by model
Warranty	Limited Lifetime Warranty
Remote Control	Standard (eFIRE remote)
