W415-2034 / A / 10.18.19

ﬁ nishing

SAFETY BARRIER

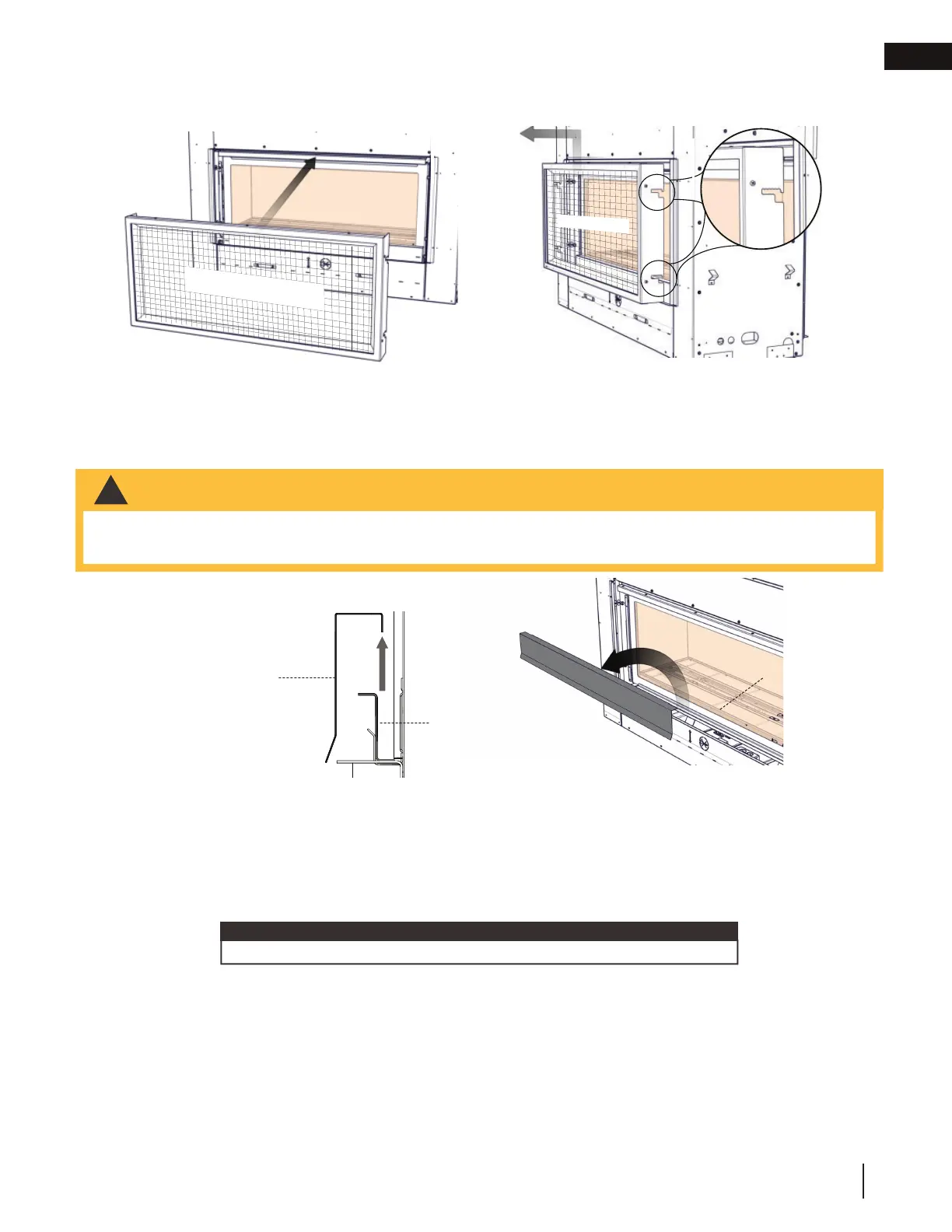

A. To remove the safety barrier from the appliance carefully lift it up and off the shoulder screws.

B. Place the safety barrier onto the appliance by lifting it up and hooking onto the side shoulder screws.

Adjust to ﬁ t snug against the ﬁ nish material. Ensure safety barrier is installed correctly.

11.6 safety barrier installation / removal

• Do not insert ﬁ ngers in the gap between the door and the door frame, or between the spring latches & door.

there is a risk of injury due to the spring mechanism. Do not insert ﬁ ngers in the spring door latch mechanism.

WARNING

Door trim

Side view

Door trim

Door frame

LV38-1 Illustrated

A. Remove the safety screen assembly, refer to the “safety screen installation / removal” section for details

B. Remove the door trim by carefully lifting it up and off from behind the bottom frame of the glass door.

C. For door removal, locate the top and bottom door latches. Pull latches forwards and away to disengage

door latches.

FRONT - ACCESS SIDE

11.7 ﬁ rebox glass door installation / removal

Ensure to leave one hand on the glass door during entire door removal.

note:

D. Tilt the top of the door forwards 90 degrees, then lift it up and out of the door latches.

E. Reverse these steps to re-install the door, ensure the top and bottom door latches are properly

engaged prior to releasing the door.
