EN
W415-2034 / A / 10.18.19
55
fi nishing

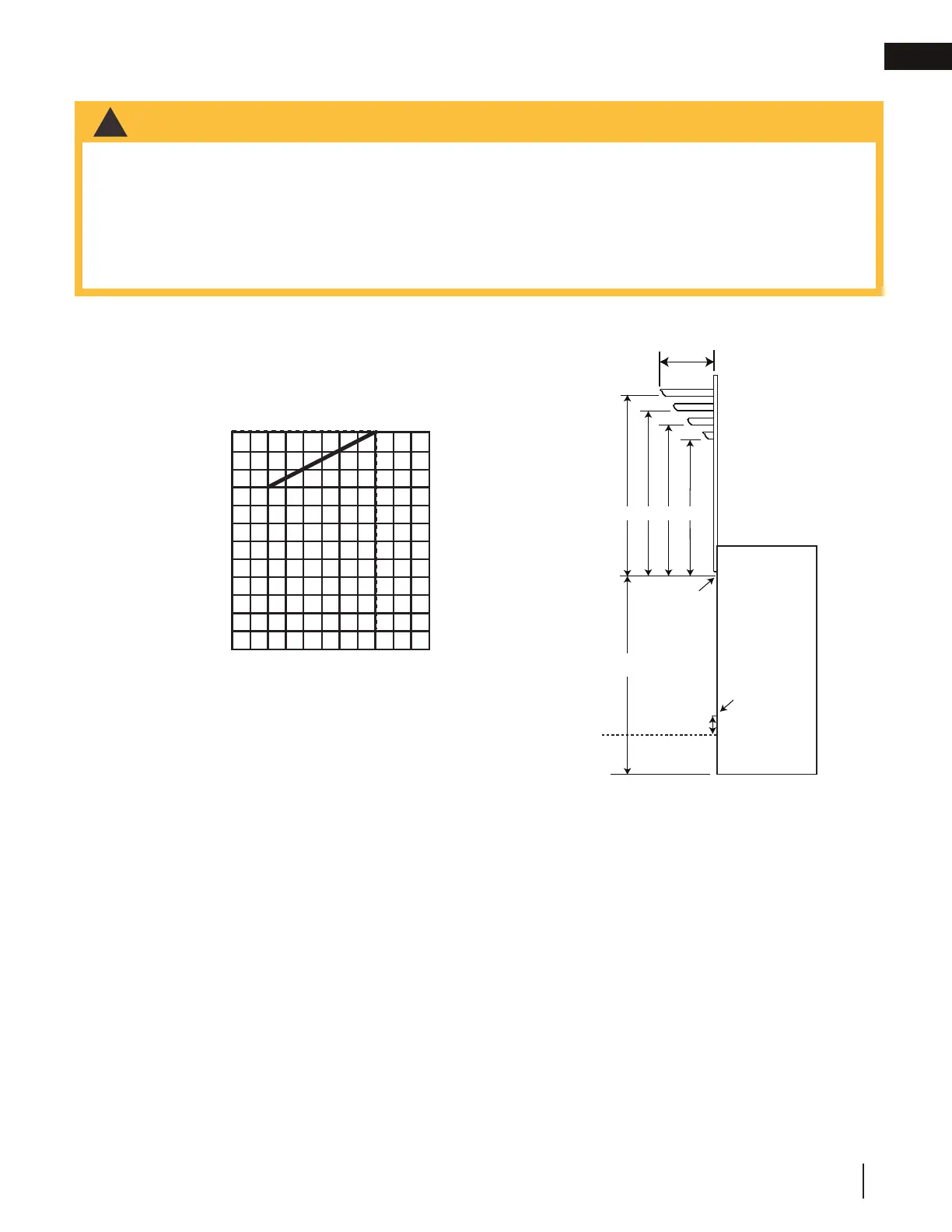

11.4 minimum combustible mantel clearances
0
.
+
/
-
.
:
3
'
4
:
+
2
MANTEL DEPTH
1234
5678
91011
2
4
6
8
10
12
14
16
18
20
22
24
A
Top of
finishing
flange
Bottom of the
appliance
25 11/16" (65.2cm)
Bottom of
fi nishing
fl ange
Optional
hearth
extension
MANTEL HEIGHT
MANTEL DEPTH
Installing a mantel between this appliance and electronics or other materials that may be sensitive to heat, will
reduce the effect of direct heat on them. Ensure mantel is properly sized (width & depth) to suit the object being
mounted above.
Follow mantel height restrictions for proper clearance according to the depth of the mantel.
A non-combustible mantel is considered a non-combustible protrusion, see “fi nishing” for protrusion restrictions.
Combustible mantel clearance can vary according to the mantel depth. Use the graph to determine the clearance
needed.
• Risk of fi re. Maintain all specifi ed air space clearances to combustibles. Failure to comply with these
instructions may cause a fi re or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top,
vent, mantel, front, etc.) are clearly maintained.
• When using paint or lacquer to fi nish the mantel, the paint or lacquer must be heat resistant to prevent
discolouration.
• Installing a television or other electronics above the appliance may cause discolouration, melting, or damage
to the electronics. Use clearances as guidelines and refer to your TV manufacturer’s instructions for further
information.
!
WARNING
2" (51mm)
