W415-2034 / A / 10.18.19

maintenance

13.6 LED replacement

This appliance comes equipped with an LED strip. If in the event the LED strip needs to be replaced, follow these

instructions.

A. Turn off all electrical supply.

B. Remove the safety screen and glass door, refer to the “safety barrier installation / removal” and “door

installation / removal” sections for details.

C. Remove the media tray and burner assembly, refer to the “burner removal” section for details.

D. Unplug the LED strip from the control module.

E. Remove the LED glass by removing the screws securing the LED frame in place, then lift it up and out of

the appliance.

F. Remove the LED strip by removing the four securing screws, replace and reinstall components.

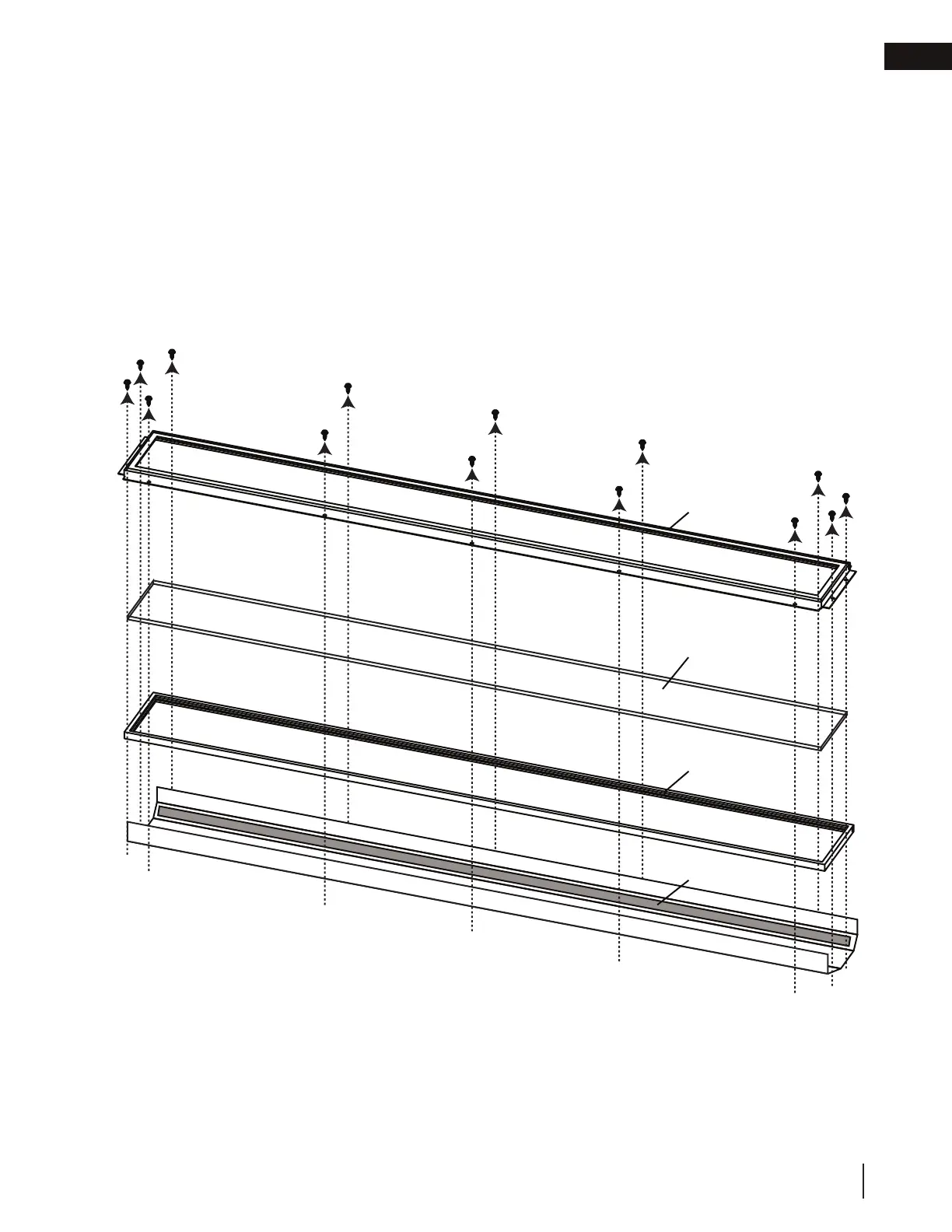

LED GLASS

LED FRAME

LED GASKET

LED STRIP

LV38-1 Illustrated
