Napoleon Vector Series - LV38; LV50-2 Schéma de Câblage

W415-2034 / A / 10.18.19
115
information électriques
FR
PILOT
RESET
BUTTON
BATTERY HOLDER COMPLETE
LAMP
COMFORT
FAN
WITH PROGRAM BUTTON
W190-0177 (RECEIVER)
W660-0204
HIGH LIMIT SWITCH
W750-0294
BLUETOOTH
(W190-0090)
W190-0125
LED CONTROLLER
COMMAND
SENSE
LED WIRE
8
LED WIRE
MV
TRANSFORMER (W707-0019)
LED LIGHTS
W750-0358
(LIGHT/BLOWER/
PIGTAIL)
W707-0019
W750-0429
W750-0423
ACCENT LIGHTS
W750-0424
WIRE HARNESS
W750-0276
WIRE HARNESS
W750-0317
(EXTENSION)
W350-0655
W405-0049
W750-0435
BT, WIRE HARNESS
W750-0433
W750-0401
GROUND

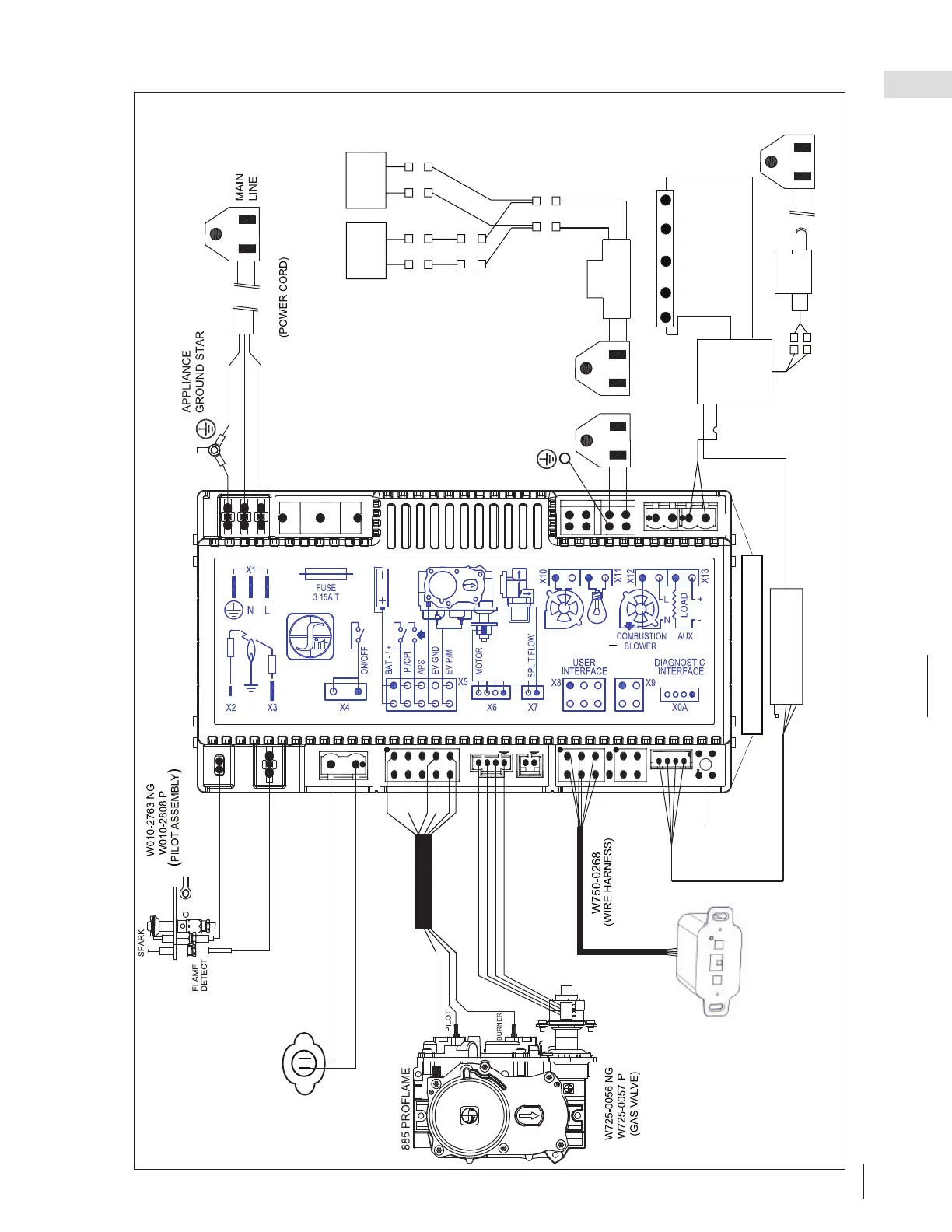

6.8.1 LV38 / LV50-2 schéma de câblage
